Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ
The RFL-C8000XZ/RFL-C10000XZ/RFL-C12000XZ(XC)/RFL-C12000TZ(TC)/RFL-C15000TZ
continuous fiber laser uses the RFL-QD output optical cable, and the external dimensions of the output
optical cable head are shown in Figure 3(b).
The RFL-C20000TZ continuous fiber laser uses the RFL-QP output optical cable, and the external
dimensions of the output optical cable head are shown in Figure 3(c).
(a) RFL-HQBH
(b) RFL-QD
(c) RFL-QP

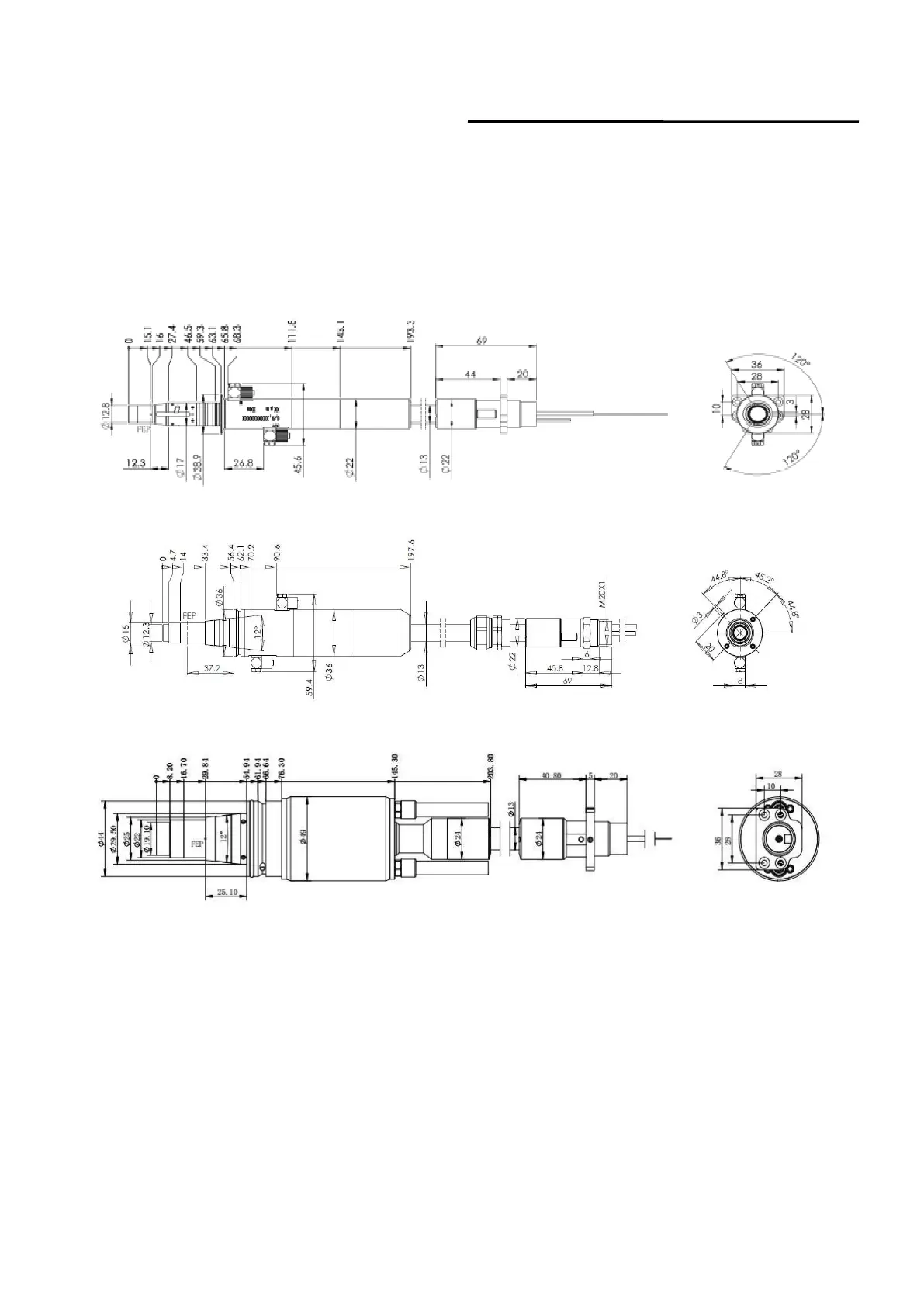

Figure 3 External dimensions of the output optical cable head
Note: The dimensions in the above diagram are in the unit of millimeter (mm).
Before the laser works, make sure that the two copper contacts (Interlock pins) on the output head
are shorted, otherwise the laser will not work properly. Before installing the output cable into the
processing head, the lens of the output cable must be inspected. If the output cable lens is dirty, the lens
must be cleaned. It is forbidden to disassemble the output lens by anyone other than staff in Raycus,
otherwise the warranty will be invalidated.
