2.7Typicalsystems

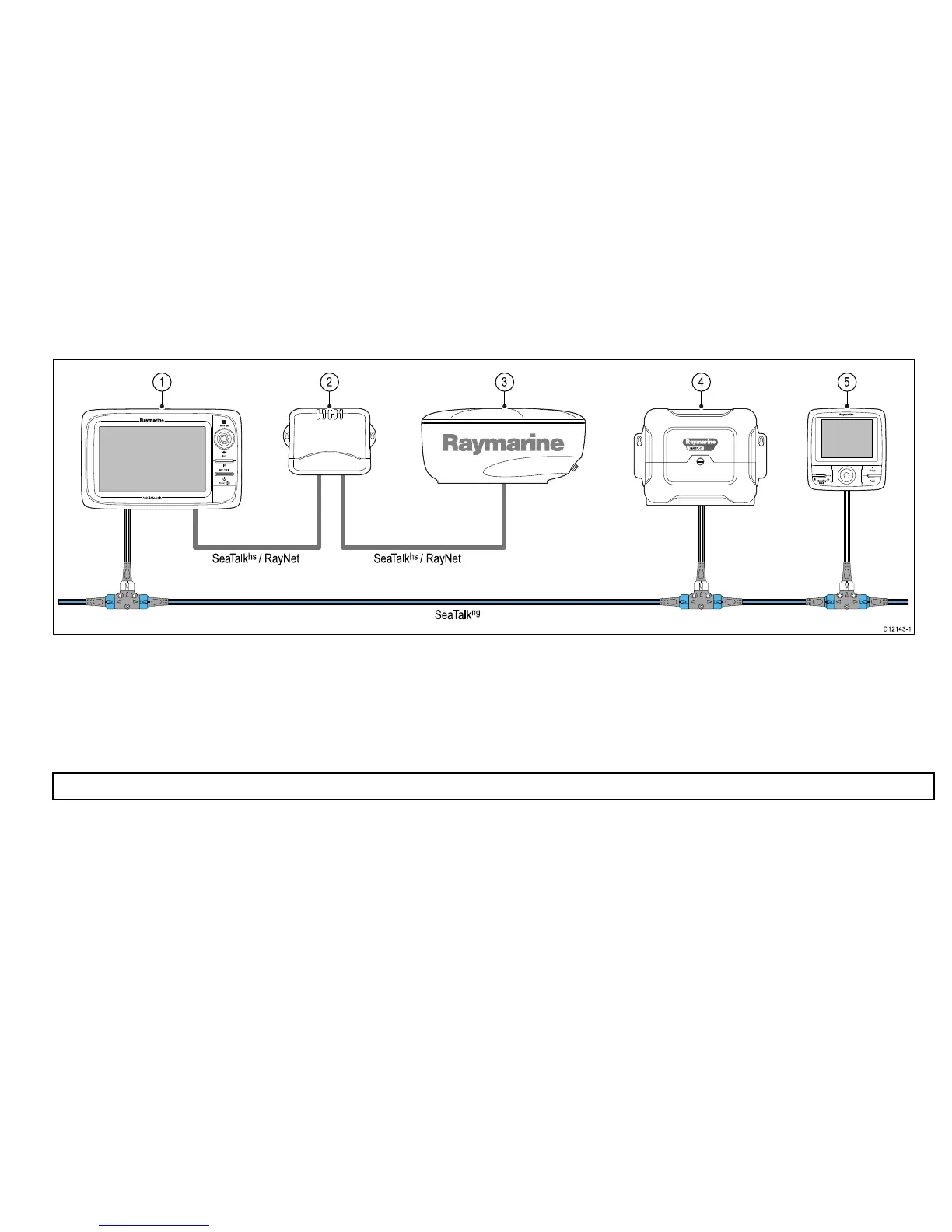

Example:Basicsystem
SMARTPILOT
D12 14 3-1
1 2 3 4 5
SeaTalk
ng
SeaTalk
hs
/ RayNet SeaTalk
hs
/ RayNet
1.Multifunctiondisplay.
2.Raymarinenetworkswitch.
3.Digitalradomescanner.
4.SPXcoursecomputer.
5.Pilotcontroller.
Note:AnetworkswitchisonlyrequiredifmorethanonedeviceisconnectedusingSeaTalk
hs
/RayNet.
