Raymarine e7 Installation Instructions

3.5GPSconnection
ThemultifunctiondisplayincludesaninternalGPSreceiver.Itcan
alsobeconnectedtoanexternalGPSreceiver,usingSeaT alk
ng
orNMEA0183.

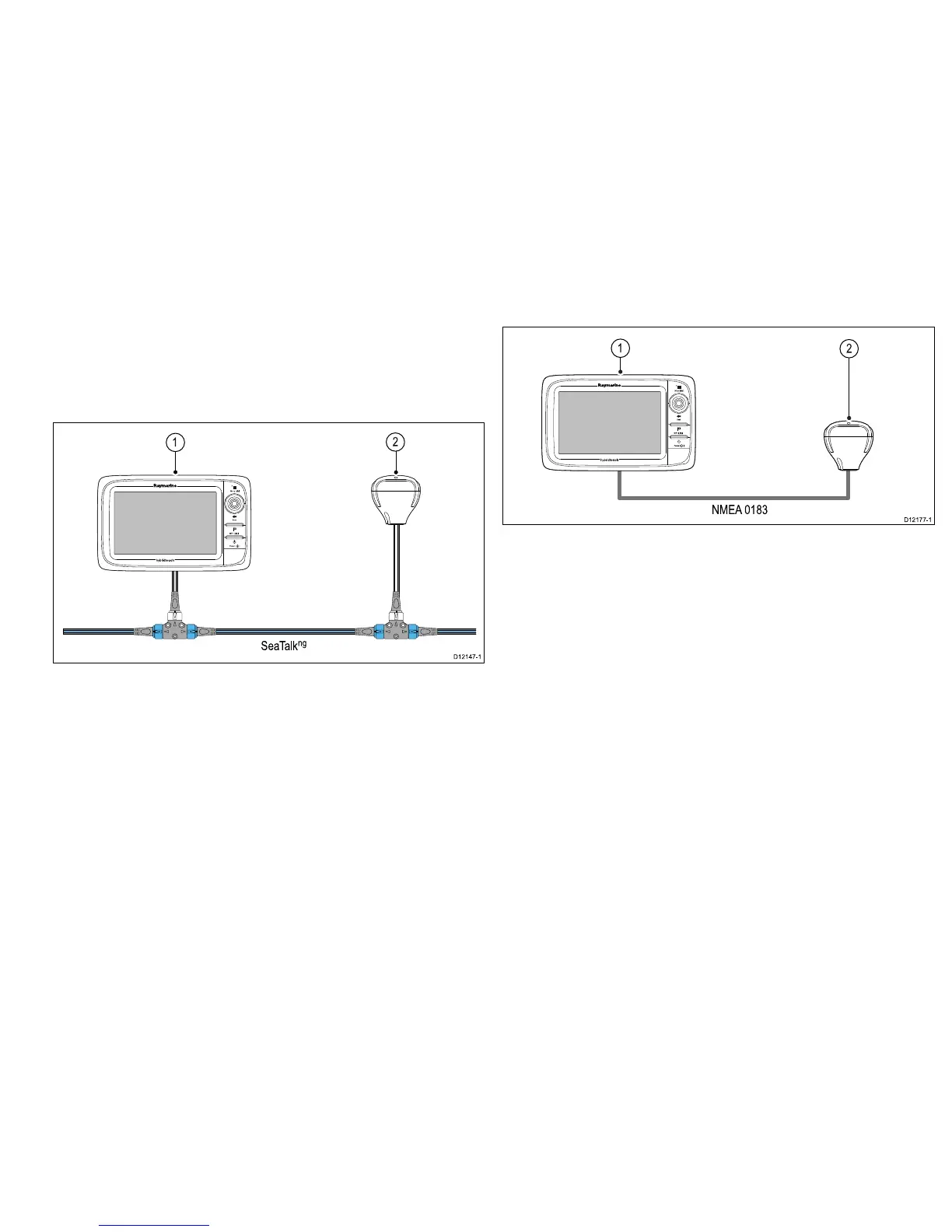

GPSconnection—SeaTalk
ng
D12 14 7-1
SeaTalk
ng
2
1
1.Multifunctiondisplay.
2.SeaTalk
ng
GPSreceiver(forexample,RS130).
GPSconnection—NMEA0183
D12 17 7-1
NMEA 0183
2
1
1.Multifunctiondisplay.
2.NMEA0183GPSreceiver(forexample,RS125).
Cablesandconnections49

Raymarine e7 Specifications

General

Display Size	7 inches
Display Resolution	800 x 480 pixels
Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX6
GPS	Integrated 50 channel GPS
Networking	NMEA 2000, Wi-Fi, Bluetooth
Cartography	Navionics, C-MAP
Operating Temperature	-25°C to +55°C (-13°F to +131°F)
Storage Temperature	-30°C to +70°C (-22°F to +158°F)
Weight	1.25 kg (2.75 lbs)
