Raymarine e7 Installation Instructions

3.9SeaTalkconnection

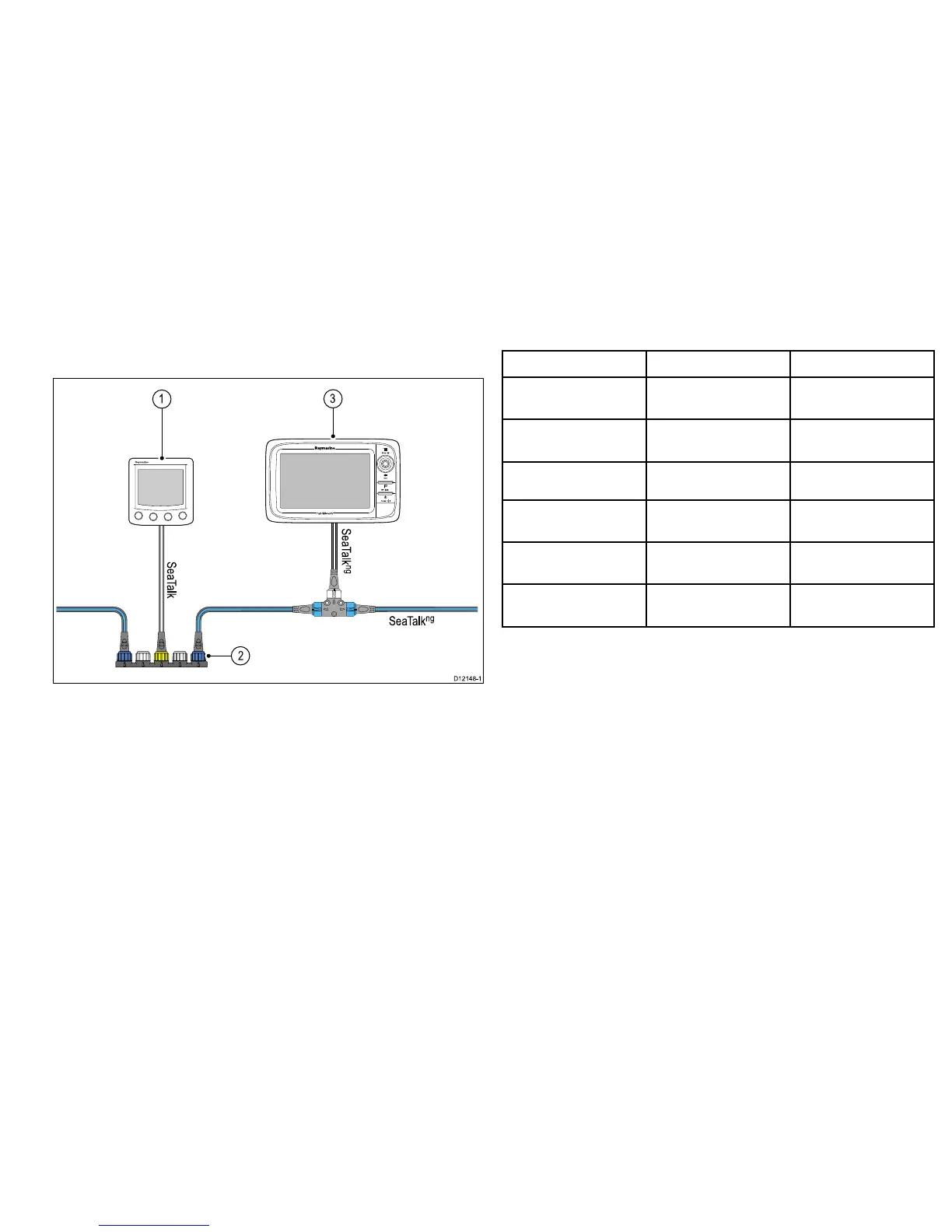

YoucanconnectSeaTalkdevicestoyourmultifunctiondisplayusing
theoptionalSeaT alktoSeaTalk
ng
converter.
D12 14 8-1
SeaTalk
ng
SeaTalk
1
2
SeaTalk
ng
3
1.SeaTalkdevice.
2.SeaTalktoSeaTalk
ng
converter.
3.Multifunctiondisplay.
SeaTalkaccessories
SeaTalkcablesandaccessoriesforusewithcompatibleproducts.
DescriptionPartNoNotes
NMEA/SeaTalk
converter
E85001
3m(9.8ft)SeaTalk
extensioncable
D285
5m(16.4ft)SeaTalk
extensioncable
D286
9m(29.5ft)SeaTalk
extensioncable
D287
12m(39.4ft)SeaTalk
extensioncable
E25051
20m(65.6ft)SeaTalk
extensioncable
D288
Cablesandconnections55

Raymarine e7 Specifications

General

Display Size	7 inches
Display Resolution	800 x 480 pixels
Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX6
GPS	Integrated 50 channel GPS
Networking	NMEA 2000, Wi-Fi, Bluetooth
Cartography	Navionics, C-MAP
Operating Temperature	-25°C to +55°C (-13°F to +131°F)
Storage Temperature	-30°C to +70°C (-22°F to +158°F)
Weight	1.25 kg (2.75 lbs)
