Raymarine e7 - Connections Overview; Power Connection

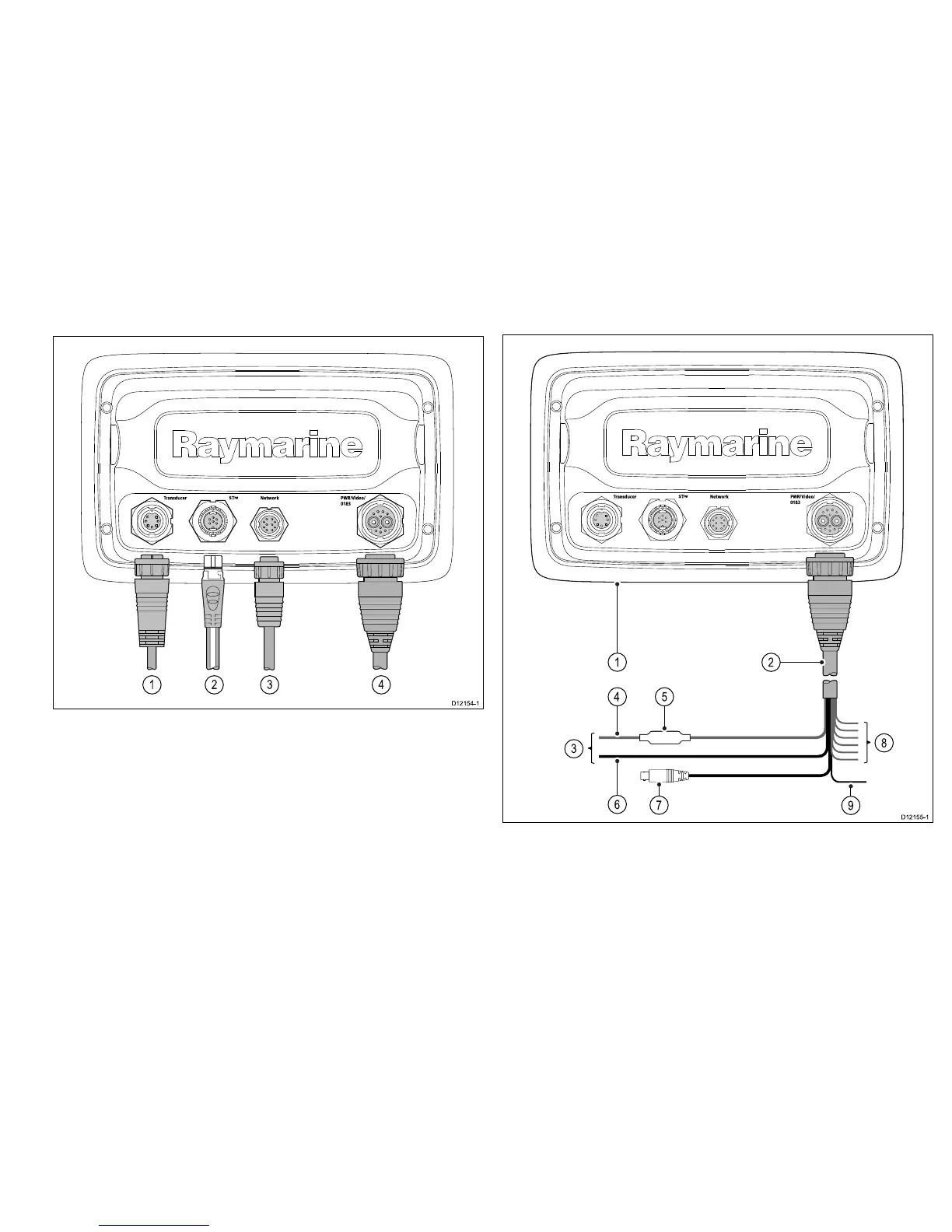

3.2Connectionsoverview
D12 15 4-1
1 2 3 4
1.Sonartransducer(“D”modelsonly).
2.SeaTalk
ng
.
3.Network(forSeaT alk
hs
connectionsviaRayNetcables).
4.Power,data,andcompositevideoinput.
3.3Powerconnection
D12 15 5-1
8
3
1
6
4 5
2
7
9
1.Multifunctiondisplay.
2.Poweranddatacable.
3.Connectionto12Vpowersupply.
