Raymarine e7 Installation Instructions

3.11NMEA2000connection
ThedisplaycanreceivedatafromNMEA2000devices(e.g.data
fromcompatibleengines).TheNMEA2000connectionismade
usingSeaTalk
ng
andappropriateadaptorcables.
YoucanEITHER:
•UseyourSeaT alk
ng
backboneandconnecteachNMEA2000
deviceonaspur,OR
•connectthedisplayonaspurintoanexistingNMEA2000
backbone.
Important:Youcannothave2backbonesconnectedtogether.

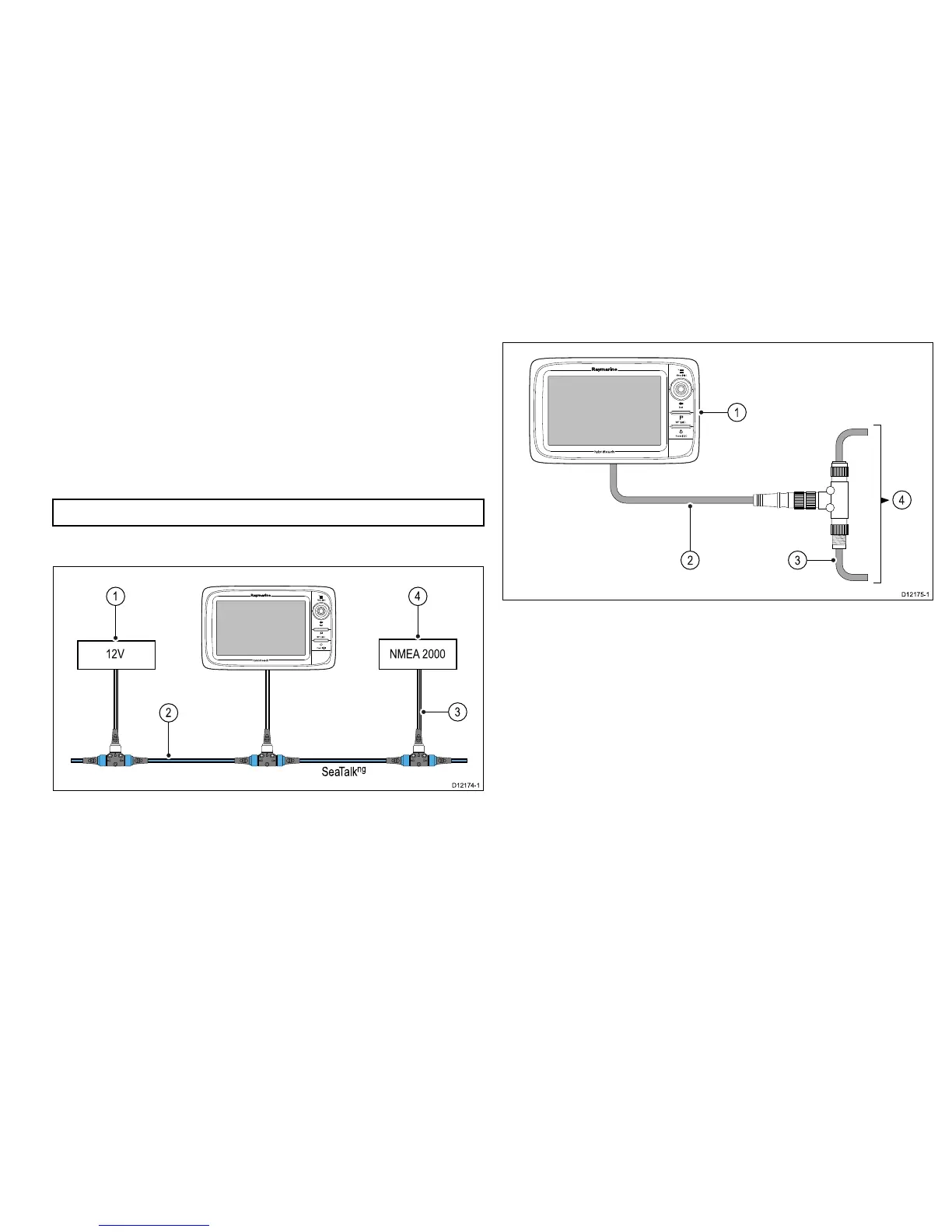

ConnectingNMEA2000equipmenttotheSeaTalk
ng
backbone
NMEA 200012V
D12 17 4-1
1
2
4
3
SeaTalk
ng
1.12Vsupplyintobackbone.
2.SeaTalk
ng
backbone.
3.SeaTalk
ng
toDeviceNetadaptorcable.
4.NMEA2000equipment.
ConnectingthedisplaytoanexistingNMEA2000(DeviceNet)
backbone
D12 17 5-1
32
4
1
1.Multifunctiondisplay.
2.SeaTalk
ng
toDeviceNetadaptorcable.
3.DeviceNet
ng
backbone.
4.NMEA2000equipment.
Cablesandconnections59

Raymarine e7 Specifications

General

Display Size	7 inches
Display Resolution	800 x 480 pixels
Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX6
GPS	Integrated 50 channel GPS
Networking	NMEA 2000, Wi-Fi, Bluetooth
Cartography	Navionics, C-MAP
Operating Temperature	-25°C to +55°C (-13°F to +131°F)
Storage Temperature	-30°C to +70°C (-22°F to +158°F)
Weight	1.25 kg (2.75 lbs)
