Raymarine e7 - Parts Supplied

2.10Partssupplied
D12 17 0-1
1
2
8
3
4
5
7
9
6

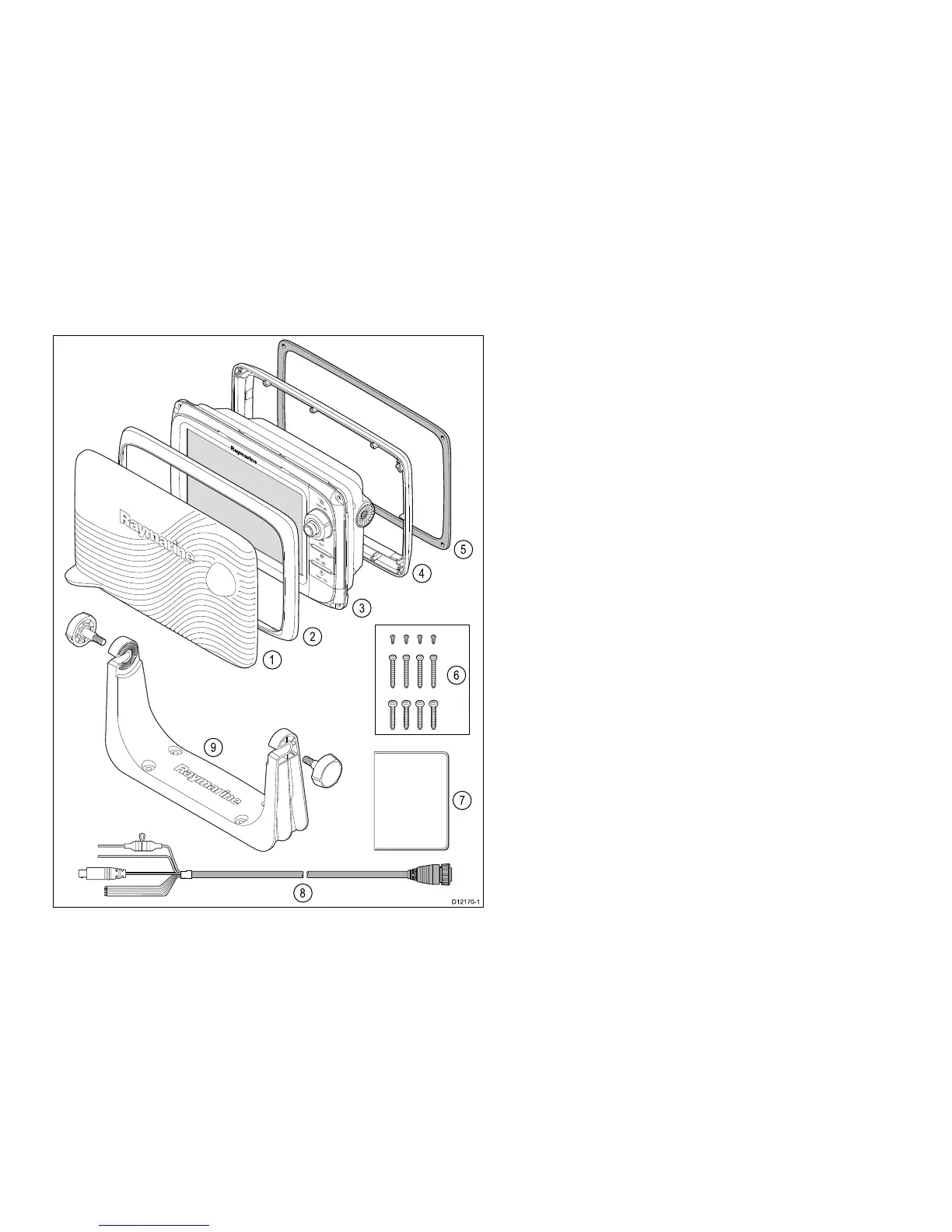

1.Suncover.
2.Frontbezel.
3.Multifunctiondisplay.
4.Rearbezel(requiredfortrunnionbracketmounting).
5.Gasket(requiredforushmounting).
6.Screwpack,includes:
•4xrearbezelxingscrews.
•4xunitmountingscrews(forushmounting).
•4xunitmountingscrews(fortrunnionbracketmounting).
7.Documentationpack,includes:
•MultilingualCD.
•Installationinstructions.
•Quickreference.
•Mountingtemplate.
8.1.5m(4.9ft)poweranddatacable.
9.Trunnionbracket.
