8-6 HSB Series Color LCD Display
Selecting the
Display Unit
Location

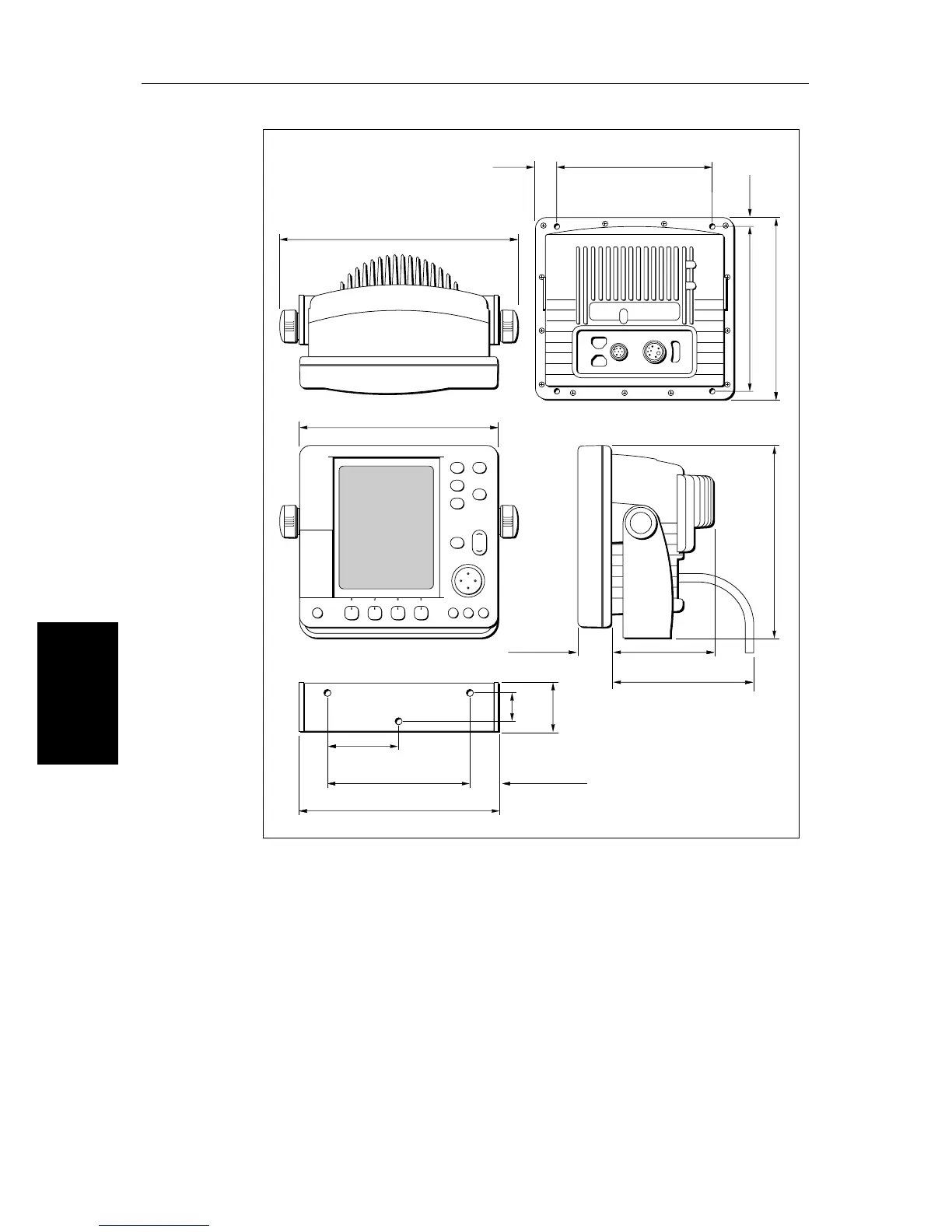

Figure 8-3: 7” LCD Color Display Dimensions
DISPLAY
GAIN
VRM/EBL
MULTI
MARKS
ALARMS
RANGE
ENTER CLEAR MENU
POWER
Weight: 7.7 lbs (3.5 Kg)
Compass Safe Distance: 39 in (1 m)
10.51 in (267 mm)
0.95 in
(24.3 mm)
6.89 in (175 mm)
0.4 in
(10 mm)
7.3 in (185 mm)
8.1 in (205.2 mm)
8.8 in (223.6 mm)
3.15 in
(80 mm)
6.3 in (160 mm) 1.28 in (32.5 mm)
8.85 in (225 mm)
1.3 in
(33.5 mm)
2.1 in
(53.5 mm)
1.42 in (36 mm)
4.53 in (115 mm)
8.5 in (217 mm)
6.9 in (176 mm)
cable cleareance
D5063-1
