Chapter 8: Installation 8-7
Selecting the
Display Unit
Location

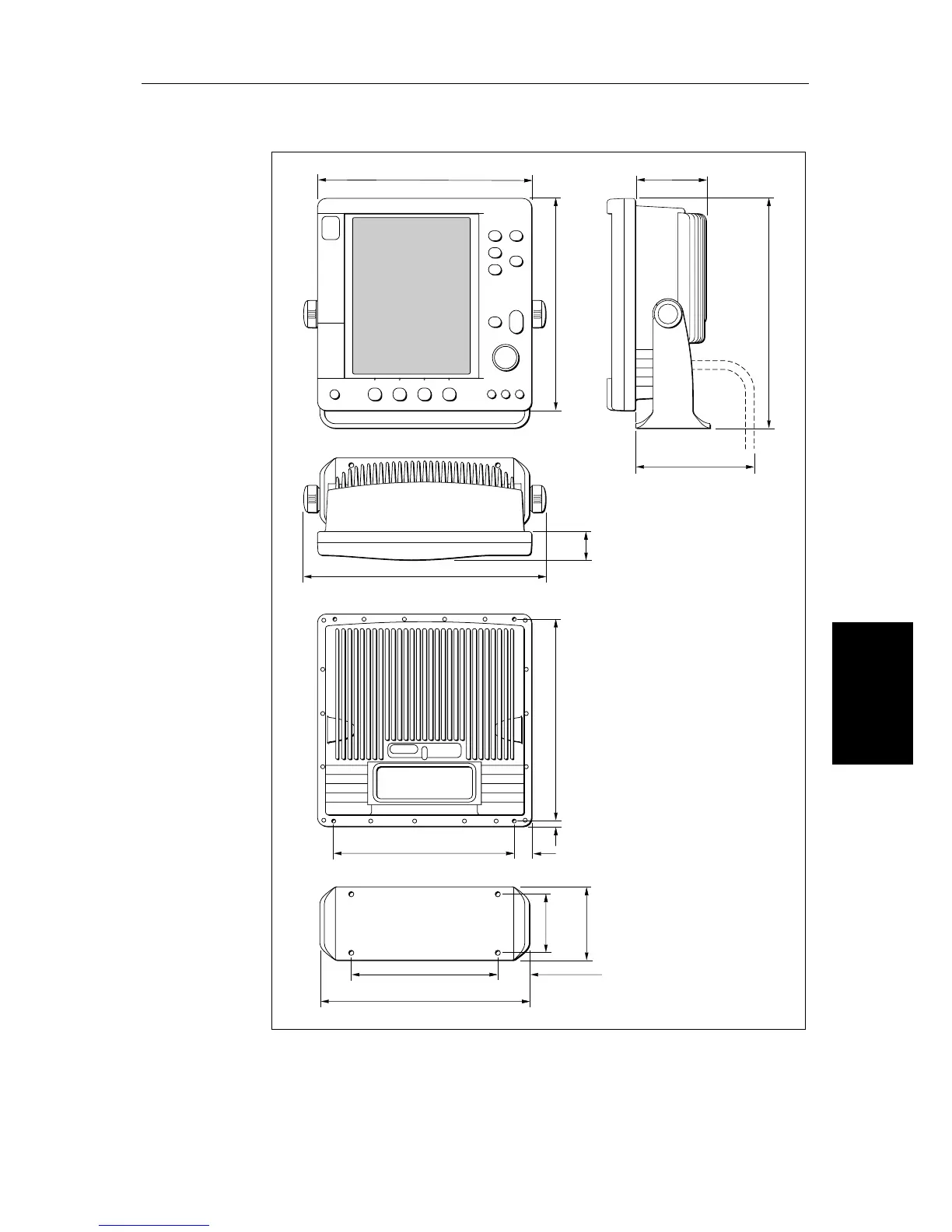

Figure 8-4: 10.4” LCD Color Display Dimensions
D5066-1
11.5 in (292 mm)
3.82 in (97 mm)
6.38 in (162 mm)
cable clearance
Weight: 12.65 lbs (5.75 kg)
Compass Safe Distance: 39 in (1 m)
12.9 in (328 mm)
9.7 in (246 mm) 0.87 in (22.1 mm)
7.88 in (200 mm) 1.7 in (43 mm)
11.26 in (286 mm)
10.83 in (275 mm)
11.4 in (289 mm)
12.3 in (313 mm)
3.15 in
(80 mm)
0.28 in
(7.1 mm)
1.65 in
(42 mm)
3.94 in (100 mm)
