Chapter 2: Getting Started & Adjusting the Display 2-15
Customizing the
Screen Presentation
Options
➤ To display the active waypoint:
1. Press the
SCREEN
soft key.
2. Press the
WAYPOINT
soft key to toggle the setting
ON
.
To return to the default soft key display, press ENTER.
The standard radar picture is displayed again, with the active waypoint joined
to your vessel’s position by a dotted line. If the waypoint is off-screen, the
dotted line is extended to the edge of the radar picture.

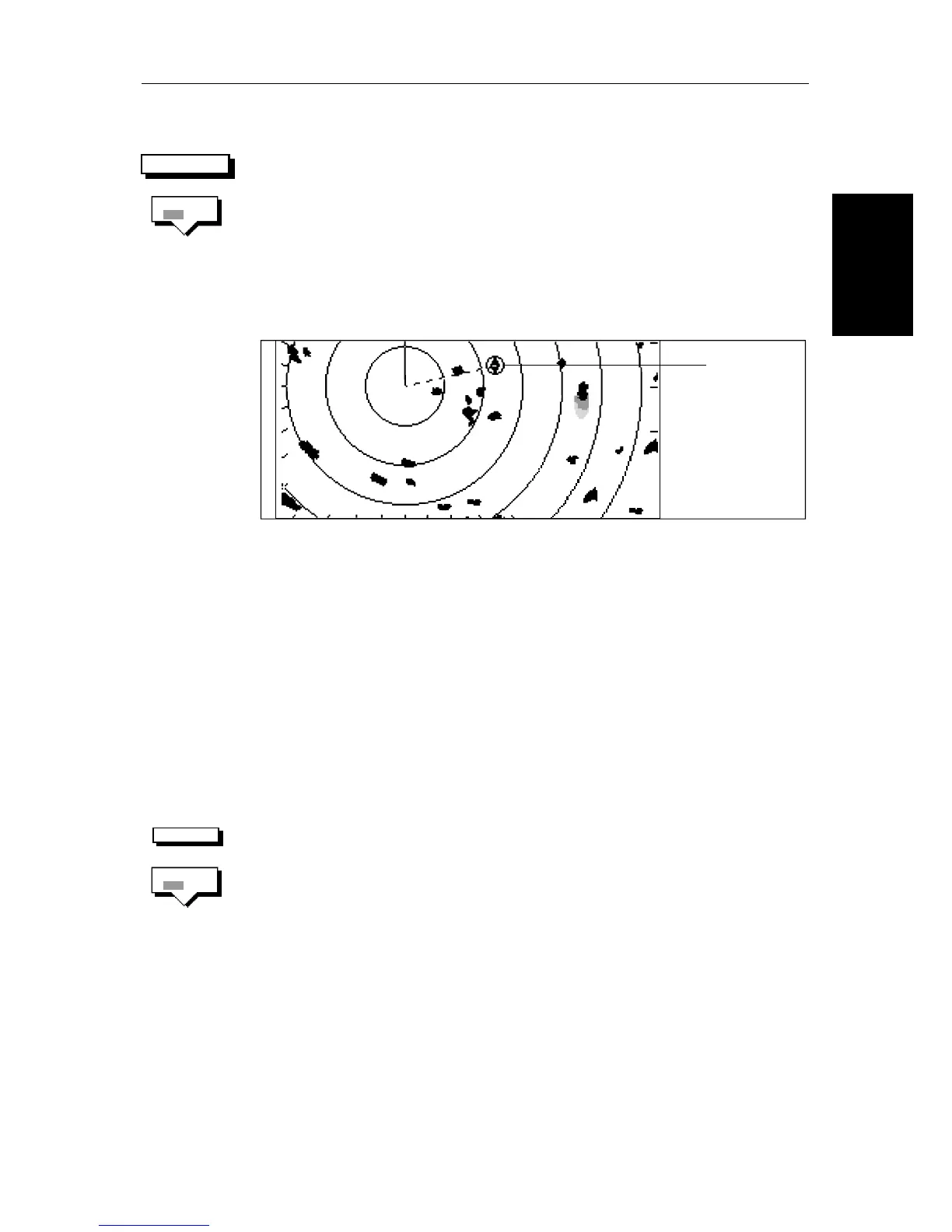

Figure 2-7: Active Waypoint on a Radar Display
Custom Options - Chart mode
When chart details have been customized in the Chart Set Up menu (as
described in Section 7.7) the
SCREEN
soft key can be used to switch the custom
chart options off or on:
When set to
ON
, all chart options set to
CUSTOM
in the Customize Chart menu
are displayed; when set to
OFF
, options set to
CUSTOM
are not shown.
The factory default for custom chart options is
ON
.
➤ To switch the customized options on or off:
1. Press the
SCREEN
default soft key.
2. Press the
CUSTOM
soft key to toggle the setting from
OFF
to
ON
or from
ON
to
OFF
.
To return to the default soft key display, press ENTER.
SCREEN
WAYPOINT
OFF ON
D3989-2
Active waypoint
SCREEN
CUSTOM
OFF ON
