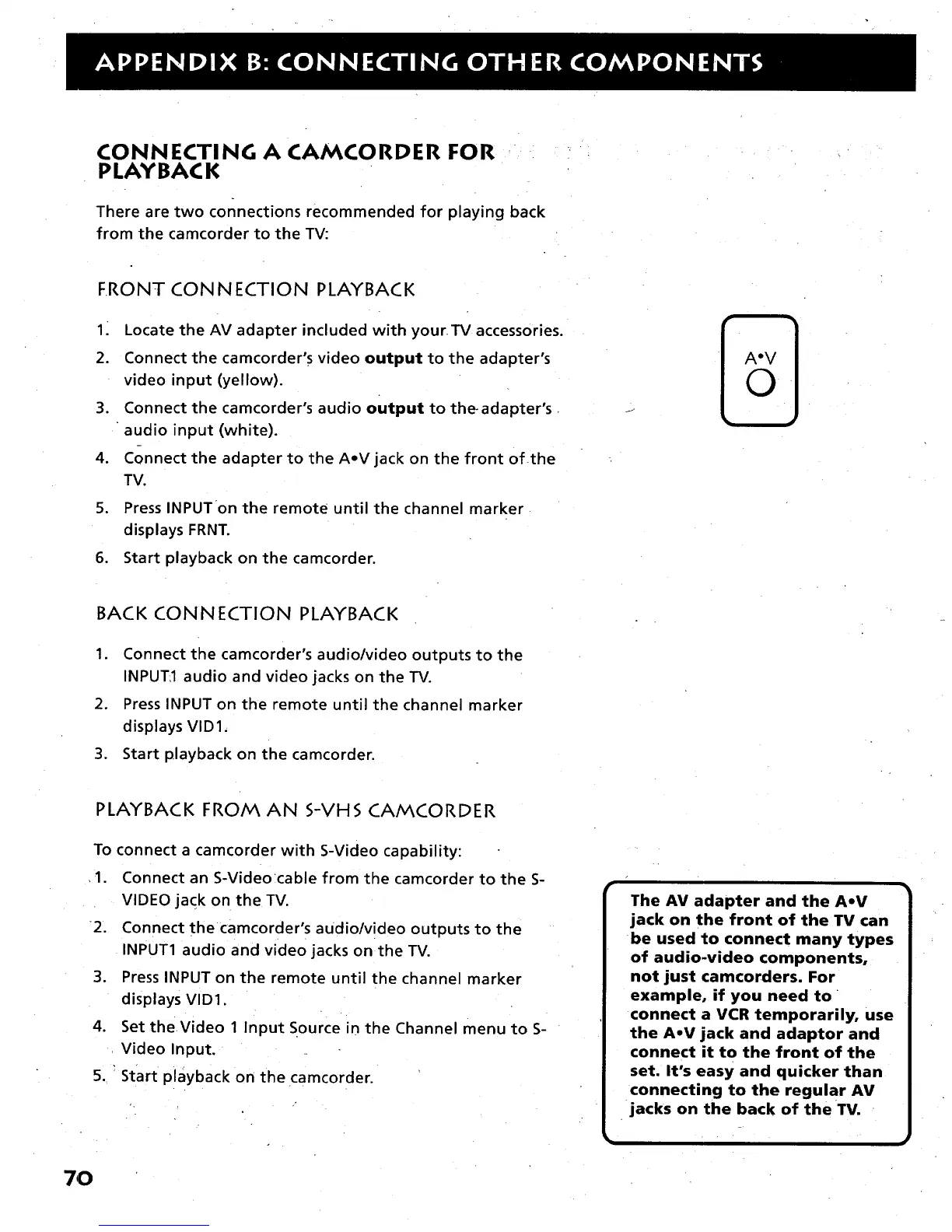

CONNECTING A CAMCORDER FOR ' " _
PLAYBACK
There are two connections recommended for playing back
from the camcorder to the TV:
FRONT CON N ECTION PLAYBACK
11 Locate the AV adapter included with your TV accessories.
2. Connect the camcorder's video output to the adapter's
video input (yellow).
3. Connect the camcorder's audio output to the-adapter's.
audio input (white).
4. Connect the adapter to the AoVjack on the front of the
TV.
5. Press INPUT on the remote until the channel marker
displays FRNT.
6. Start playback on the camcorder.
O
BACK CON N ECTION PLAYBACK
1. Connect the camcorder's audio/video outputs to the
INPUT:I audio and video jacks on the TV.
2. Press INPUT on the remote until the channel marker
displays VlDI_
3. Start playback on the camcorder.
PLAYBACK FROM AN S-VHS CA/v_CORDER
To connect a camcorder with S-Video capability:
,1. Connect an S-Video:cable from the camcorder to the S-
VIDEO jack on the TV.
2. Connect the camcorder's audio/video outputs to the
INPUT1 audio and video jacks on the TV.
3. Press INPUT on the remote until the channel marker
displays VID1.
4. Set theVideo 1 Input Source in the Channel menu to S-
Video Input.
5." start playback on the camcorder.
7O
The AV adapter and the A-V
jack on the front of the TV can
be used to connect many types
of audio-video components,
not just camcorders. For
example, if you need to
connect a VCR temporarily, use
the AoV jack and adaptor and
connect it to the front of the
set. It's easy and quicker than
connecting to the regular AV
jacks on the back of the TV.
