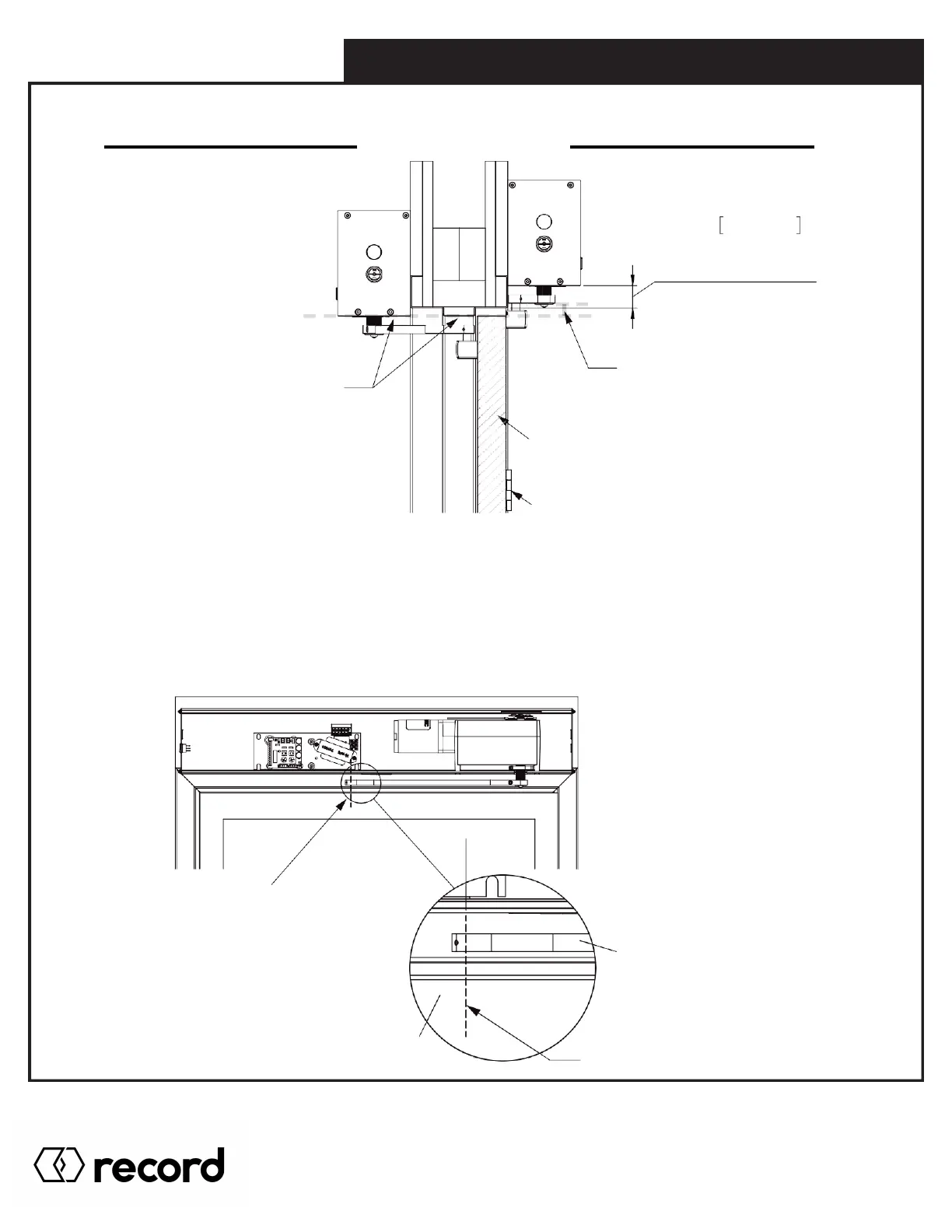

PUSH APPLICATION PULL APPLICATION
1.375in 34.92mm
BOTTOM OF HEADER TO
BOTTOM OF FRAME
IN PUSH APPLICATION,
BOTTOM OF HEADER MUST
BE FLUSH WITH DOOR STOP
(ENSURE ARM CLEARS FROM
FRAME DURING SWING)
Universal Arm as Pull Application
DOOR
HINGE
IN PULL APPLICATION,
SPINDLE MUST BE CLEARED
FROM TOP OF DOOR
STEP 1 - Mark closed position
• Close the door fully and fit the Universal arm to the drive shaft (spindle), so that the arm is parallel with the door.
• In this closed position, mark the spot where roller would touch door (directly below where the arm meets the door).
MARK ON DOOR,
BELOW ARM
(CLOSE POSITION)
UNIVERSAL ARM
DOOR
CLOSE POSITION MARK
Pg. 27
HA8-SP Manual V. 7.0
