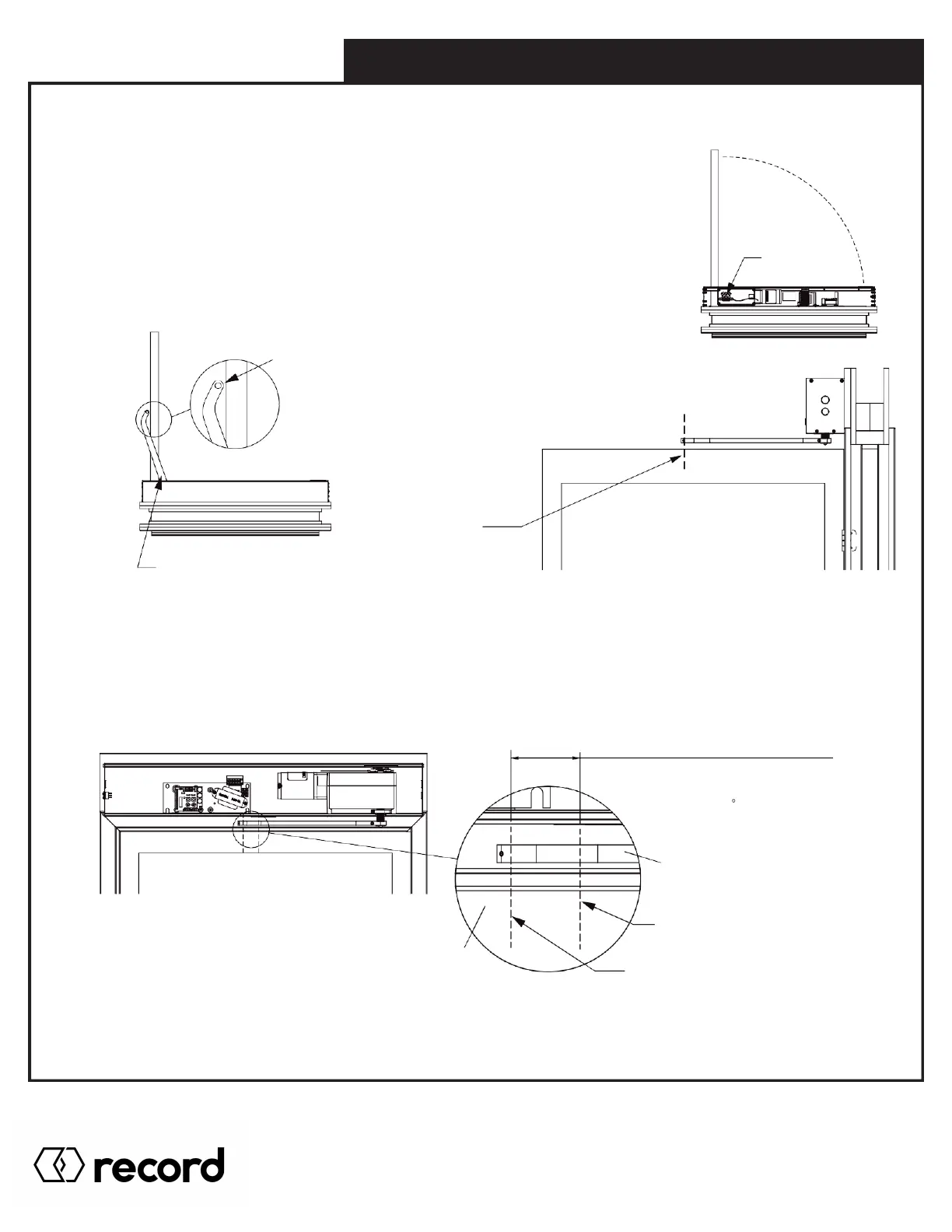

STEP 2 - Mark open position
• Fit the Universal arm to the drive shaft (spindle) at full open position, but do not tighten
the M6 x 20mm socket cap screw all the way. This is to allow the arm some freedom/
flexibility. The Universal Arm must be positioned such that it is just in front of the door as
shown.
• Mark the spot where the roller would touch the door (directly below where the arm
meets the door). This is the open position.
SPINDLE
ARM ORIENTED
OUTSIDE DOOR
AS SHOWN
DO NOT TIGHTEN
SOCKET CAP SCREW
ON UNIVERSAL ARM
MARK ON DOOR,
BELOW ARM
(OPEN POSITION)
STEP 3 - Determine pull track position
• These two marks (open and close) illustrate the travel of the roller during the door swing, and thus must be within the
universal track after mounting. For a pull (with door opening 90 degrees), these two marks should not be more than a
couple inches apart. For door openings larger than 90 degrees, this distance will increase.
2in [50.8mm]
APPROXIMATE DISTANCE
BETWEEN MARKS
(FOR A 90 OPEN SWING
DOOR)
UNIVERSAL ARM
DOOR
OPEN POSITION MARK
CLOSE POSITION MARK
