RED DSMC OPERATION GUIDE: EPIC/SCARLET

SET UP AUDIO

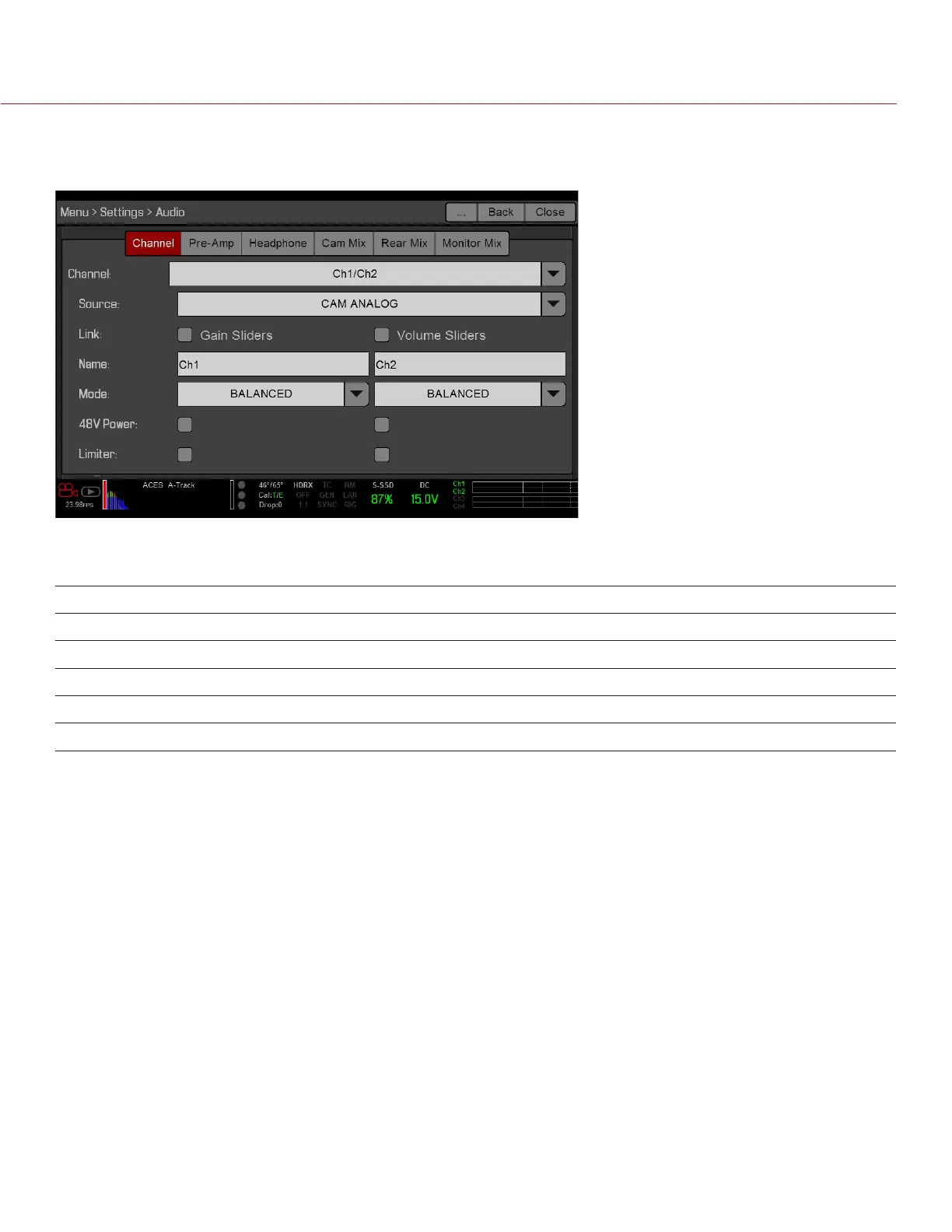

To set up audio, go to Menu > Settings > Audio, and adjust the input, pre-amplifier, headphone, and mix settings.

AUDIO INPUT (SOURCE) OPTIONS

SOURCE NAME CHANNEL PAIRS MODULE CONNECTORS

NONE N/A N/A N/A

CAM ANALOG Ch1/Ch2, Ch3/Ch4 DSMC BRAIN MIC-1, MIC-2

PRO I/O ANALOG Ch1/Ch2, Ch3/Ch4 Pro I/O Module AUDIO 3, AUDIO 4

PRO I/O AES A Ch1/Ch2, Ch3/Ch4 Pro I/O Module AES

PRO I/O AES B Ch3/Ch4 Pro I/O Module AES

NONE

Select NONE to disable recording audio.

CAM ANALOG AND PRO I/O ANALOG (MICROPHONE)

The DSMC provides two (2) microphone jacks for recording two (2) channels of microphone level analog audio.

The Pro I/O Module provides two (2) XLR connectors for recording two (2) additional channels of microphone

level audio. The sensitivity of the microphone and the pre-amp gain determine the recording level of the

microphone input.

PRO I/O ANALOG (LINE IN)

The Pro I/O Module provides two (2) XLR connectors for recording two (2) channels of line level analog audio.

Line input passes without gain through the system. The signal provided by the field production mixer or other

external line level source determines the recording level of the line input.

NOTE: Line level audio is only available via the Pro I/O Module.

PRO I/O AES A/B (DIGITAL INPUT)

The AES connector on the Pro I/O Module allows an input of 24-bit, 48 KHz AES digital audio.

NOTE: Digital input audio is only available via the Pro I/O Module.
