RED DSMC OPERATION GUIDE: EPIC/SCARLET

POWER PORTS

DC IN (POWER INPUT)

The 6-pin 1B LEMO connector accepts DC input power from 11.5 V DC to 17 V DC. A built-in power conditioner

protects against reverse-polarity connections, electrostatic discharge (ESD), undervoltage, overvoltage, and

overcurrent.

WARNING: Both pairs of +VBATT and GROUND pins must be wired. Using a third-party power cable that wires

only one (1) pair of +VBATT and GROUND pins may damage the power supply or the DSMC

. Damage to the

power supply or other components of the DSMC system caused by using an inappropriate power cable is not

covered under warranty.

6-PIN 1B DC INPUT CONNECTOR

PIN SIGNAL DESCRIPTION

1 +VBATT Power input, +11.5 to +17 V DC

2 +VBATT Power input, +11.5 to +17 V DC

3 SCL-BATT Serial battery bus clock

4 GROUND Power return (camera ground)

5 GROUND Power return (camera ground)

6 SDA-BATT Serial battery bus data

NOTE: Mating connector is FGJ.1B.306.CWLD72Z.

COMPATIBLE CABLES

 790-0138: 2B-to-1B LEMO Power Adaptor Cable

 790-0164: XLR Power Cable (10')

 790-0165: XLR Power Cable (30")

SSD MODULE CONNECTORS

The connectors for the side SSD modules and the REAR SSD MODULE are described in the RED DSMC Media

Operation Guide, available at www.red.com/downloads.

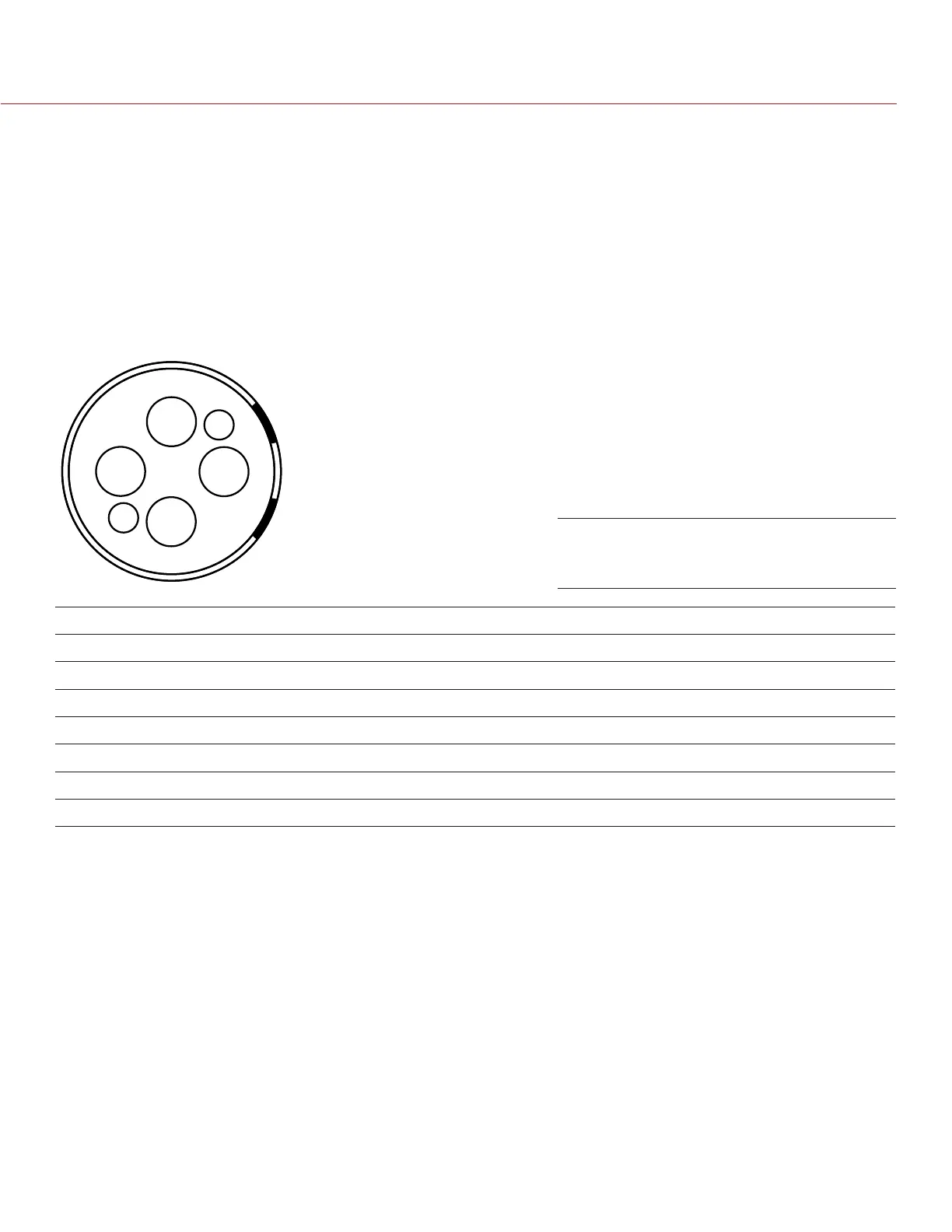

Front Face of the DC In Power Input

Connector (Looking at the DSMC)
