DISPLAYS AND ELECTRONIC VIEWFINDERS
RED offers the following displays and electronic viewfinders (EVFs):
ITEM RESOLUTION PART NUMBER
DSMC
2

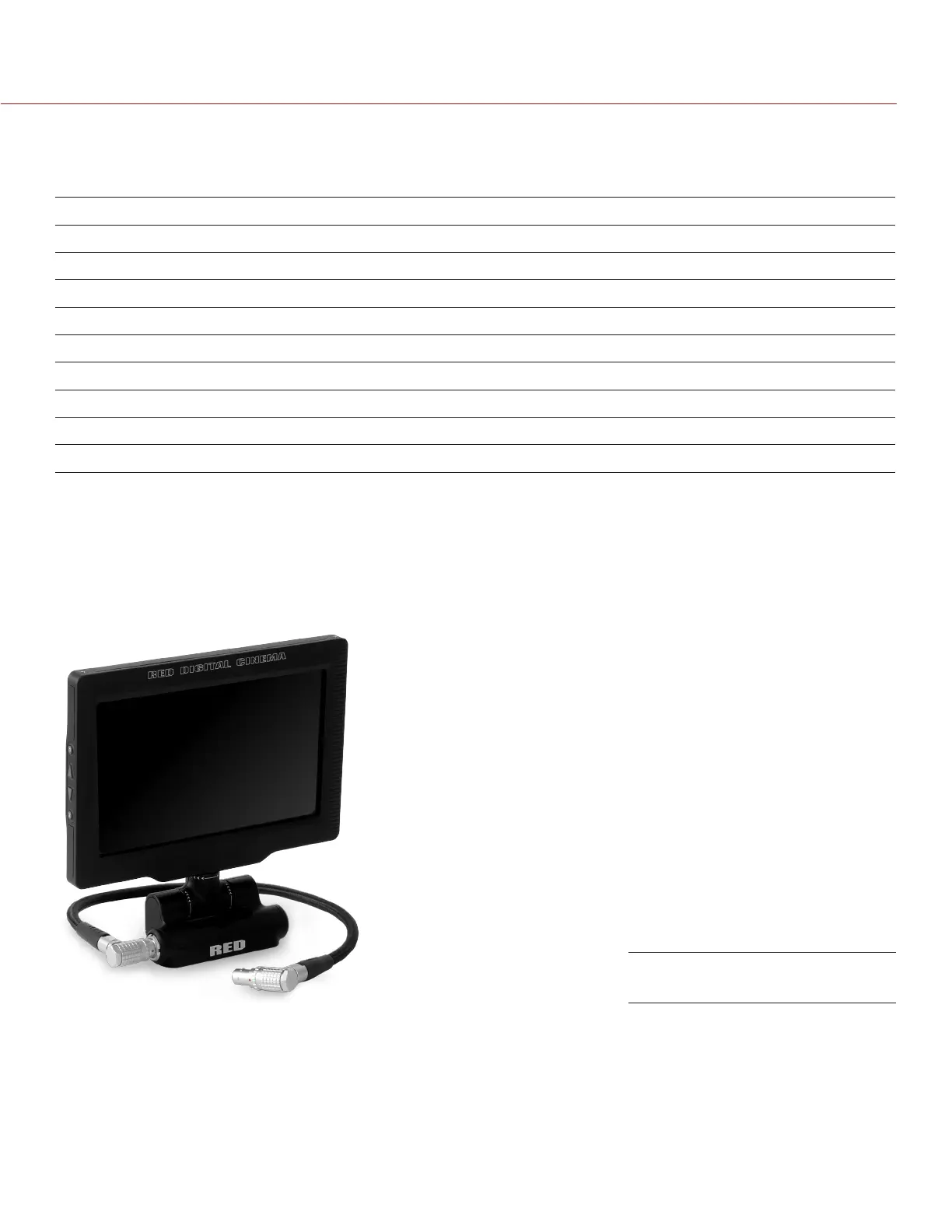

RED Touch 7.0" LCD
1
1920 x 1136 730-0018
DSMC
2
RED Touch 4.7" LCD
1
1280 x 720 730-0019
RED Touch 5.0" LCD
2
800 x 400 730-0008
RED Touch 7.0" LCD
2, 3
1920 x 1136 730-0007
RED Touch 9.0" LCD
2
1280 x 768 730-0011
RED PRO LCD 7"
2
1024 x 600 730-0009
DSMC
2
RED EVF (OLED)
3
1920 x 1080 730-0021
BOMB EVF
®
(LCOS)
2
1280 x 784 730-0004
BOMB EVF (OLED)
2
1280 x 1024 730-0010
1. Using this display with an EPIC or SCARLET camera requires a DSMC
2
LEMO Adaptor B.
2. Using this display with a WEAPON camera requires a DSMC
2
LEMO Adaptor A.
3. RED offers multiple mounting solutions for each camera type.
3. The RED Touch 7.0” LCD requires that your DSMC is on firmware v5.2.38 or later.
For a full list of LCD and EVF user keys and default actions, go to “Default Key Functions” on page 218.
RED LCDS
RED displays provide important camera parameters on the graphical user interface (GUI) and offer a variety of
monitor viewing options. RED touchscreen displays enable you to use gestures to navigate menus and adjust
camera parameters. RED displays feature 8-bit RGB, 4:4:4 progressive scan, providing up to 16.7 million colors
and up to 70% NTSC color gamut.
LCD PRECAUTIONS
WARNING: DO NOT use a RED display as a handle to lift or carry the DSMC. Damage to a RED display or other
components of the DSMC system caused by using the display as a handle are not covered under warranty.
RED Touch 7.0" LCD
