RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 16

LED COLOR/FLASHING DESCRIPTION

Power Status LED (PWR)

and Record Status LED (REC)

Both green flashing Firmware update in progress

Both red flashing Firmware update error

DSMC MEDIA MODULES

This section describes the DSMC media modules. RED offers the following DSMC media modules:

ITEM PART NUMBER

DSMC 1.8" SSD Side Module 720-0013

DSMC 1.8" SSD Side Module (DRAGON)

N/A

Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON)

N/A

RED MINI-MAG

Side SSD Module 720-0021

Carbon Fiber RED MINI-MAG Side SSD Module

N/A

Rear SSD Module 720-0009

1. The DSMC 1.8" SSD Side Module (DRAGON) is only available with the purchase of a RED DRAGON sensor-based BRAIN.

2. Carbon fiber side SSD modules are only available with the purchase of a carbon fiber BRAIN.

DSMC SIDE SSD MODULES

DSMC media modules attach to the DSMC to enable the use of RED MINI-MAG or REDMAG™ 1.8" SSD media.

Both DSMC side SSD module systems have the same EVF/LCD LEMO

connector, user keys, and REC button.

DSMC SIDE SSD MODULE CONNECTOR

CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION

EVF/LCD N/A Power and external monitoring support for an electronic

viewfinder or display

WARNING: The DSMC side SSD modules are NOT HOT SWAPPABLE, meaning you cannot remove or install

modules while the camera is turned on. Before installing or removing modules you MUST turn off the camera.

Failure to do so may result in damage to the module or DSMC that will not be covered under warranty.

For more information, see the DSMC Media Operation Guide, available at www.red.com/downloads.

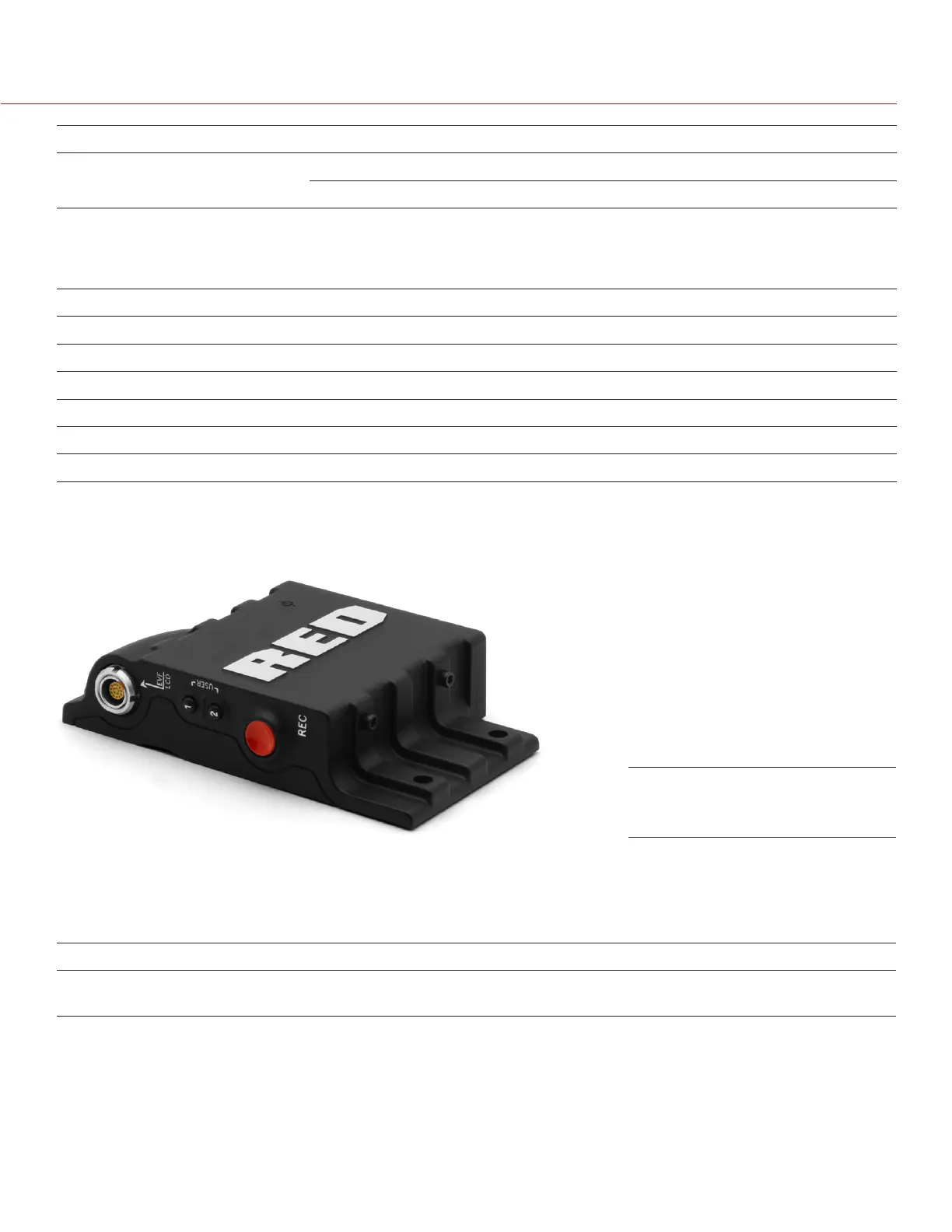

RED MINI-MAG Side SSD

Module
