RED DSMC OPERATION GUIDE: EPIC/SCARLET
COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J | 29
CAMERA CONTROL MODULES
This section describes the camera control modules. These devices provide a wide array of programmable
buttons, controls, and other features to interact with the camera.
RED offers the following remotes and controls:
ITEM PART NUMBER
DSMC Side Handle 720-0012
RED Switchblade-M
1
720-0026
REDMOTE 770-0006
REDLINK
®
Bridge (REDLINK Development Kit) 720-0028
1. The RED Switchblade-M requires that your DSMC is on firmware v5.2.28 or later. Full functionality requires DSMC firmware v5.3 or later.
2. The REDLINK Bridge requires that your DSMC is on firmware v5.2.28 or later.
DSMC SIDE HANDLE
The DSMC Side Handle provides programmable menu controls and a battery compartment that holds one (1)
REDVOLT battery. The DSMC Side Handle LCD display shows camera parameter values and illuminates for
operation in dark environments. When a REDVOLT is installed in the DSMC Side Handle, batteries connected
to other DSMC power modules may be hot-swapped, providing uninterrupted operation.
For a full list of DSMC Side Handle user keys and default actions, go to “Default Key Functions” on page 218.
NOTE: Upgrading your DSMC to v5.3 also upgrades the DSMC Side Handle. During the upgrade, you will be
instructed to shut down the DSMC twice so that the firmware upgrades successfully. Any DSMC Side Handle
that is upgraded to v5.3 can only be used with DSMCs running v5.2 or later. To use a DSMC Side Handle with
v5.1 after you’ve upgraded it to v5.3, first downgrade to v5.2, and then downgrade to v5.1.

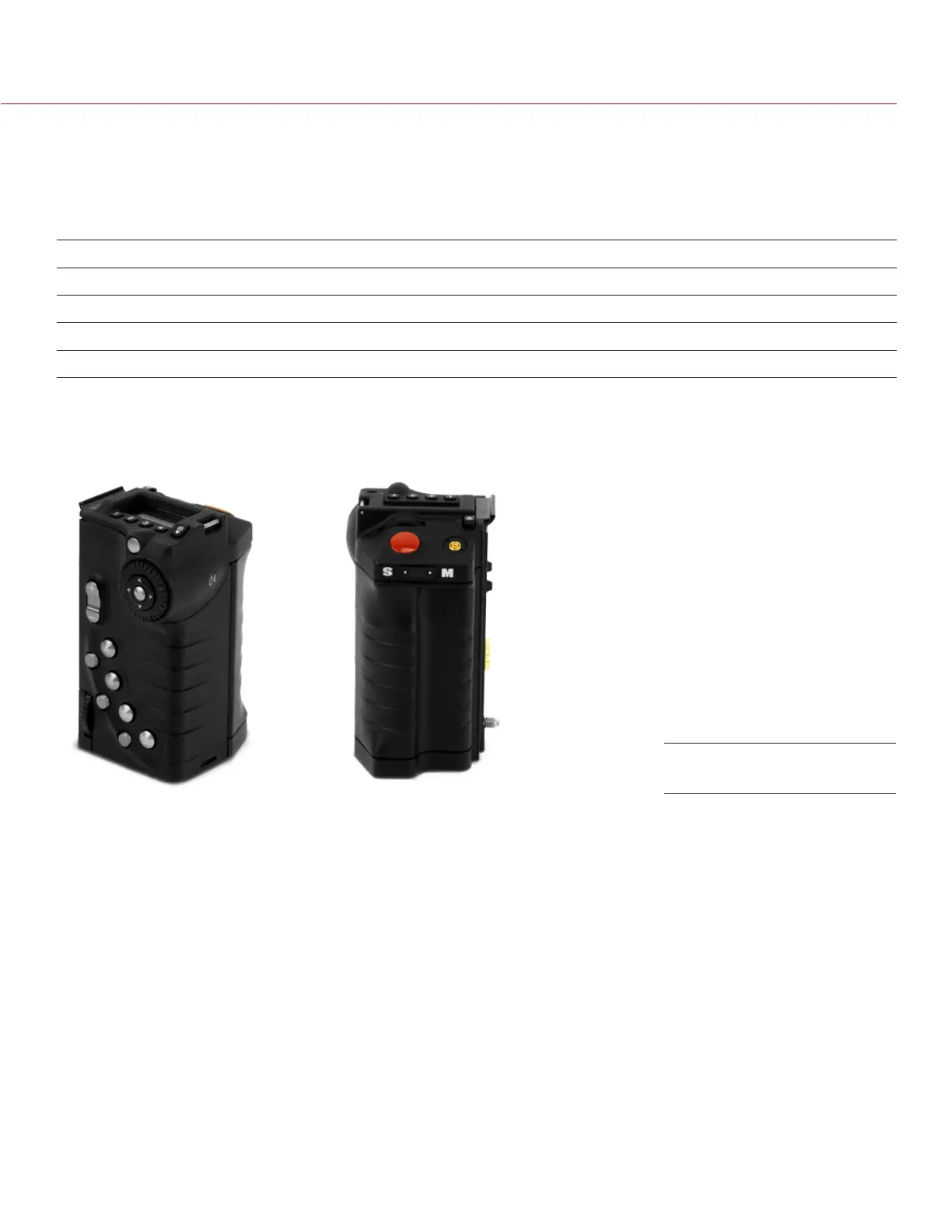

DSMC Side Handle
