RED DSMC OPERATION GUIDE: EPIC/SCARLET
COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J | 19
EPIC/SCARLET ADAPTOR MODULES
This section describes the EPIC/SCARLET adaptor modules.
EPIC/SCARLET adaptor modules enable you to connect other DSMC modules to the EPIC/SCARLET BRAIN
for expandable functionality. The +1 Adaptor Module provides an auxiliary power port for accessories and an
additional EVF/LCD port for additional monitor viewing and output.
Both adaptor modules also offer additional 1/4-20 mounting points on top for configuration support. Most
DSMC modules require a Module Adaptor or +1 Adaptor Module to attach to your EPIC/SCARLET BRAIN.
For more information, go to “Configure Your DSMC” on page 35.
WARNING: The Module Adaptor is NOT compatible with the +1 Adaptor Module.
WARNING: The +1 Adaptor Module IS NOT compatible with the Module Adaptor.
WARNING: DO NOT use the EVF/LCD port if a Pro I/O Module is connected to the EPIC/SCARLET BRAIN.
RED offers the following EPIC/SCARLET adaptor modules:
ITEM PART NUMBER
Module Adaptor 720-0008
+1 Adaptor Module
1
720-0018
1. The +1 Adaptor Module requires that your DSMC is on firmware v4.08 or later.

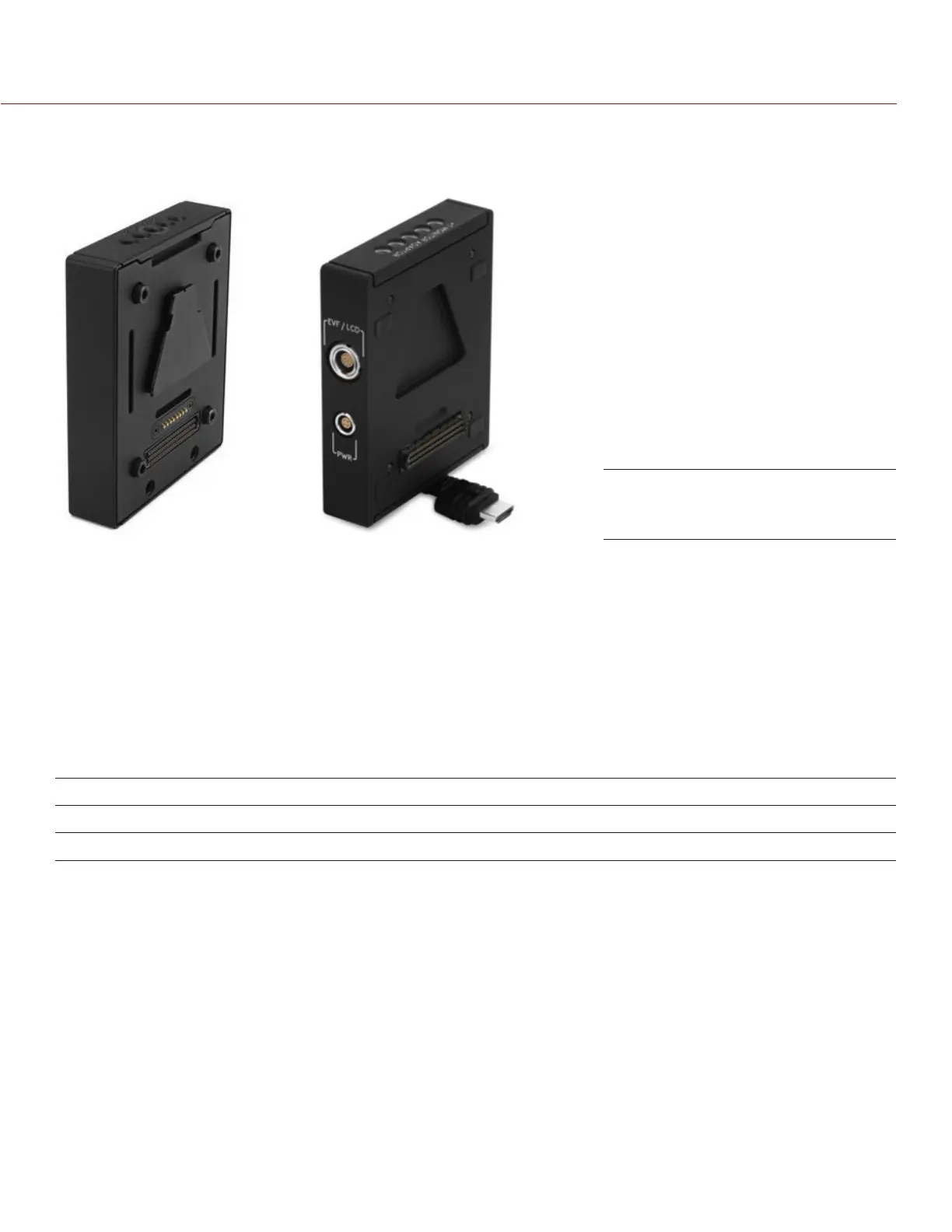

Module Adaptor (left) and
+1 Adaptor Module (right)
