RED DSMC OPERATION GUIDE: EPIC/SCARLET

BRAIN

The DSMC BRAIN

is the image processing center of the DSMC system and supports power, media, and other

modules.

BRAIN CONTROL: PWR/REC BUTTON

 Fully press and hold the PWR/REC button for two (2) seconds to turn on/off.

 When the DSMC is on, fully press and then release the PWR/REC button to toggle record start/stop.

BRAIN LEDS

This section describes the LED functions for the EPIC/SCARLET BRAIN.

LED COLOR/FLASHING DESCRIPTION

Power Status LED

(PWR)

Off No power present

Green Power present; camera on

Amber flashing Power present; 5–10 min of battery time left

Amber Power present; camera booting

Red flashing Power present; < 5 min of battery time left

Red Power present; camera off

Record Status LED

(REC)

Off No media present

Green Ready to record

Amber Finalizing

Red flashing (slow) Recording; 25% media left

Red flashing (fast) Recording; 5% media left

Red Recording

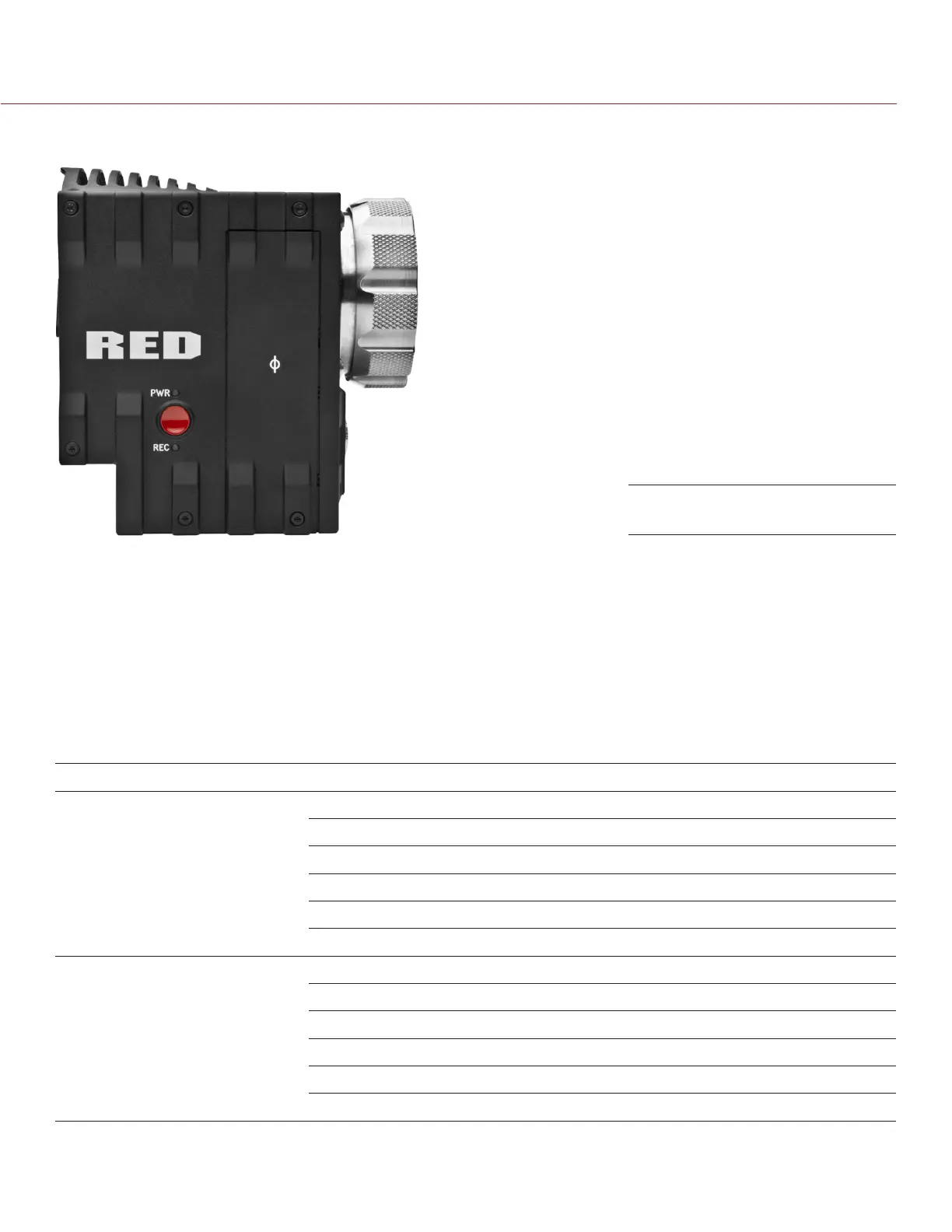

EPIC BRAIN (Side)
