RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 56

LOWER STATUS ROW

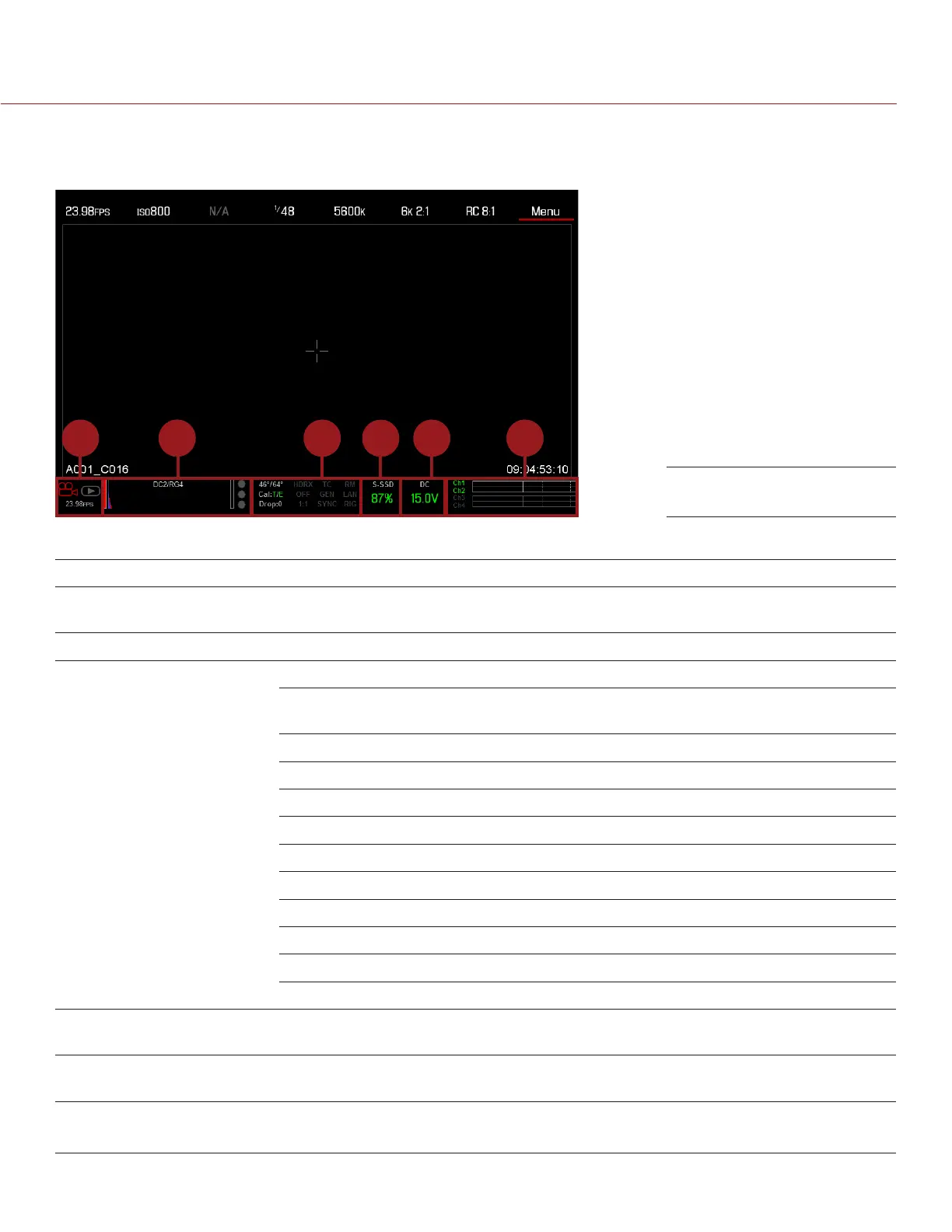

The Lower Status Row provides access to key system information and camera values.

1 3 5 62

The Lower Status Row in Motion mode provides key system information and camera values, including:

# LOWER STATUS ROW ITEM SUB-ITEM/DESCRIPTION FOR MORE INFORMATION, GO TO...

1 Camera Mode Swipe up to toggle Motion/Stills/Playback

modes

“Camera Mode” on page 57

2 Histogram Histogram; tap to access the Tools menu “Histogram” on page 58

3 System Status

Indicators

Tap to access the System Status menu “System Status” on page 121

Temperature: Camera sensor and core

temperature, respectively

“Sensor Calibration” on page 110

Cal: T/E “CAL: T/E Indicator” on page 58

HDR: Displays when HDRx mode is on “HDRX Menu” on page 129

False Color Mode: Displays modes “False Color Modes” on page 69

Magnify: Tallies 1:1 if magnify is selected “Magnify” on page 71

Timecode “Timecode” on page 157

Genlock “GEN Indicator” on page 59

Sync “SYNC Indicator” on page 59

RM: Indicates link to REDMOTE “REDMOTE Operation” on page 147

LAN “LAN Indicator” on page 59

RIG: Indicates 3D rig metadata is present N/A

4 Media Status Media location and remaining media

capacity; tap to access the Media Menu

“Media Menu” on page 124

5 Power Status DC voltage in or % of remaining battery

capacity; tap to access the Power menu

“Power Status” on page 59

6 Audio Meter Audio input selection and levels;

tap to access the Audio menu

“Audio Meter Levels” on page 146

Lower Status Row: Motion
