RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 148

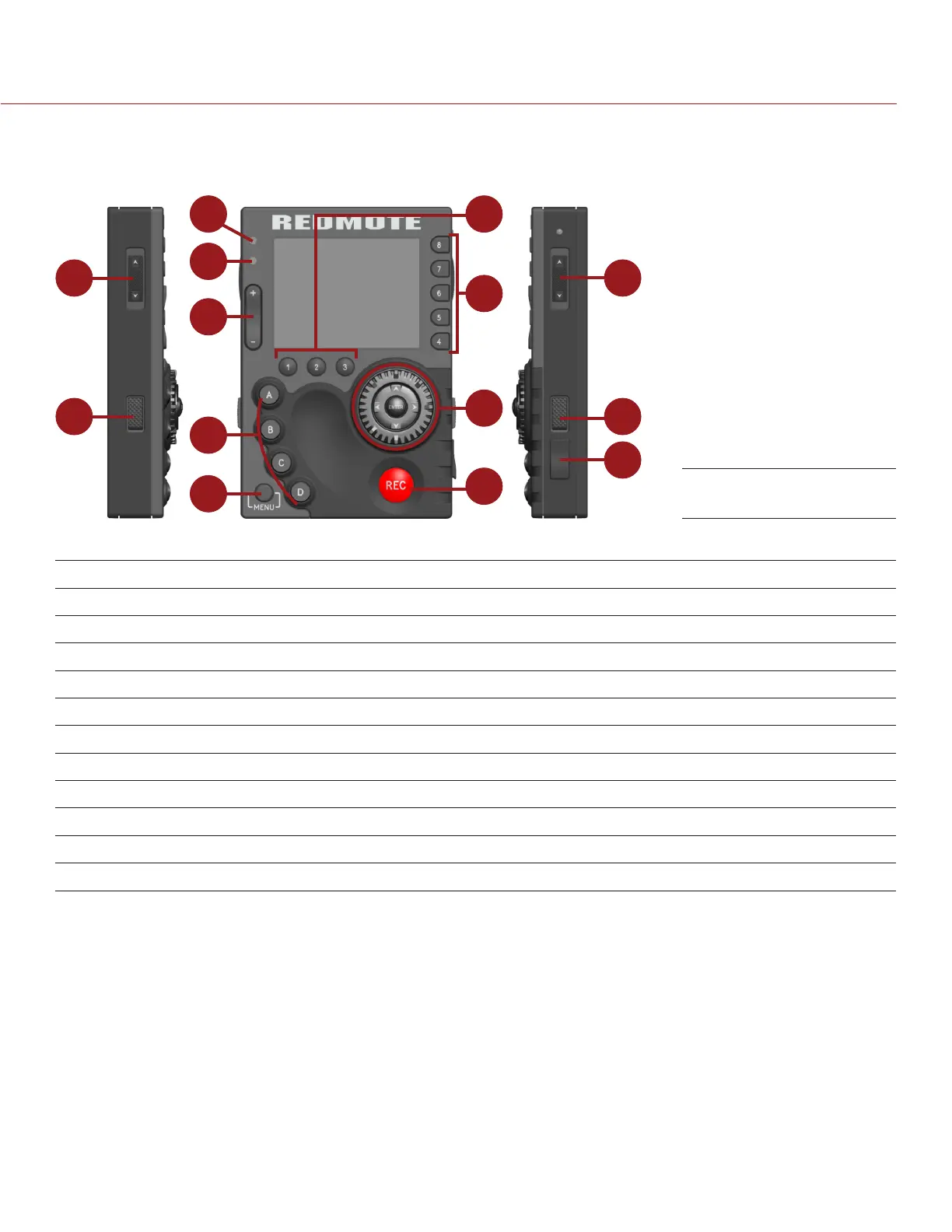

CONTROLS, CONNECTORS, AND LEDS

This section describes the REDMOTE controls, connectors, and color LCD display.

The following table describes default REDMOTE control actions. Each control is also programmable.

# REDMOTE CONTROL DESCRIPTION

1 Stills/Motion Switch Toggles between Stills/Motion Mode, enabled in v6.0 firmware or later

2 Release Buttons Press and hold to undock the REDMOTE

5 Rocker Switch Up: Iris open; Down: Iris close

6 User Function Keys Go to “Default Key Functions” on page 218

7 Menu Button Toggle between basic and advanced DSMC menus

8 Soft Menu Buttons (1-3) Go to “Soft Menu Buttons (1-3)” on page 149

9 Soft Menu Buttons (4-8) Go to “Customize REDMOTE Setting Menus” on page 152

10 Navigation Group Go to “Navigation Group” on page 149

11 Focus/Record Button Half press initiates auto focus; full press toggles record start/stop

12 Power/Lock Switch Go to “Power/Key Lock Switch” on page 150

13 Mini-USB Power Port Charges the internal battery; upgrade firmware

For a full list of default user key actions for the REDMOTE, go to “Default Key Functions” on page 218.

COMPATIBLE CABLE

 790-0230: RED

Mini-USB-to-USB cable

REDMOTE
