RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 34

POWER OPERATIONS

This section describes the basic power operations of the DSMC

system.

For more information, see the DSMC Power Operation Guide, available at www.red.com/downloads.

WARNING: Modules, displays, and accessories are NOT HOT SWAPPABLE, meaning that you cannot remove or

install the item while the camera is turned on. Before installing or removing a module, display, or accessory,

you MUST turn off the camera. Failure to do so may result in damage to the item or DSMC

that is not covered

under warranty.

POWER INPUTS

There are two (2) primary power inputs that provide power to the DSMC BRAIN

# DSMC POWER INPUT DESCRIPTION

1 SEARAY power connector Provides power to the BRAIN from attached DSMC modules

2 DC IN connector Provides power to the BRAIN using a DSMC Power Adaptor or certain

battery modules, such as the Backpack Quickplate

NOTE: Additionally, one (1) REDVOLT

battery may be used in conjunction with the DSMC Side Handle to provide

short term power and support hot-swapping of other power sources.

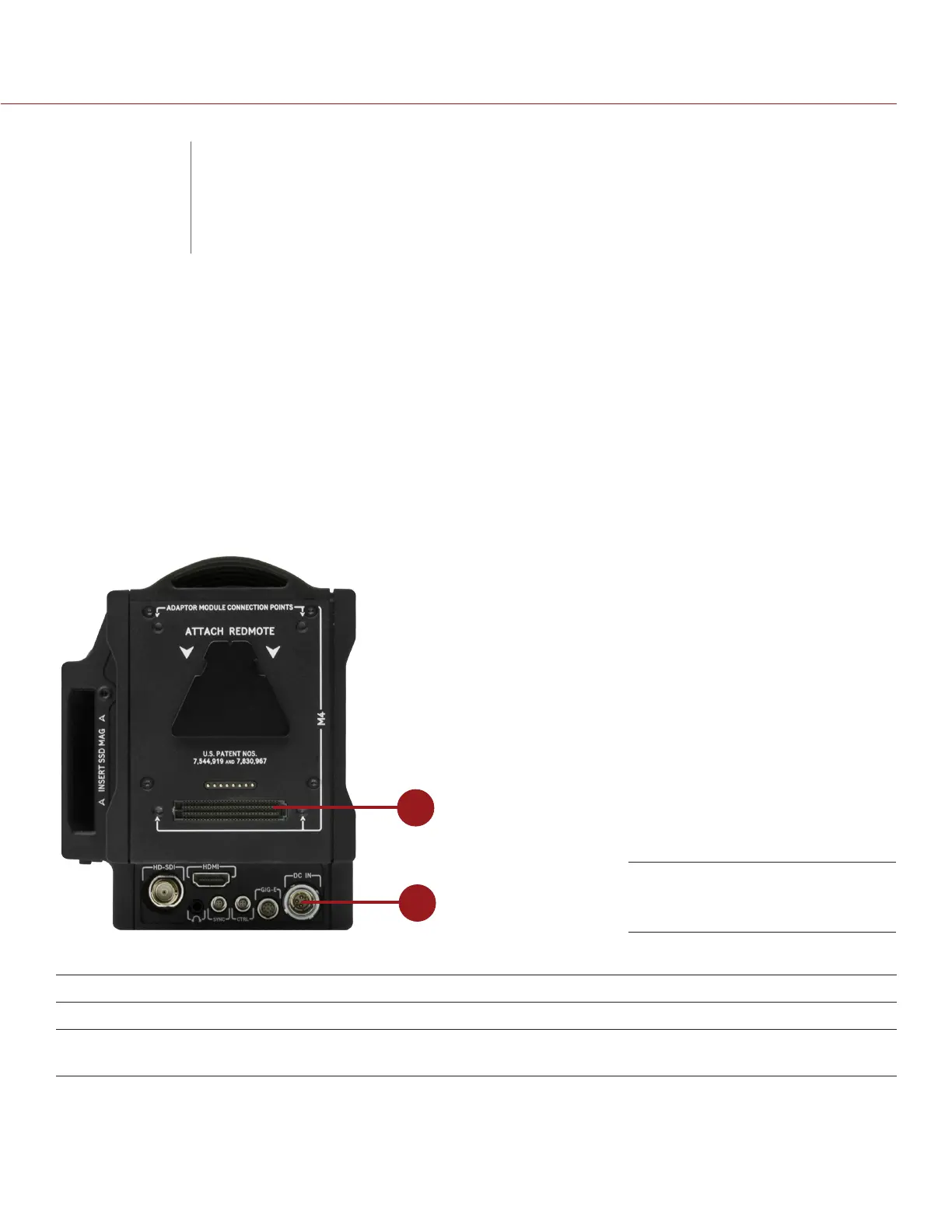

SEARAY Connector (top) and

DC IN Connector (bottom)

EPIC/SCARLET

BASIC OPERATIONS
