RED DSMC OPERATION GUIDE: EPIC/SCARLET

SET UP STEREO/3D CONFIGURATION

This section describes basic procedures for connecting two (2) DSMC BRAINs in a Master/Slave configuration

for 3D operation.

NOTE: When providing the signals to a Stereo Image Processor (SiP) for verifying 3D alignment, set the HD-SDI

monitor output on both cameras to have the same overlay configuration.

NOTE: For genlock to function correctly, the cameras must be on the same firmware version, and must be using

the same project time base and recording frame rate.

To set up a Stereo/3D setup, follow the instructions below.

1. On both cameras, set the desired project time base and recording frame rate.

2. On both cameras, follow the instructions in “Sensor Sync” on page 161 to achieve Sensor Sync genlock

status.

The GEN and SYNC indicators in the Lower Status Row illuminate green.

3. Follow the instructions in “Set Up Master/Slave Operation” on page 162 to set Master and Slave camera

settings.

4. On both cameras, follow the instructions in “Set Reel Number, Camera ID, and Camera Position” on page

164 to prepare media and camera settings.

3D CONFIGURATION EXAMPLE

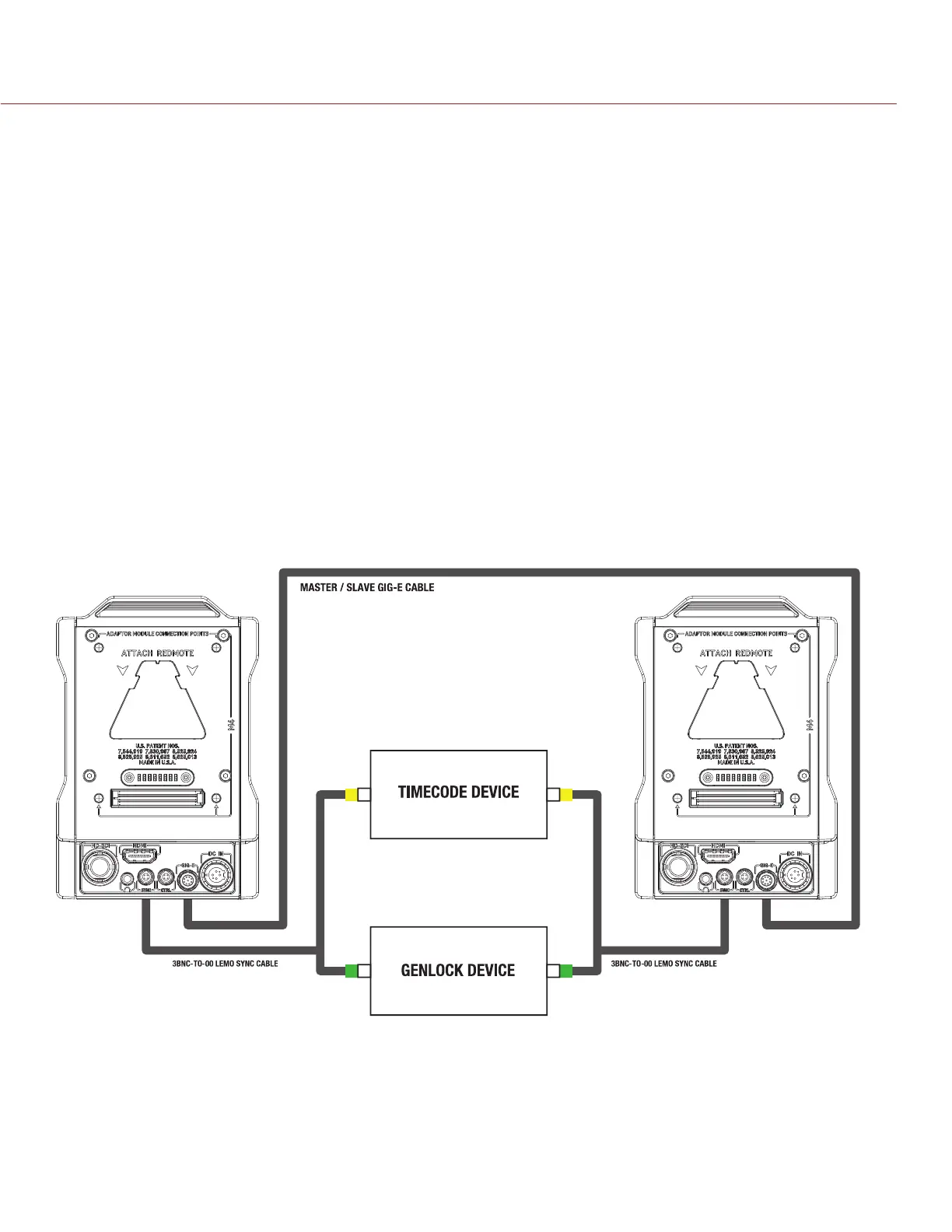

The diagram below is an example of how to set up a 3D configuration.

REQUIRED CABLES

 790-0163: Master/Slave Gig-E Cable

 790-0154: 3BNC-to-00 LEMO Sync Cable (required per camera)
