RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 202

COMPATIBLE CABLE

 790-0341: RED

HD-SDI Cable (6')

HDMI OUT

A standard HDMI connector provides the following output:

 High-definition video output (default mode is Overlay)

 Two (2) channels of embedded audio

The HDMI output provides the formats described in the table below:

HDMI OUTPUT FORMATS

VIDEO FEED

FREQUENCY (HZ)

480p 50.00, 60.00

720p 24.00, 25.00, 30.00, 50.00, 60.00

1080p 24.00, 25.00, 30.00, 50.00, 60.00

1. Ensure you select a frequency supported by your monitor.

2. The HDMI output is progressive scan (p); it does not support progressive segmented frame (PsF) or interlaced (i) scan formats.

COMPATIBLE CABLE

 790-0331: RED HDMI Cable (5')

COMMUNICATION PORTS

SYNC (VIDEO SYNC IN)

The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals.

4-PIN 00B LEMO SYNC CONNECTOR

PIN SIGNAL DESCRIPTION DIRECTION

1 GROUND Common ground N/A

2 SS/GPI Shutter sync/general purpose input trigger In

3 TIMECODE SMPTE unbalanced timecode input In

4 GENLOCK Tri-level sync input In

NOTE: Mating connector is FGG.00.304.CLAD27Z.

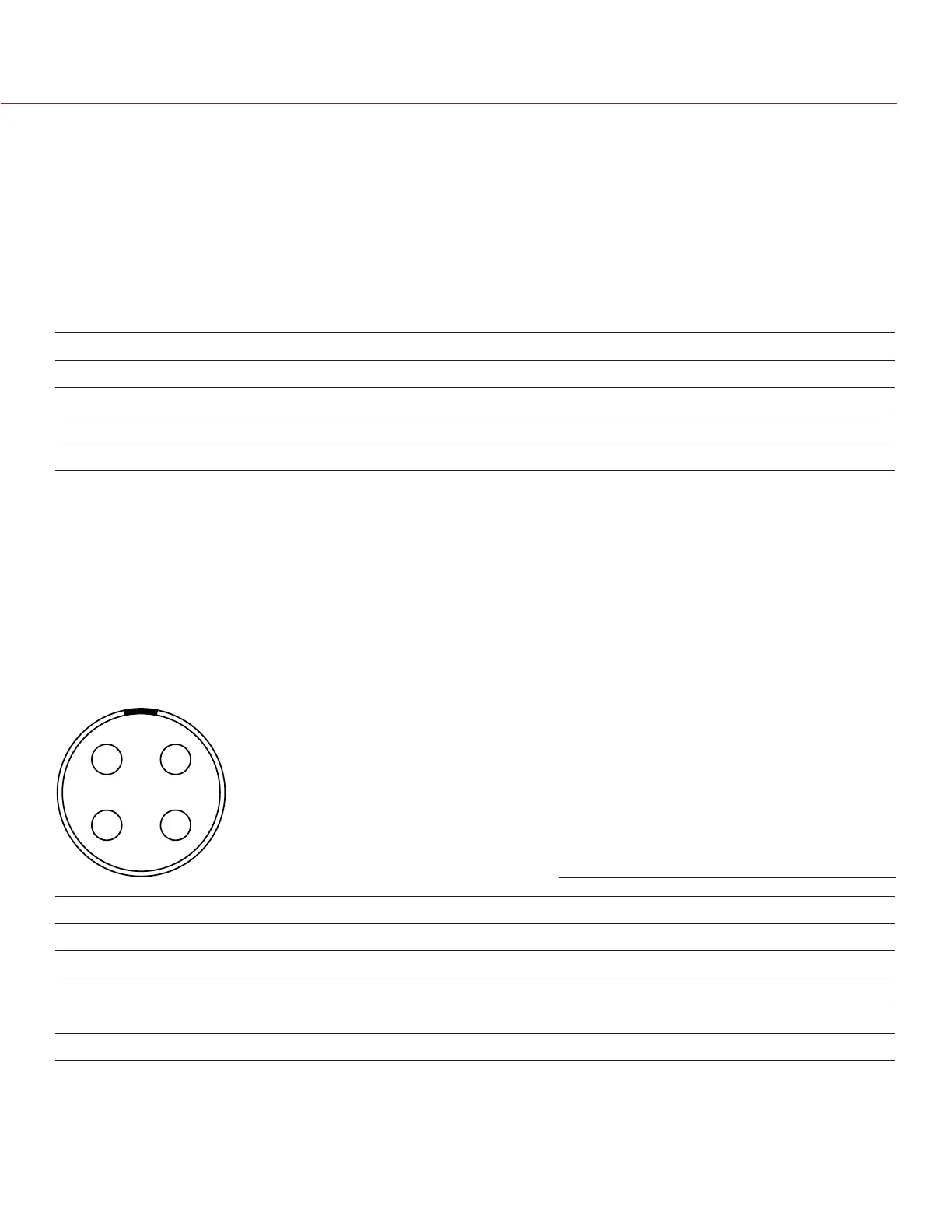

Front Face of the SYNC (Video Sync)

Connector (Looking at the DSMC)
