COPYRIGHT © 2015 RED.COM, INC
RED DSMC OPERATION GUIDE: EPIC/SCARLET
955-0020_V6.0, REV-J | 28
LEMO ADAPTORS
This section describes the DSMC
2
LEMO Adaptor A and the DSMC
2
LEMO Adaptor B. These adaptors enable
you to use EPIC/SCARLET displays with your WEAPON camera and use WEAPON displays with your EPIC/
SCARLET camera. For more information on available displays, go to “Displays and Electronic Viewfinders” on
page 25.
ITEM PART NUMBER

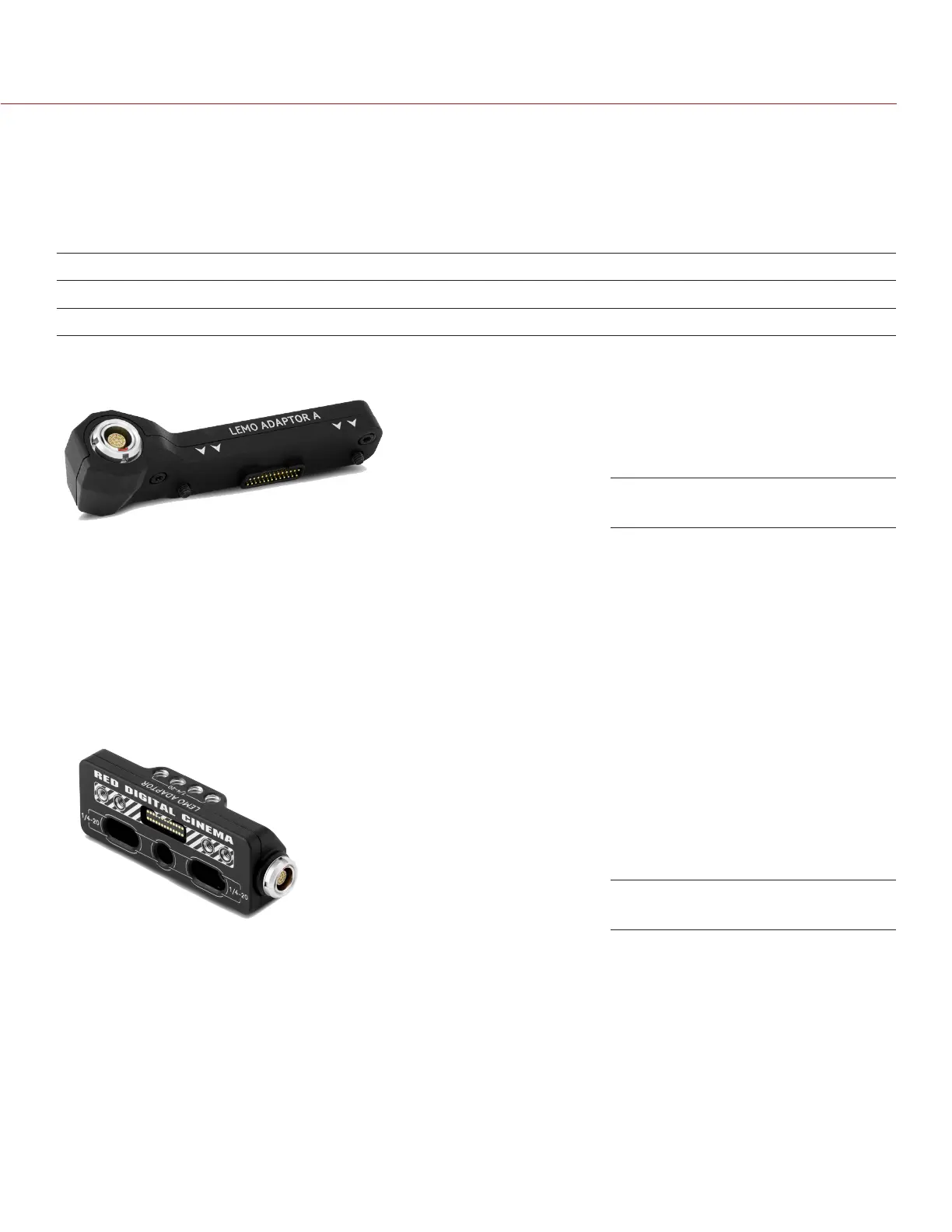

DSMC
2
LEMO Adaptor A 720-0037
DSMC
2
LEMO Adaptor B 720-0038
LEMO ADAPTOR A
The DSMC
2
LEMO Adaptor A makes your existing RED Touch and RED PRO displays, as well as RED EVFs, fully
compatible with the WEAPON camera system. The DSMC
2
LEMO Adaptor A converts the pogo connection on
the WEAPON BRAIN to a legacy EVF/LCD LEMO port. The DSMC
2
LEMO Adaptor A is designed to attach to
the primary (top), or the secondary (side) EVF/LCD port on the WEAPON BRAIN.
When used along with the DSMC
2
LEMO Adaptor B, this adaptor enables you to mount a DSMC
2
RED Touch
LCD away from the camera BRAIN—to a NOGA arm or other stable mounting point.
The DSMC
2
LEMO Adaptor A is compatible with the BOMB EVF, (LCOS) and (OLED) models, or later.
LEMO ADAPTOR B
The DSMC
2
LEMO Adaptor B enables you to use a DSMC
2
RED Touch LCD with your existing EPIC or SCARLET
camera BRAIN. The DSMC
2
LEMO Adaptor B converts the display signal from a pogo connection to a legacy
EVF/LCD LEMO port. The DSMC
2
LEMO Adaptor B is designed to mount to your EPIC or SCARLET camera
BRAIN using standard 1/4-20 mounting holes.
When used along with the DSMC
2
LEMO Adaptor A, this adaptor enables you to mount a DSMC
2
RED Touch
LCD away from the camera BRAIN—to a NOGA arm or other stable mounting point.
DSMC
2
LEMO Adaptor A
DSMC
2
LEMO Adaptor B
