5 Eyepiece heater The integrated eyepiece heater automatically heats the eyepiece when the
EVF detects a low ambient temperature
DSMC
2
RED EVF
The DSMC
2
RED EVF (OLED) is a high definition electronic viewfinder designed as the ideal single-viewer
monitoring solution. Featuring the latest OLED technology, this EVF provides an unmatched personal viewing
experience with a 1080p OLED micro-display, and improved color accuracy with 30-bit RGB color represenation.
View and monitor your RED footage as it is intended with truer colors and deeper blacks in a larger field of view.
Engineered with OBSOLESCENCE OBSOLETE
®
in mind, the DSMC
2
RED EVF (OLED) is perfect for use with
WEAPON, EPIC, or SCARLET cameras. RED offers multiple mounting solutions for each camera type.
WARNING: DO NOT point the DSMC
2
RED EVF (OLED) eyepiece at direct sunlight. Continued exposure to direct
sunlight may damage the EVF. Point the eyepiece away from sunlight when not in use. Damage to the DSMC
2
RED EVF (OLED) caused by continued exposure to direct sunlight is not covered under warranty.
DSMC
2

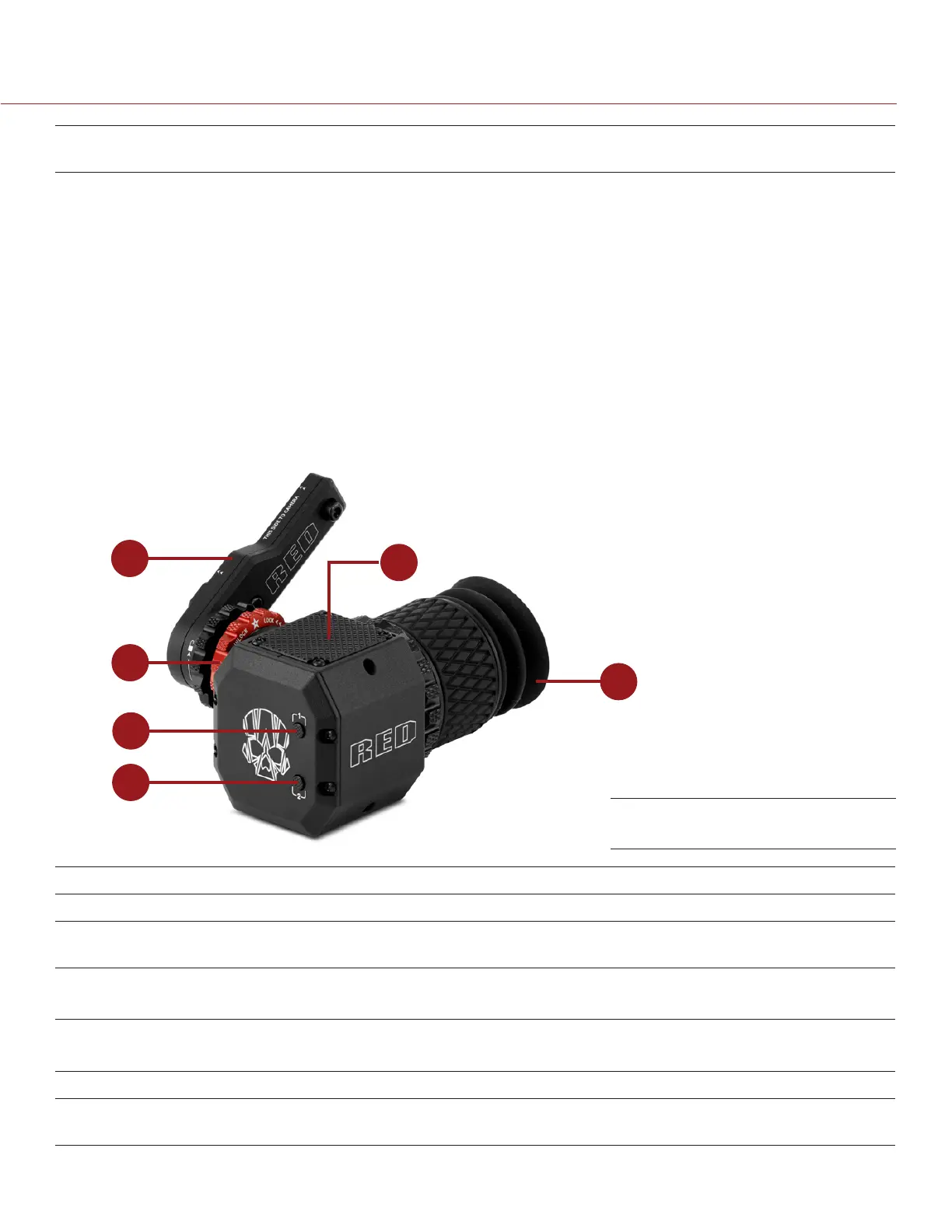

RED EVF FEATURES
1
6
2
3
4
5
# FEATURE DESCRIPTION
1 DSMC
2
RED EVF Mount The DSMC
2
RED EVF Mount
2 EVF connector
1
Custom digital video and power interconnection between the EVF and
other RED devices; Pinout not published
3 Key 1 Programmable key
Magnify: Toggle
4 Key 2 Programmable key
Exposure Check: Toggle
5 Mounting point Mounting point for the DSMC
2
RED EVF Mounting Plate (Top)
6 DSMC
2
RED EVF
Modular Optical Block
Fully coated with a > 32° field of view
1. Not visible. Shown with the DSMC
2
RED EVF Mount attached.
DSMC
2
RED EVF
