RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 168

SET UP MOTION CONTROL (MOCO)

Motion Control, or “MoCo” for short, is a form of sensor synchronization used to automate precision camera

movements required for special effects and difficult shots. Motion Control uses GPIO signals transmitted using the

SYNC (GPI) and CTRL (GPO) ports on the camera BRAIN or a connected Pro I/O Module or REDCAST Module.

For more information on GPIO connections, go to “Input/Output Connectors” on page 200.

NOTE: When using MoCo, set the frame rate to be at least two times (2x) the fastest trigger rate used. When

using MoCo, REDCODE is calculated based on FPS/2. Therefore, if you are in MoCo mode, and the frame rate

is 100.83 FPS, the maximum REDCODE is calculated based on a frame rate of 50.415 FPS.

NOTE: HDRx is not available when MoCo is enabled.

NOTE: Genlock and timecode can also be used with MoCo.

To set up MoCo, follow the instructions below:

1. Connect the Motion Control device to the camera using a 3BNC-to-00 LEMO Sync Cable.

‒ Sync In: Connect the white BNC connector to the Motion Control device and the 00B LEMO connector

to the SYNC port on the BRAIN.

‒ Sync Out: Connect the yellow BNC connector to the Motion Control device and the 00B LEMO connec-

tor to the CTRL port on the BRAIN.

2. Go to Menu > Settings > Setup > GPIO/Sync > Sync.

3. Select MoCo from the Sensor Sync Mode drop-down menu.

4. Select the BRAIN GPIO tab.

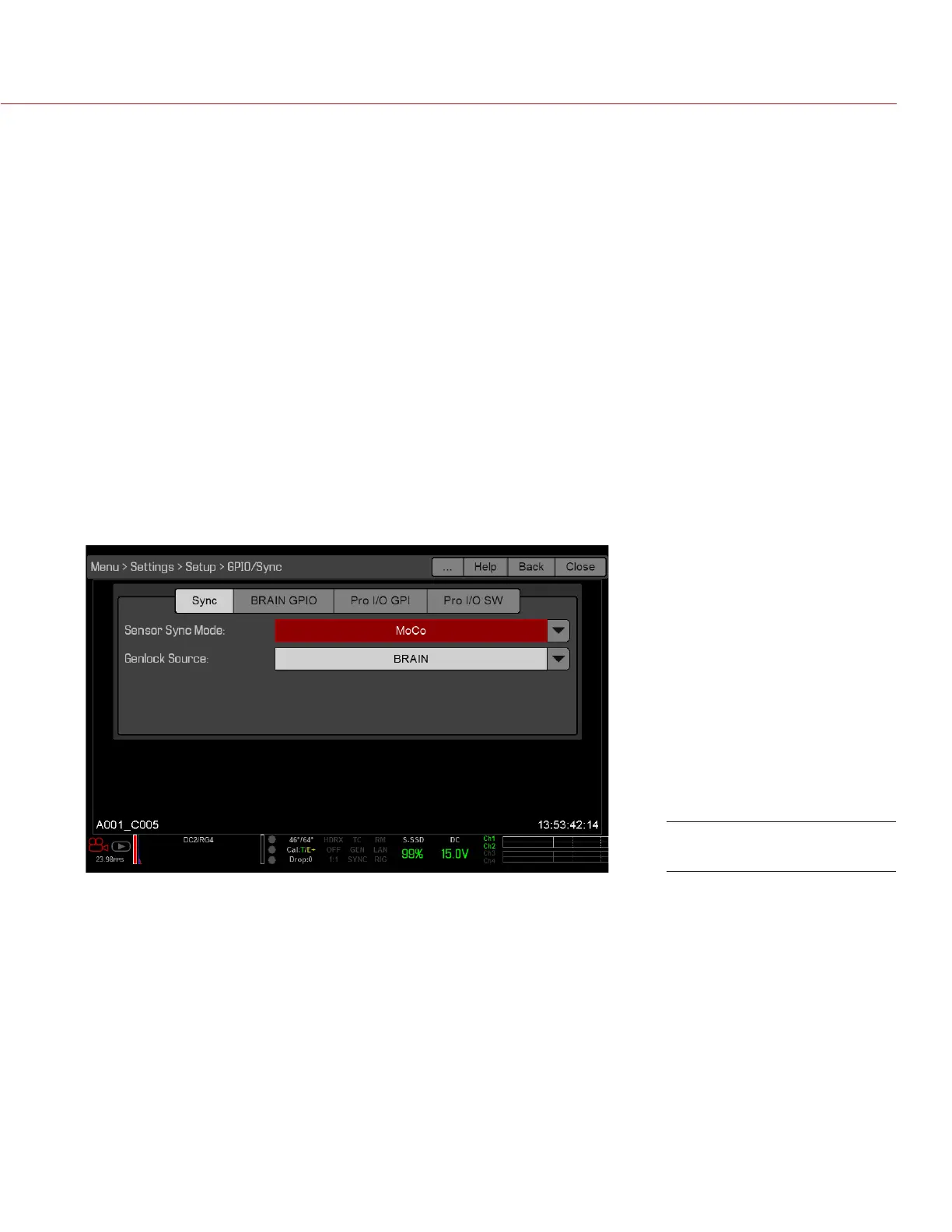

MoCo GPIO/Sync Settings
