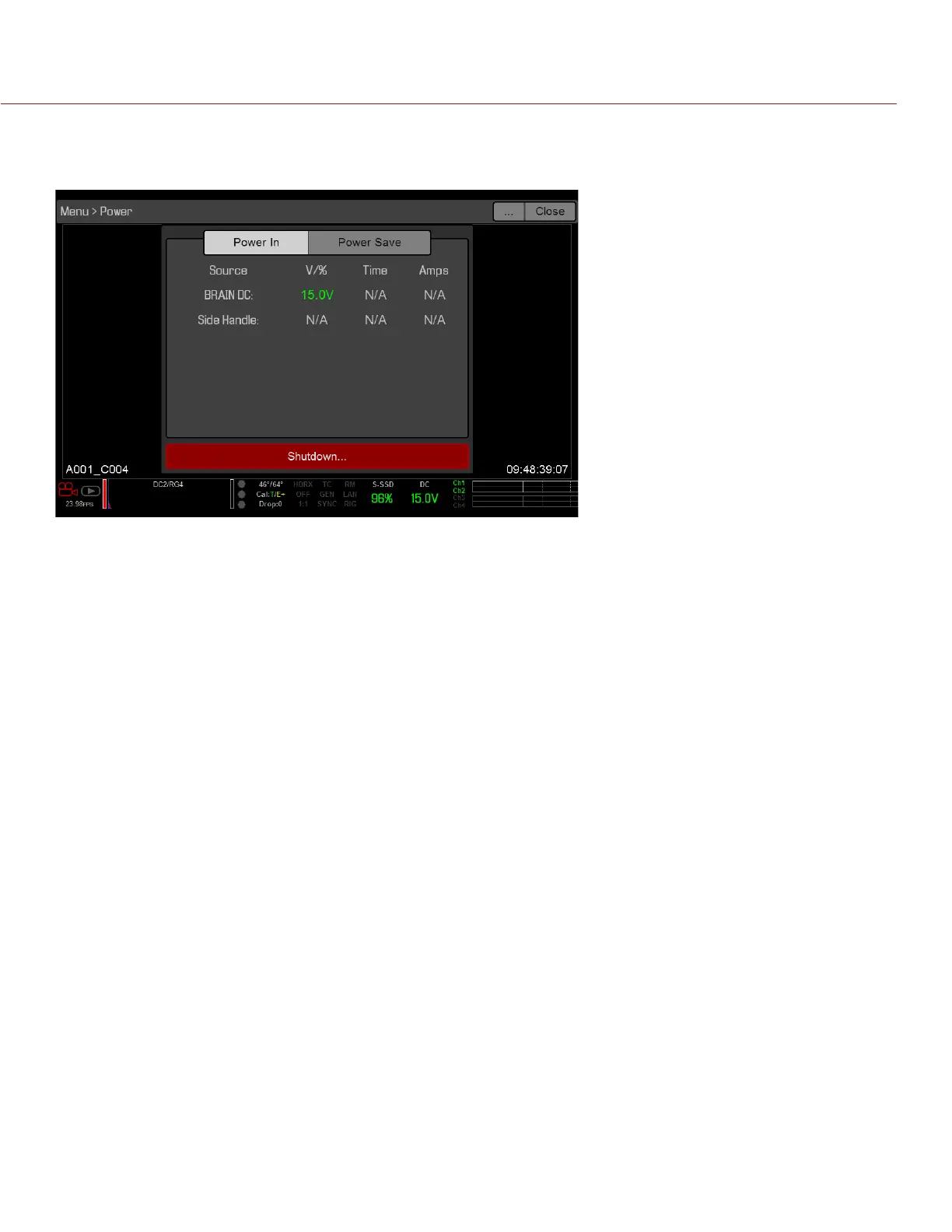

POWER MENU
The Power menu displays the power status of all attached power sources and allows you to turn off the camera.
NOTE: For more information about powering the DSMC, see the DSMC Power Operation Guide, available at
www.red.com/downloads.
POWER IN
The power status displays for the BRAIN DC, DSMC Side Handle, Rear 1, Rear 2, Rear 3, and Rear 4. The menu
displays the voltage of the source or the percentage of the power left, as well as the time left, if applicable.
POWER OUT
The Power Out menu shows the status of the power out ports on the Pro I/O Module and the +1 Adaptor Module
. The statuses are:
N/A: The device is not present.
OK: The power out port is functional.
FAULT: A short or overcurrent tripped the electronic fuse. Remove the device that is connected to the
module, as it may be drawing too much power. Select RESET to clear the fault.
POWER SAVE
You can select the following power saving options (the default for each is Never):
Low Power Preview: The camera uses a lower amount of power after the specified period of inactivity.
Sleep: All monitors turn off and keys do not perform mapped actions after the specified period of inactivity.
Tap the touchscreen or press a key to exit Sleep mode.
Auto Shutdown: The camera turns off after the specified period of activity.
SHUTDOWN
Shutdown controls are interlocked to prevent the camera from being accidentally turned off. For more information
about different ways to turn off your camera, go to “Turn Off the BRAIN” on page 35.
1. Go to Menu > Power.
2. Select Shutdown.
The Shutting Down... message displays and the camera turns off.
