RED DSMC OPERATION GUIDE: EPIC/SCARLET
COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J | 159

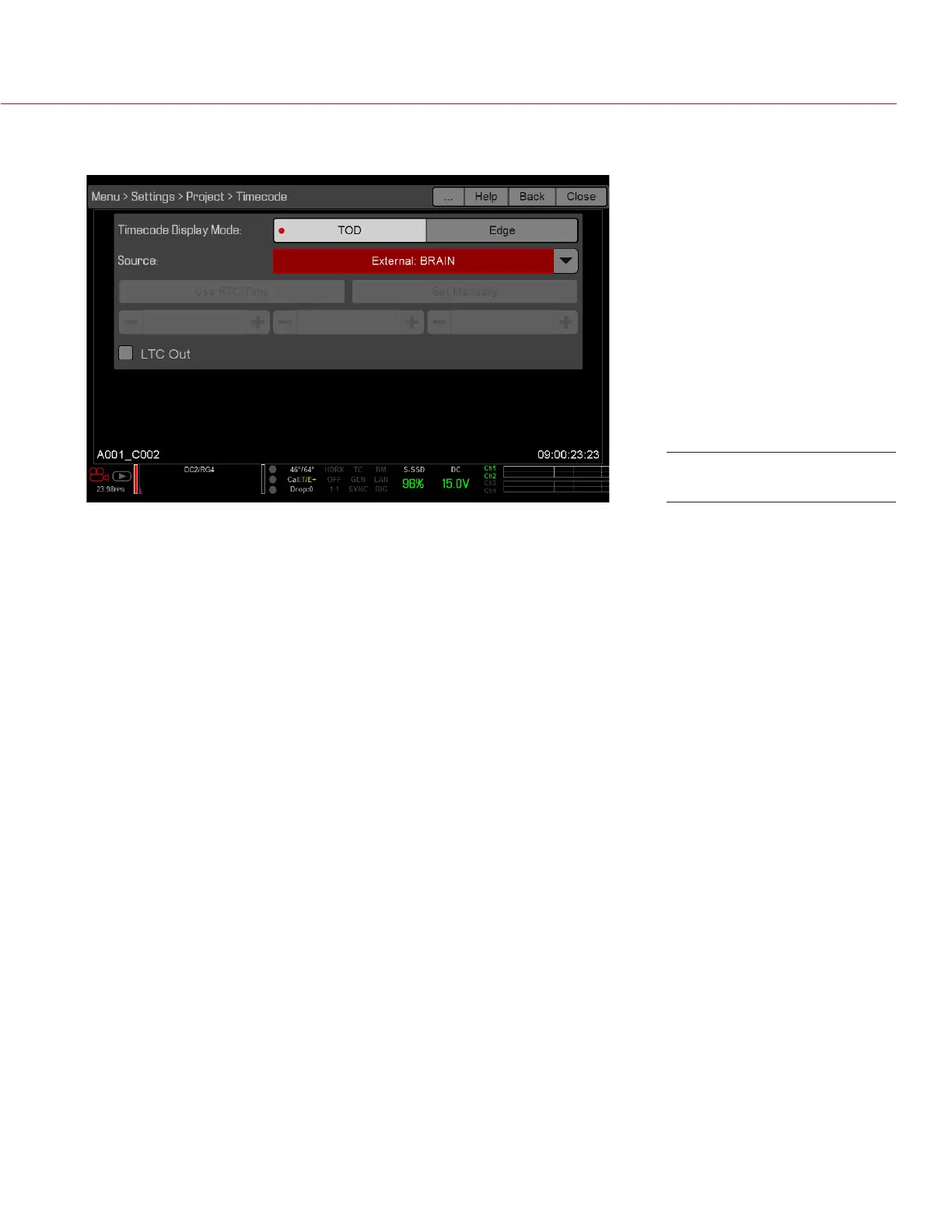

4. Set Source to External: BRAIN.
The TC indicator in the Lower Status Row turns green when an external timecode source is locked.
NOTE: When an external source is selected but not present, timecode displays User Provided settings.
REQUIRED CABLE
 790-0154: 3BNC-to-00 LEMO Sync Cable
Source: External: BRAIN

RED Epic Specifications

General

Sensor	Mysterium-X
Resolution	5120 x 2700 (5K)
Lens Mount	PL Mount
Frame Rates	1-120 fps
Dynamic Range	13.5 stops
Recording Format	REDCODE RAW
Media	REDMAG (SSD)
Weight	5 lbs (2.3 kg) body only
Sensor Size	27.7 mm x 14.6 mm
Operating Temperature	32°F to 104°F (0°C to 40°C)
