RED SWITCHBLADE-M DISPLAY

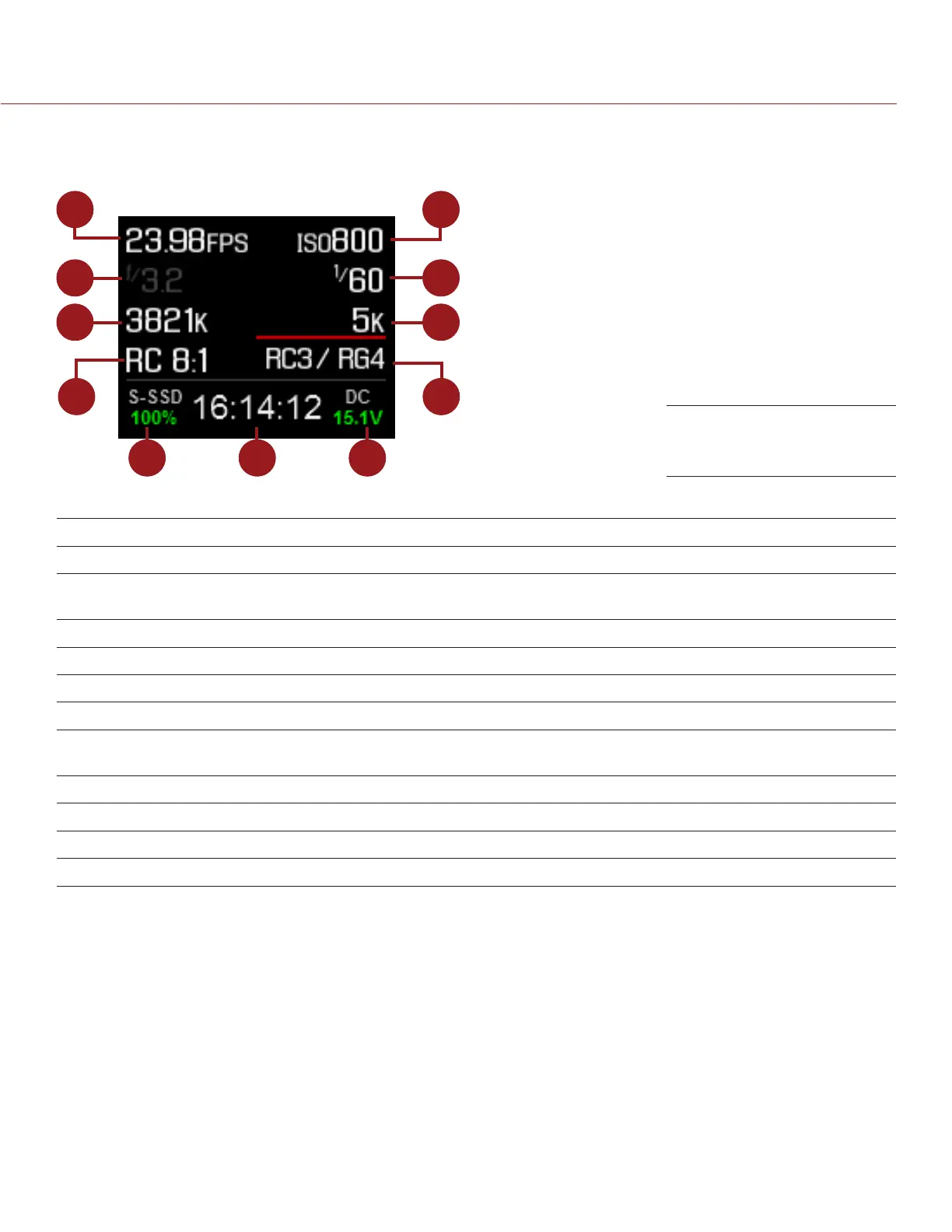

The RED Switchblade-M OLED display provides basic camera parameters during operation.
1
2
3
4
5 6 7
11
10
9
8
The RED Switchblade-M displays the following camera parameters:
# DISPLAY ITEM DESCRIPTION
1 Frame Rate Current Recording Frame Rate
2 Lens Information Displays aperture when a supported Canon, Nikon, or Cooke lens is
attached
3 White Balance Color temperature
4 REDCODE REDCODE compression setting
5 Media Status Displays media location and remaining media capacity
6 Timecode Current timecode value
7 Power Status Indicates DC supply voltage or % of remaining battery capacity including
current supply voltage
8 Color and Gamma Space Currently selected RED color and gamma space settings
9 Resolution Recording resolution
10 Shutter Speed Integration time or shutter angle
11 ISO Camera sensor sensitivity
RED Switchblade-M OLED
