RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 76

If you remove an LCD when an EVF is attached, then the EVF becomes the control monitor. If you then remove

the EVF when an HDMI monitor is attached, the HDMI monitor becomes the control monitor. If you then re-

attach the LCD, then the LCD is the control monitor again.

BRIGHTNESS

Control the brightness of each LCD and EVF. Move to the right for a brighter display; move to the left for a

dimmer display. Side UI LCD controls the brightness of the Switchblade-M LCD.

NOTE: A rear LCD/EVF is an LCD/EVF that is plugged into any rear RED module, such as the +1 Adaptor Module

or the Pro I/O Module.

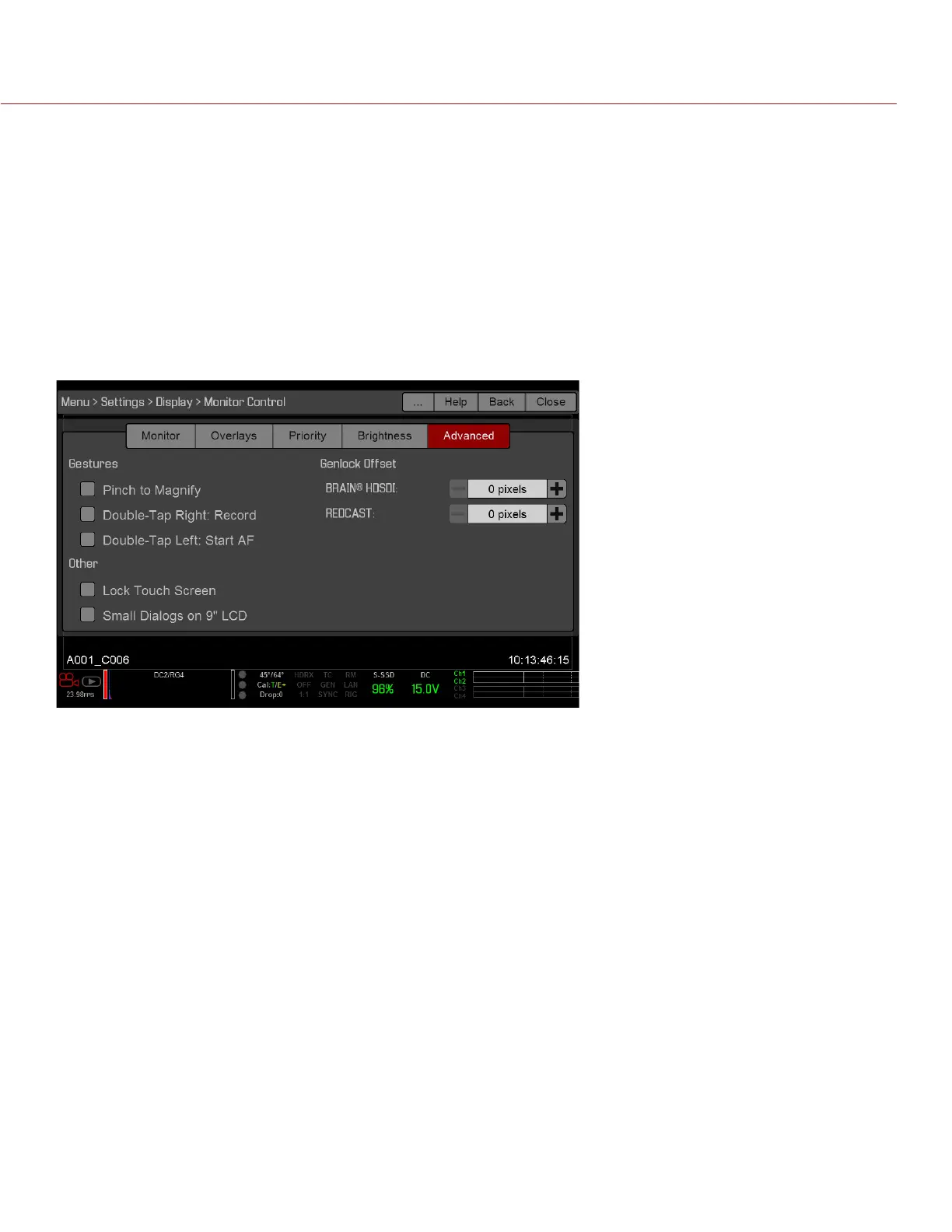

ADVANCED

Provides access to additional monitor settings.

GESTURES

 Pinch to Magnify: Move two (2) fingers apart or together to toggle 1:1 Magnify. For more information, go to

“Magnify” on page 71.

 Double-Tap Right 25% to Record: Double-tap the right 25% of the video area on the LCD to toggle record.

 Double-Tap Left 25% to Start AF: Double-tap the left 25% of the video area on the LCD to start autofocus

when compatible lenses are used.

For a list of compatible lenses, go to “Lens Mounts and Lenses” on page 208.

OTHER

 Lock Touch Screen: Touchscreen control is locked. To unlock, tap the screen and follow the on-screen

instructions.

 Use Small Dialogs on 9" LCD: The dialogs on the RED Touch 9.0" LCD are smaller than the default dialogs.

GENLOCK OFFSET

Offset the video of the selected output (HDSDI or REDCAST Module) to align it with the genlock signal:

 Negative offset: Advances the video, so the video reaches the switcher earlier than it would otherwise.

 Positive offset: Advances the video, so the video reaches the switcher later than it would otherwise.
