USB input
MZERO Stand Alone Programmable Safety Controller includes a mini USB 2.0 connector for
connection to a Personal Computer with MZD (MZERO Designer) configuration SW installed.
A USB cable of the correct size is available as an accessory (CSU).

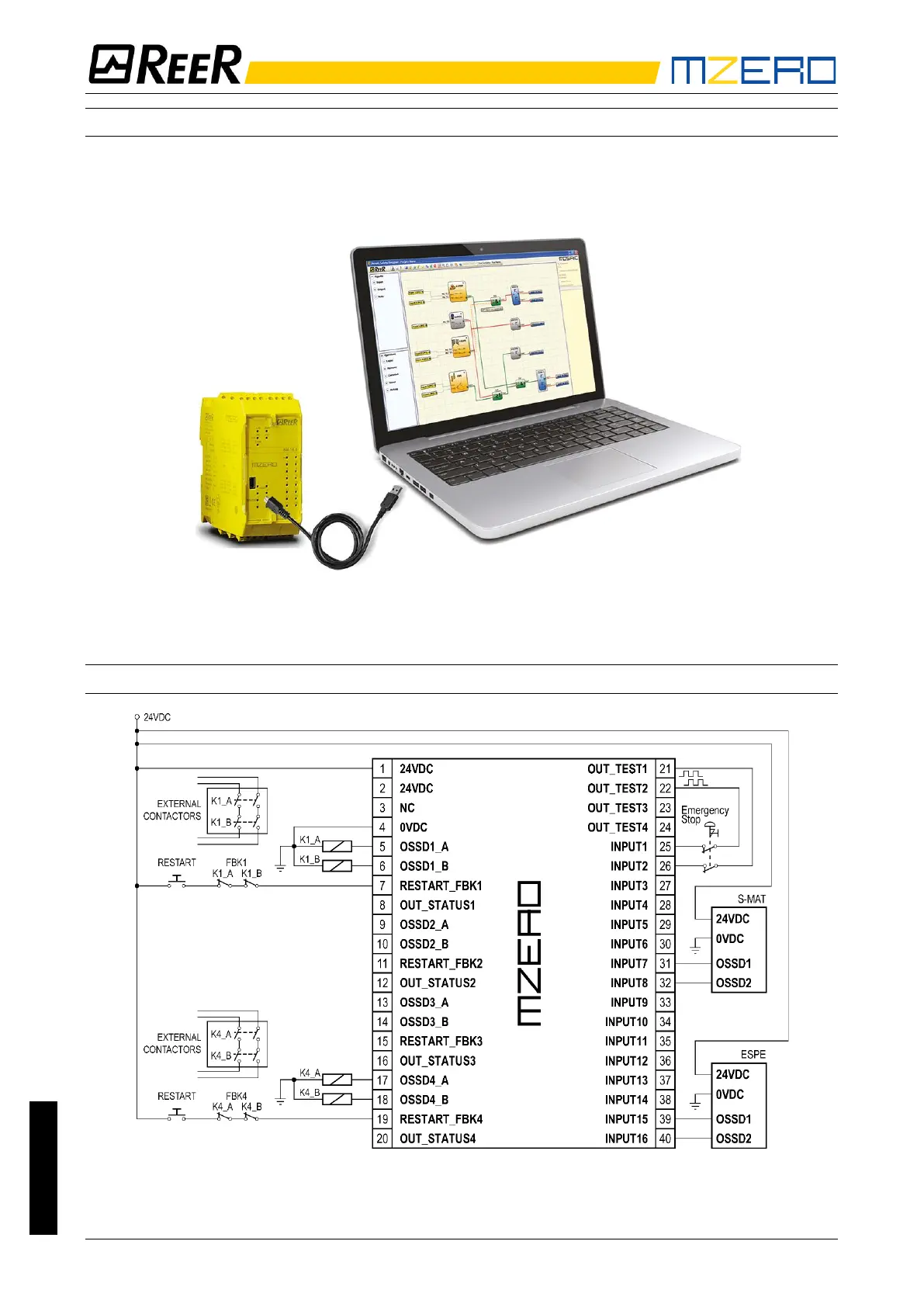

Figure 3 - USB 2.0 front panel connector for PC
Example of connection of MZERO to the machine control system
Figure 4 - Example of connection
