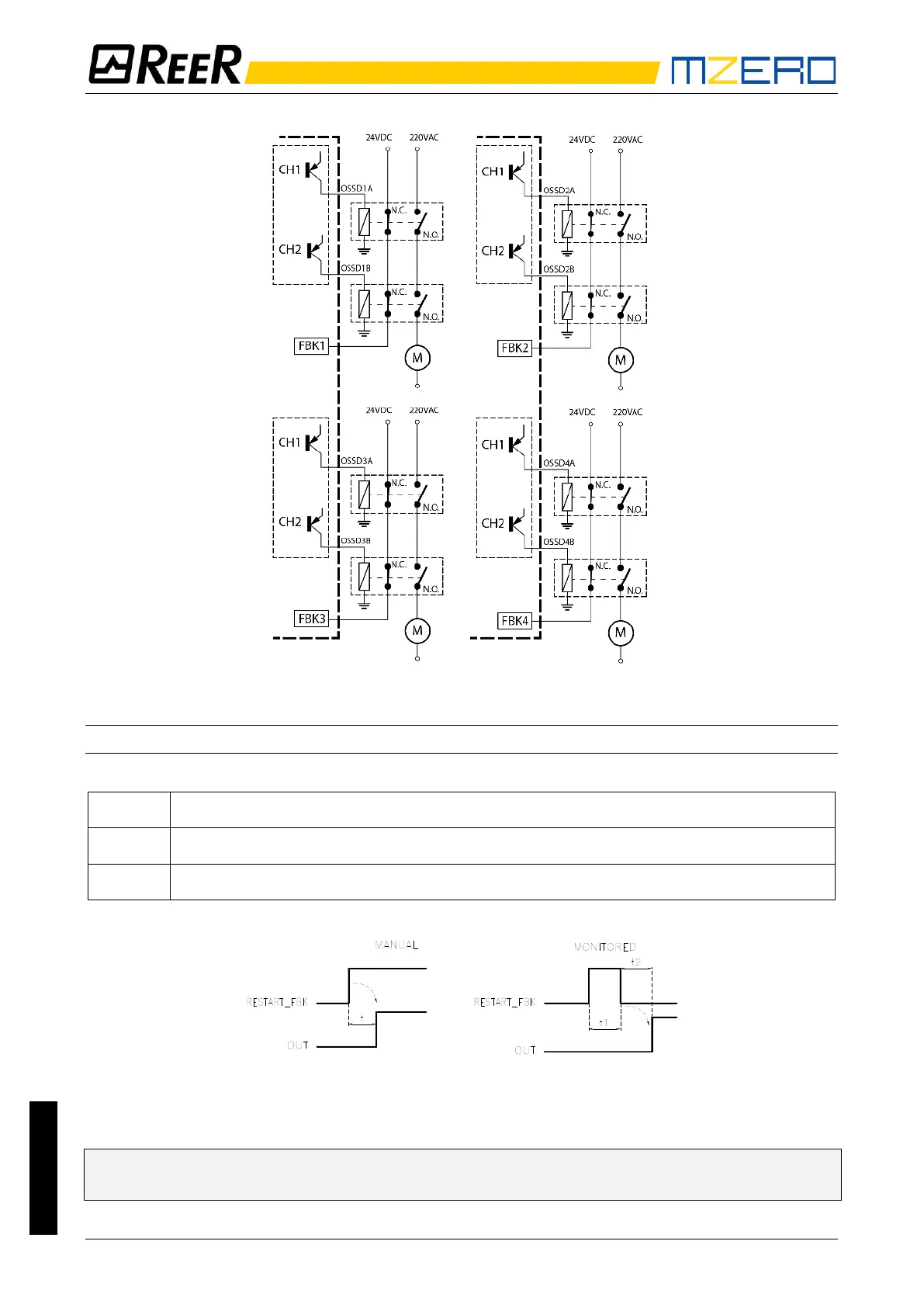

Figure 8 - Configuration with dual channel OSSD outputs (safety category SIL3/Pl e)
OSSD OUTPUTS CONFIGURATION
Each OSSD output can be configured as shown in Table 4:
Automatic
The output is activated according to le configurations set by the MZD SW only if the corresponding RESTART_FBK
input is conected to 24VDC.
Manual
The output is activated according to le configurations set by the MZD SW only if corresponding RESTART_FBK
input FOLLOWS A LOGIC TRANSITION OF 0-->1.
Monitored
The output is activated according to le configurations set by the MZD SW only if the corresponding RESTART_FBK
input FOLLOWS A LOGIC TRANSITION OF 0-->1-->0.
Table 4
t = 250ms
250ms < t1< 5s
t2 = 250ms
Figure 9
➔ It is not allowed the connection of external devices to the outputs, except as expected in the
configuration performed with the MZD software.
