ON BLOCK INPUT / OUTPUT
• Copy / Paste
• Delete
• Delete all the assigned pins
• Alignment with other functional blocks (multiple selection)
• On-line Help
• Monitor Mode: Show / Hide Properties window
• The block Status: pin input enable / disable logical negation
ON BLOCK OPERATORS
• Copy / Paste
• Delete
• Alignment with other functional blocks (multiple selection)
• On-line Help
• On input pin: activate / deactivate logical negation
• Monitor Mode: Show / Hide Properties window
ON TERMINALS
• Alignment with other blocks
ON CONNECTION (WIRES)
• Delete
• Display full path of the connection (network)

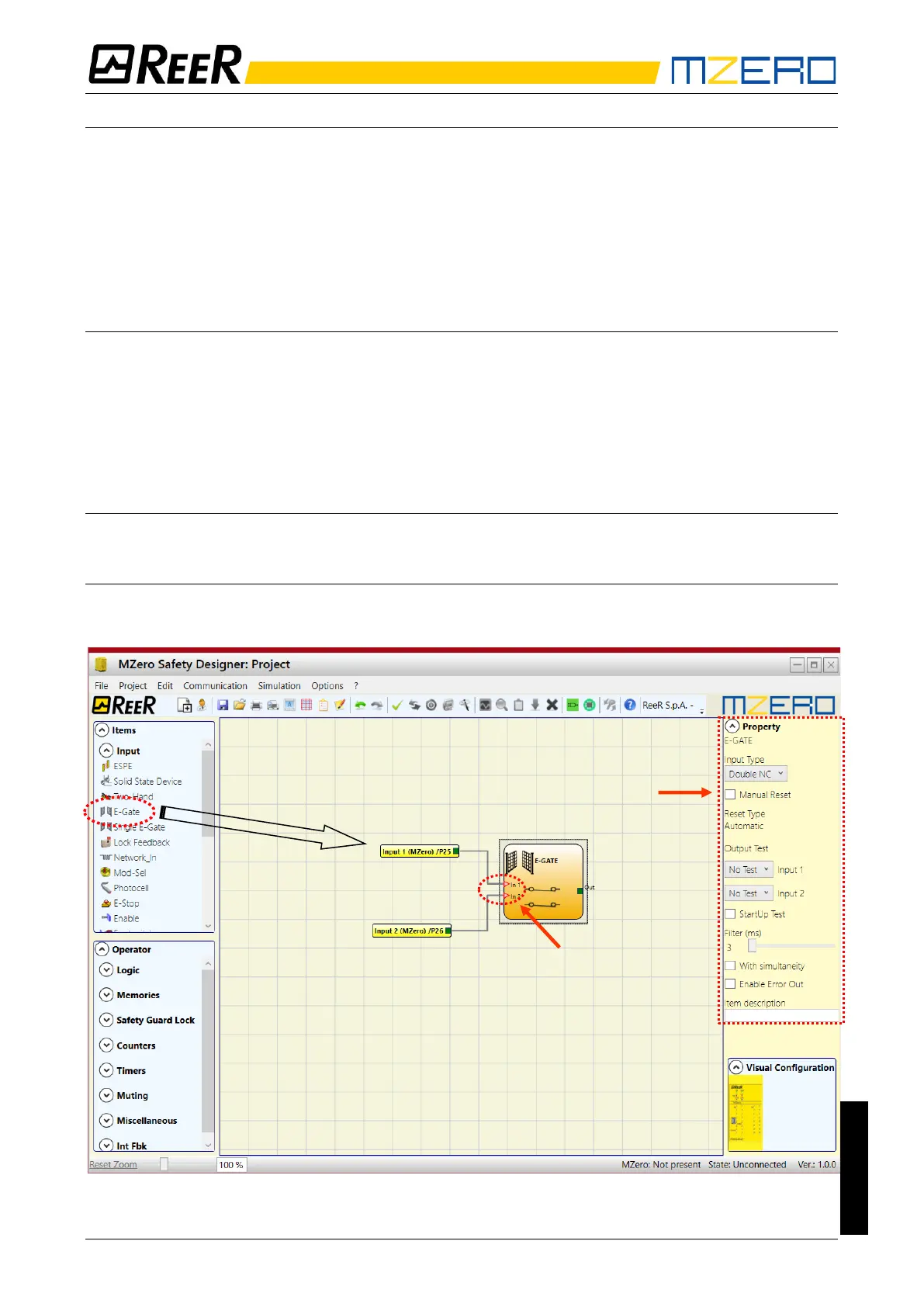

Figure 19
DESIGN
AREA
OBJECT
PROPERTIES
WINDOW
Connection
start point
