Reer MZERO - Page 98

STAND ALONE PROGRAMMABLE SAFETY CONTROLLER
98 8541403 • 19/07/2021 • Rev.1
English
"With occupied sensors"
selected
Occupied
sensor
Light
curtain
occupied
Input
Override
request
Override
output
X
X
-
0
1
1
-
-
X
0
1
1
X
-
0
1
1
X
X
0
1
1
Timeout (sec): Used to set the time, between 10 sec and infinity, by which the Override function
must end.
Override mode: Used to configure the type of Override (pulsed or maintained action).
With OverOut: Used to activate an Override active Signaling output (active when high).
With Request: Used to activate a Signaling output (active when high) indicating that the Override
function can be activated.
Manual Reset:
• Should the INPUT be active (TRUE), the reset enables the output of the function block.
• Should the INPUT be not active (FALSE), the output of the function block follows the
OVERRIDE request.

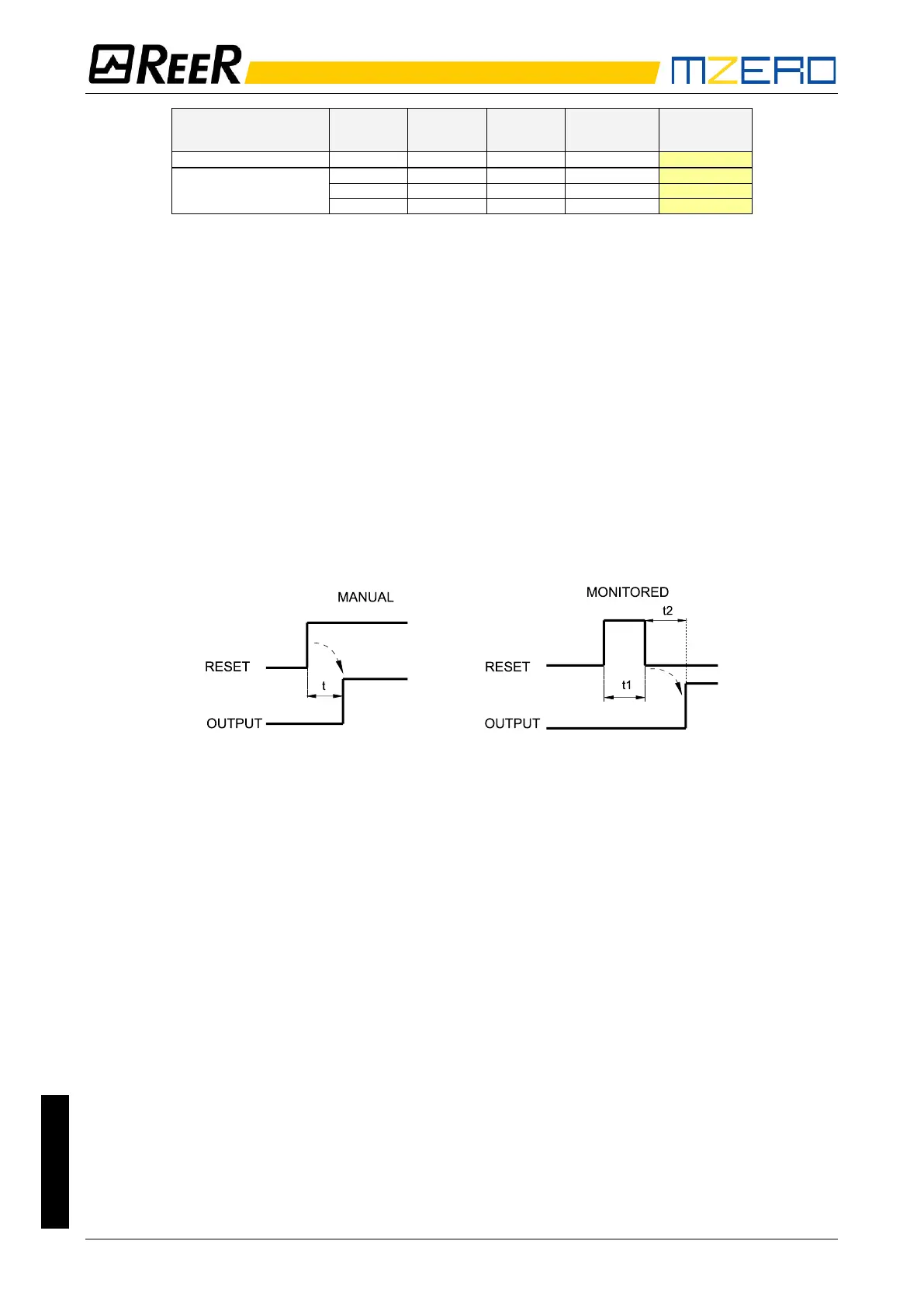

There are two types of reset: Manual and Monitored. When Manual is selected the system only
verifies the signal's transition from 0 to 1. If Monitored is selected the double transition from 0 to
1 and then back to 0 is verified.
t = 250 ms
5s > t1 > 250 ms
t2 = 250 ms
