• The TRD1 register counts the order of 1, 0, FFFFh, 0, 1 when changing from decrement to increment.
The UDF bit is set to 1 by the order of 1, 0, FFFFh operation. Also, when the CMD1 to CMD0 bits in the
TRDFCR register are set to 10b (complementary PWM mode, buffer data transferred by the underflow in
the TRD1 register), the content in the buffer register (TRDGRD0, TRDGRC1, TRDGRD1) is transferred
to the general register (TRDGRB0, TRDGRA1, TRDGRB1). For the order of FFFFh, 0, 1 operation, data
are not transferred to the register such as the TRDGRB0 register. Also, at this time, the OVF bit remains
unchanged.

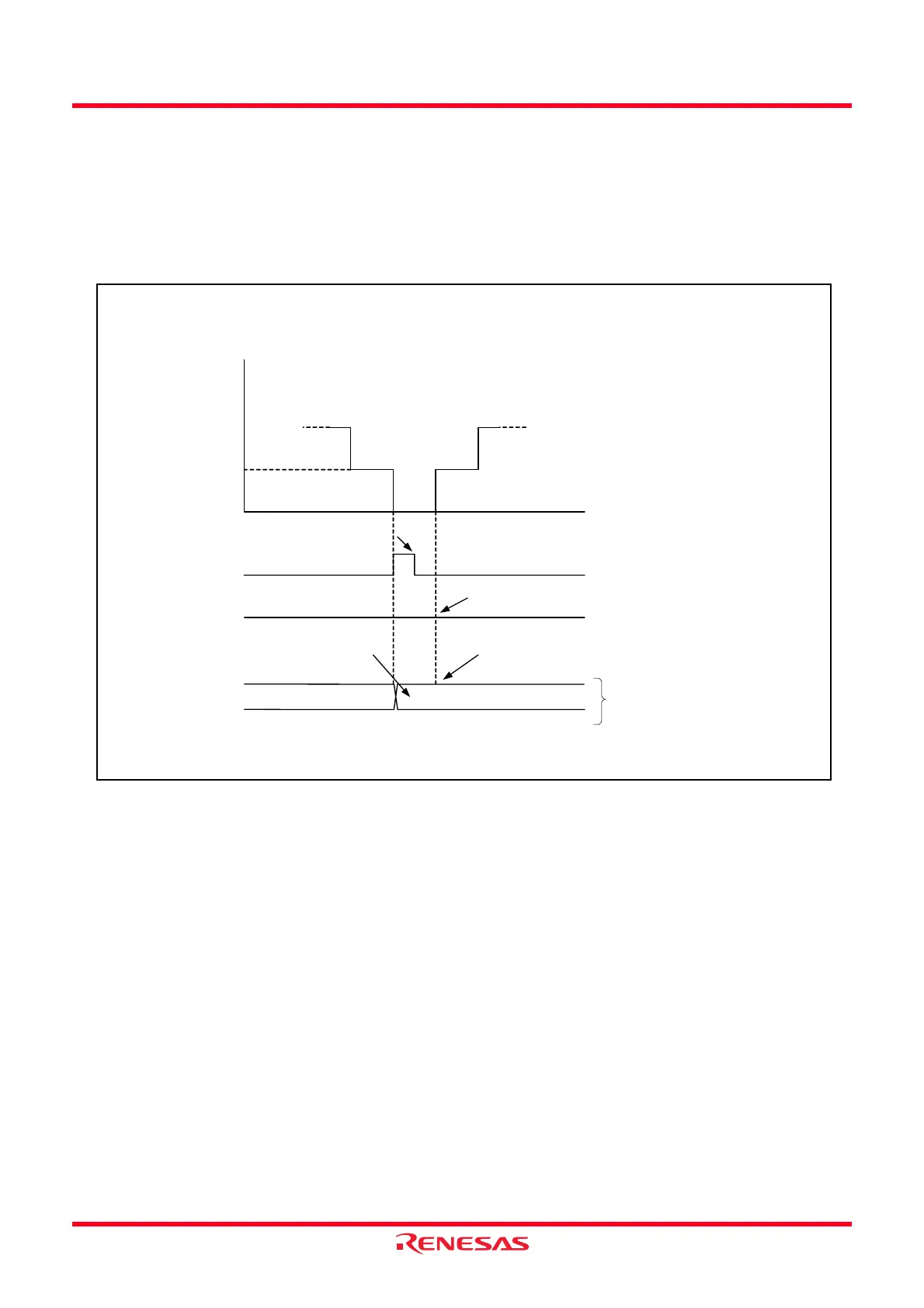

Figure 14.111 Operation When TRD1 Register Underflows in Complementary PWM Mode
No change
UDF bit in
TRDSR0 register
Transferred from
buffer register
TRDGRB0 register
TRDGRA1 register
TRDGRB1 register
Count value in TRD0
register
Set to 0 by a program
Not transferred from buffer register
When the CMD1 to CMD0 bits in the
TRDFCR register are set to 10b.
(Transfer from the buffer register to the
general register when the TRD1 register
underflows)
OVF bit in
TRDSR0 register
FFFFh
1
0
1
0
0
1
