24

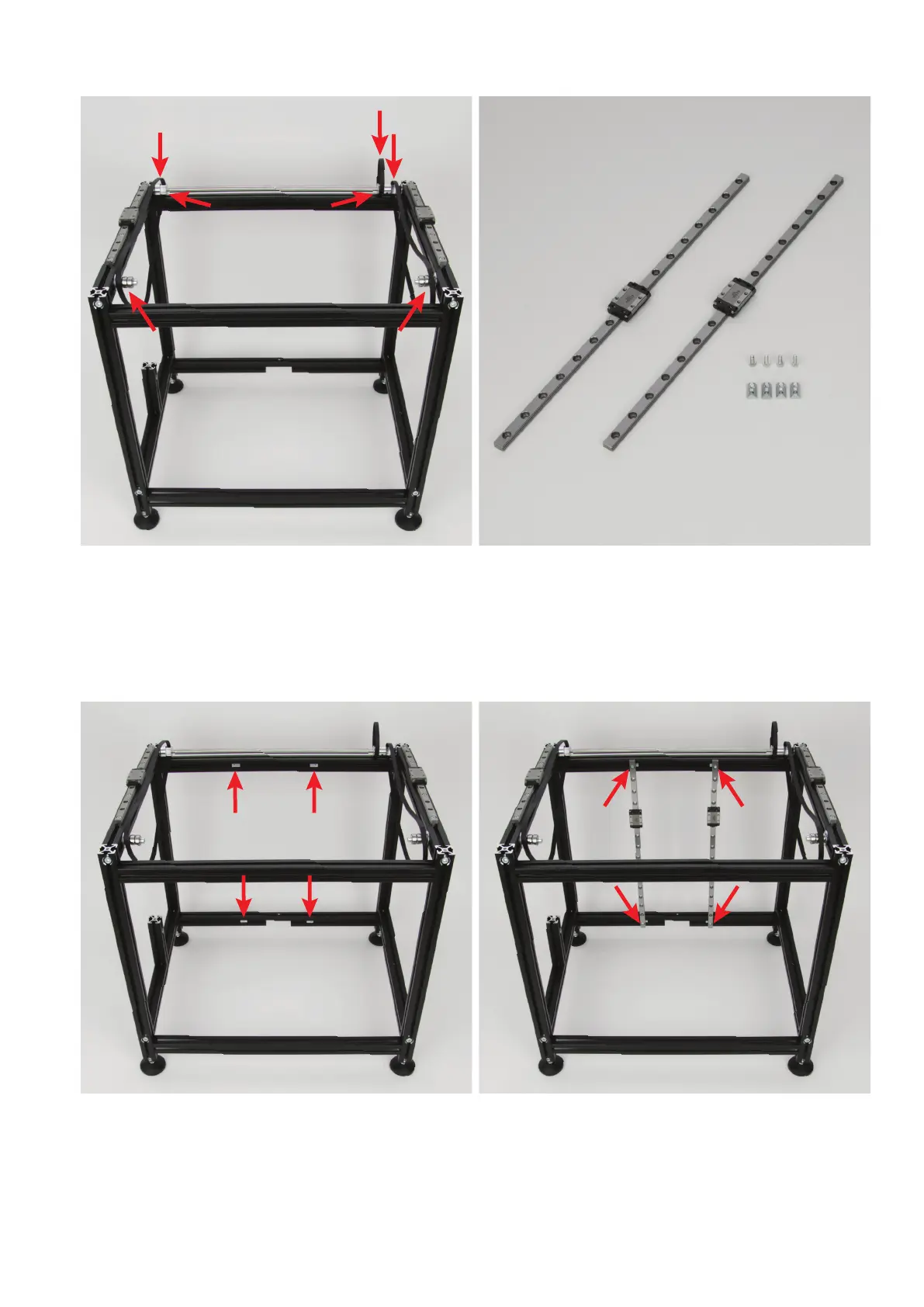

InstallationoftheguiderailsfortheZ-direction
Slidethetwoknurlsonthedeectionshafteachtotheoutsideinthe
directionofthesidepart(1).
Thenattachthetoothedbeltstothe knurls(2).Placethetwolong
toothedbeltsprovisionallyoverthetwobelttensioners(3).
2xguiderailwithguidecarriage(320mm)
4x cylinder head screw M3x8
4x slot nut M3
Push2slotnutseachintothetwoaluminiumprolesinstalledcross-
wise at the rear as illustrated. The slot nuts each must be aligned with
the parallel bore.
Attachthetwoguiderailswithguidecarriagetothetwoproles,using
the cylinder-head screws as illustrated.
Only tighten the 4 screws slightly!
1 1
2
2
3 3
