Renkforce RF500 Maker Construction Kit - Page 34

34

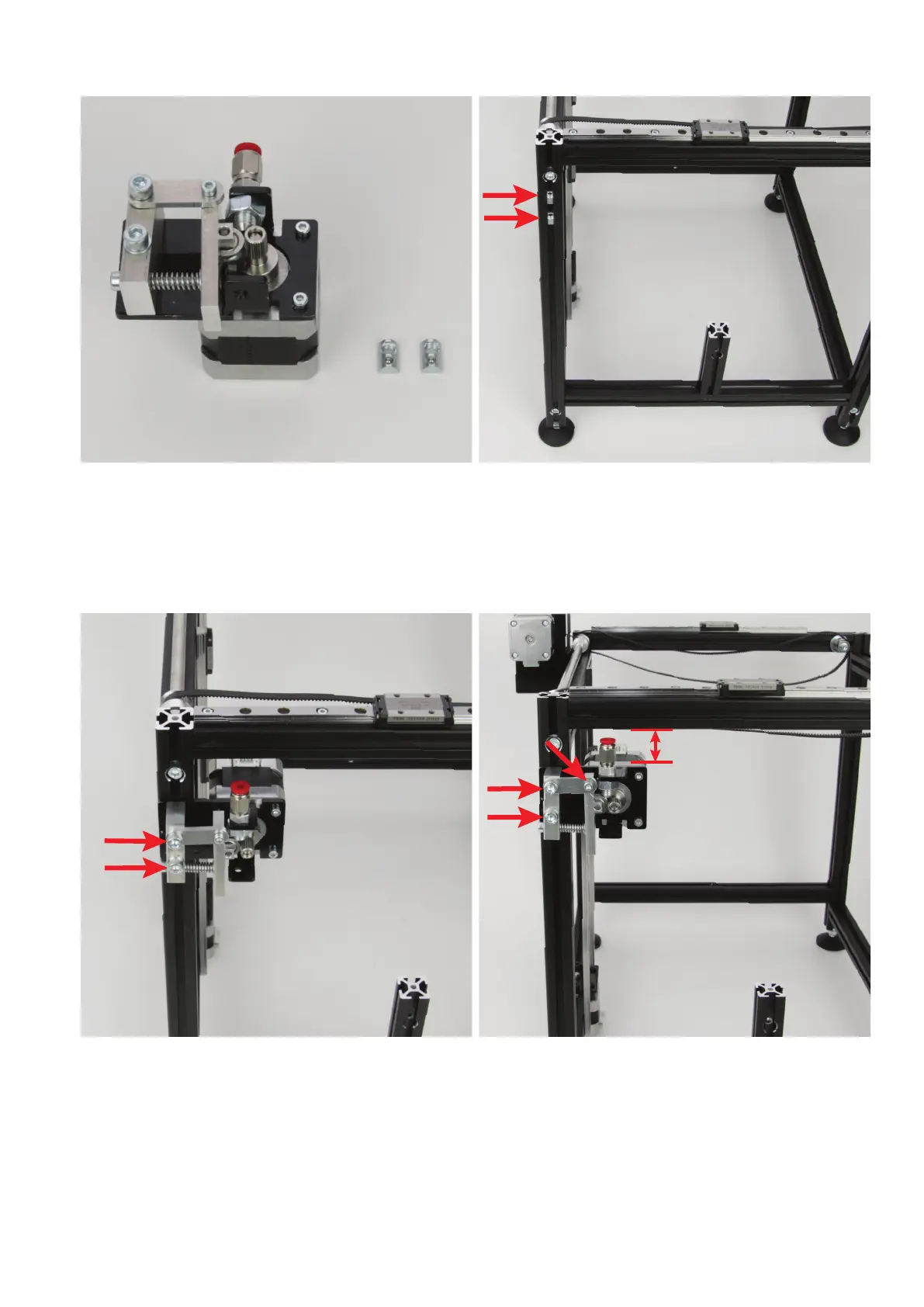

Installtheinfeedunitonthebasicframe
1x infeed unit
2x slot nut M5
Pushthe2slotnuts,asillustrated,intotherearaluminiumproleof
the left side part. The threads must both point upwards.
Align the two slot nuts with the two M5 cylinder-head screws of the
infeed unit.
Attach the infeed unit in the two slot nuts. Tighten the two cylinder-
head screws not entirely yet.
Now align the infeed unit. The distance between the lower edge of
theupperaluminiumproleandtheupperedgeofthemotorshould
be about 28 mm.
Tighten the two cylinder head screws M5.
Finally, tighten the M3-cylinder-head screws of the ball bearing holder
until the ball bearing holder can still be moved slightly.
