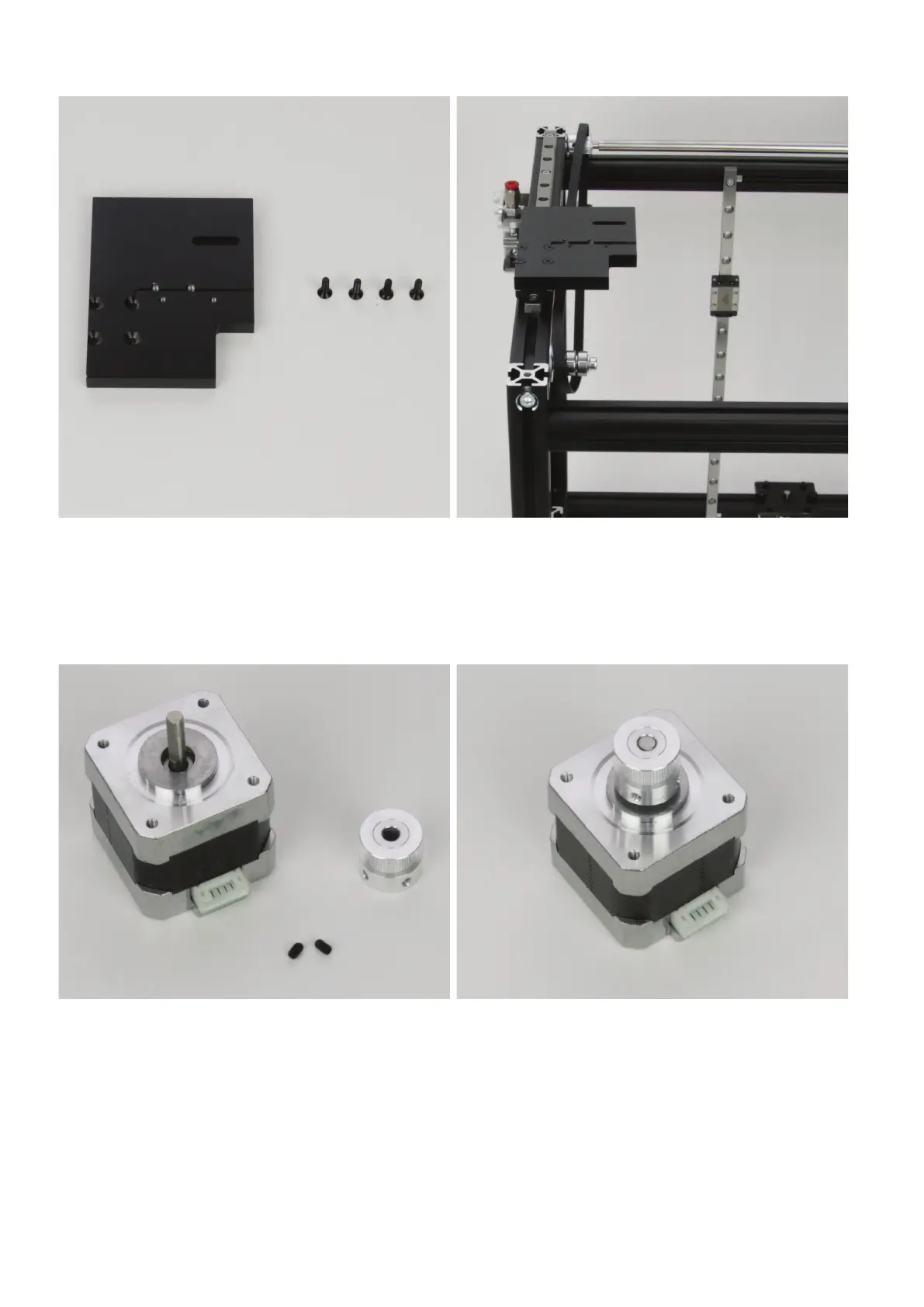

Installationoftheguidecarriageplateontheleftofthebasicframe
1x guide carriage plate left
4x countersunk head screw M3x10 black
Install the left guide carriage plate with the 4 recessed-head screws
ontheguidecarriageoftheleftY-guiderail.
Optionally, the screws can be secured with threadlocker varnish.
AttachmentofthesprockettotheX-motor
1x actuator
1x sprocket 5 mm
2x threaded pin M3x5
Push sprocket onto axe of the actuator and attach it with 2 threaded
pinseach.Athreadedpinmustmeettheattenedsideoftheaxis.
Themotoraxismustendushwiththeupperedgeofthesprocket.
Optionally, the threaded rods can be secured with threadlocker var-
nish.
