39

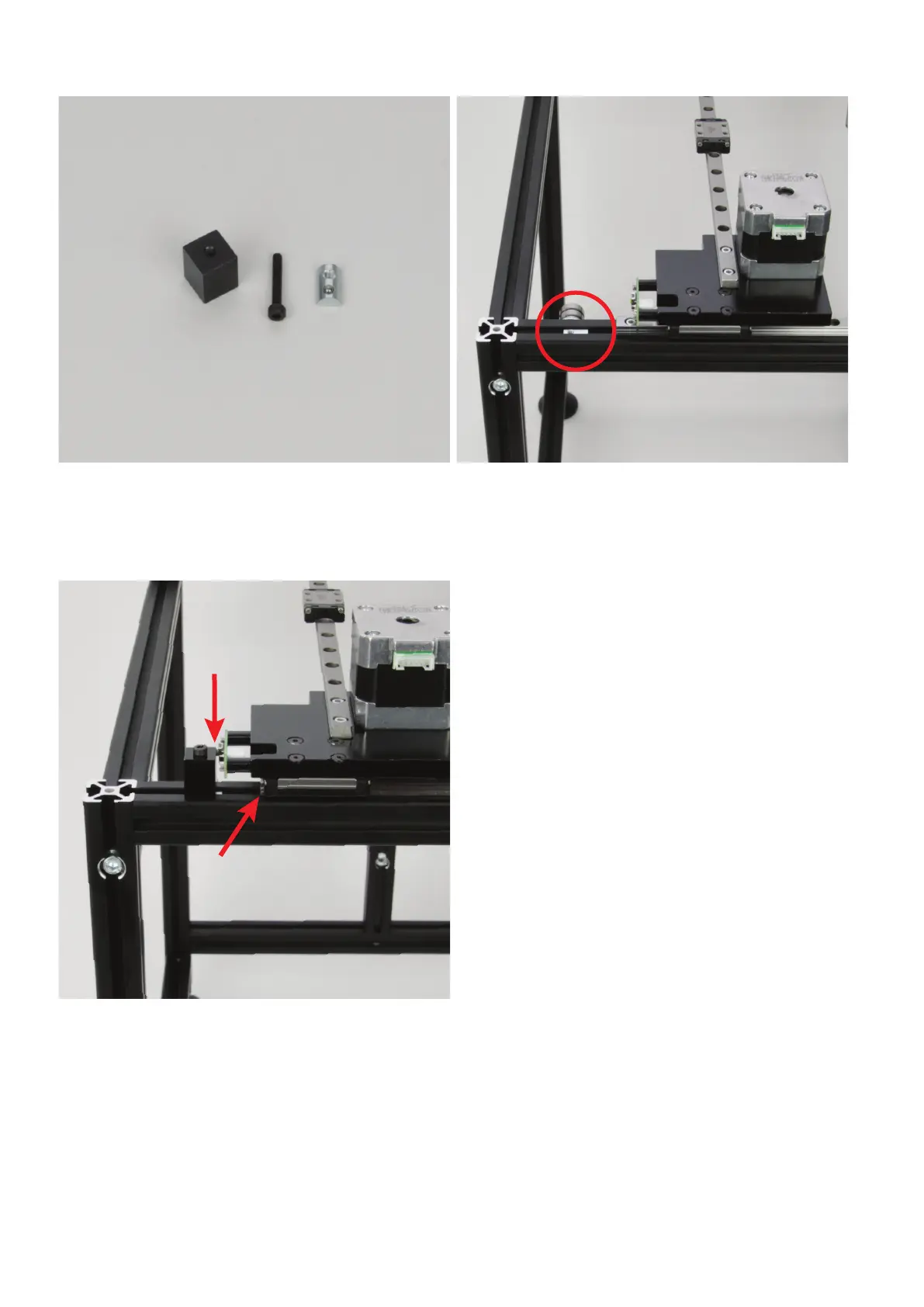

InstallationoftheendstopfortheY-direction
1x aluminium block, black
1x cylinder head screw M3x20
1x slot nut M3
Inserttheslotnutintothetopofthealuminiumprolewiththeright
Y-guiderailasillustrated.
Attach the aluminium block in the slot nut with the cylinder-head
screw.
The aluminium block must be aligned as follows:
Whenthelimitswitchhitsthealuminiumblockandisactuated(1),the
guidecarriagestillmustbecompletelyplacedontheguiderail(2).
However,itshouldbeonly0.5to1mmfromtheendoftherail(2).
1
2
