Service – Timers - GPTimer
There are 40 General Purpose timer channels; 32 channels can be
programmed as either a master or a slave channel. 8 channels are
dedicated master channels. 2 On/Off times can be programmed
for each channel.

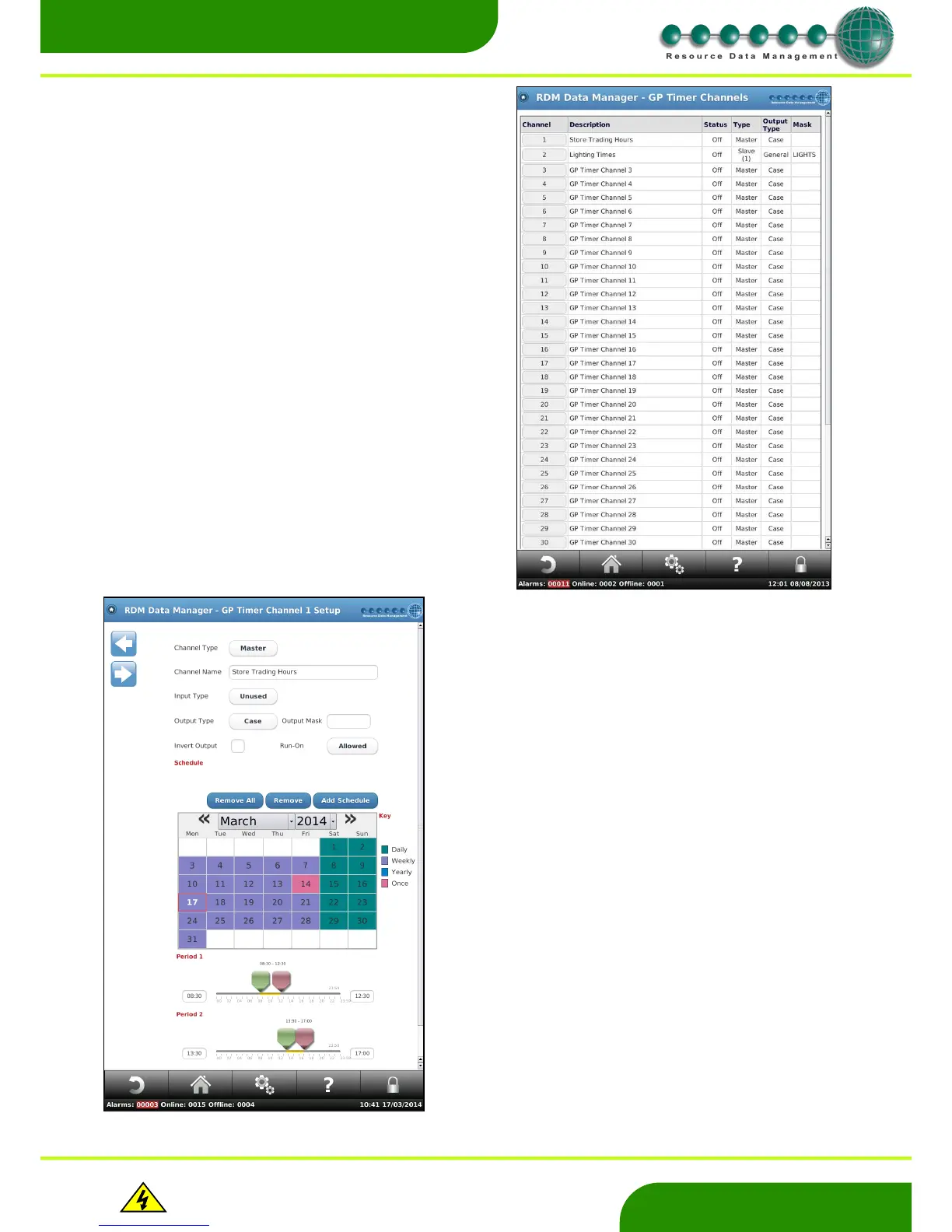

To select the channel you wish to program, press on the channel
number to highlight it and then press again to enter the channel
setup. You will then see the following screen.
Channel Type
Select either master or slave from the menu. If slave is selected, choose a master
channel and enter the +/- offset.
Channel Name
Type in a meaningful name for the channel.
Note: for Global Channels the Channel Type, Master, and the channel name, e.g.
Global GP Channel 1, cannot be changed.
Input Type
Can be set to Force On, Force Off and Toggle.
Output Type
Can be set to Case, General, Local Relay and Transmit.
Case: Requires an output mask
General: Requires an output mask and relay number
Local relay: Requires a relay number
Transmit: Requires a Plant TDB controller’s mask.
Invert
Lets you invert the output if required.
Run – On:
Lets user allow/disallow whether the GP run-on feature can operate on this
channel.
Within this page is the channels timer schedule
To set up a schedule such as the one illustrated, press the “Add Schedule” button
and follow the on-screen instructions as shown on the next page.
