The IO modules should be configured here according to the acutal application.
The figure below shows the two input and output words by default. User can
freely configure the IO modules from 1 to 15 words.

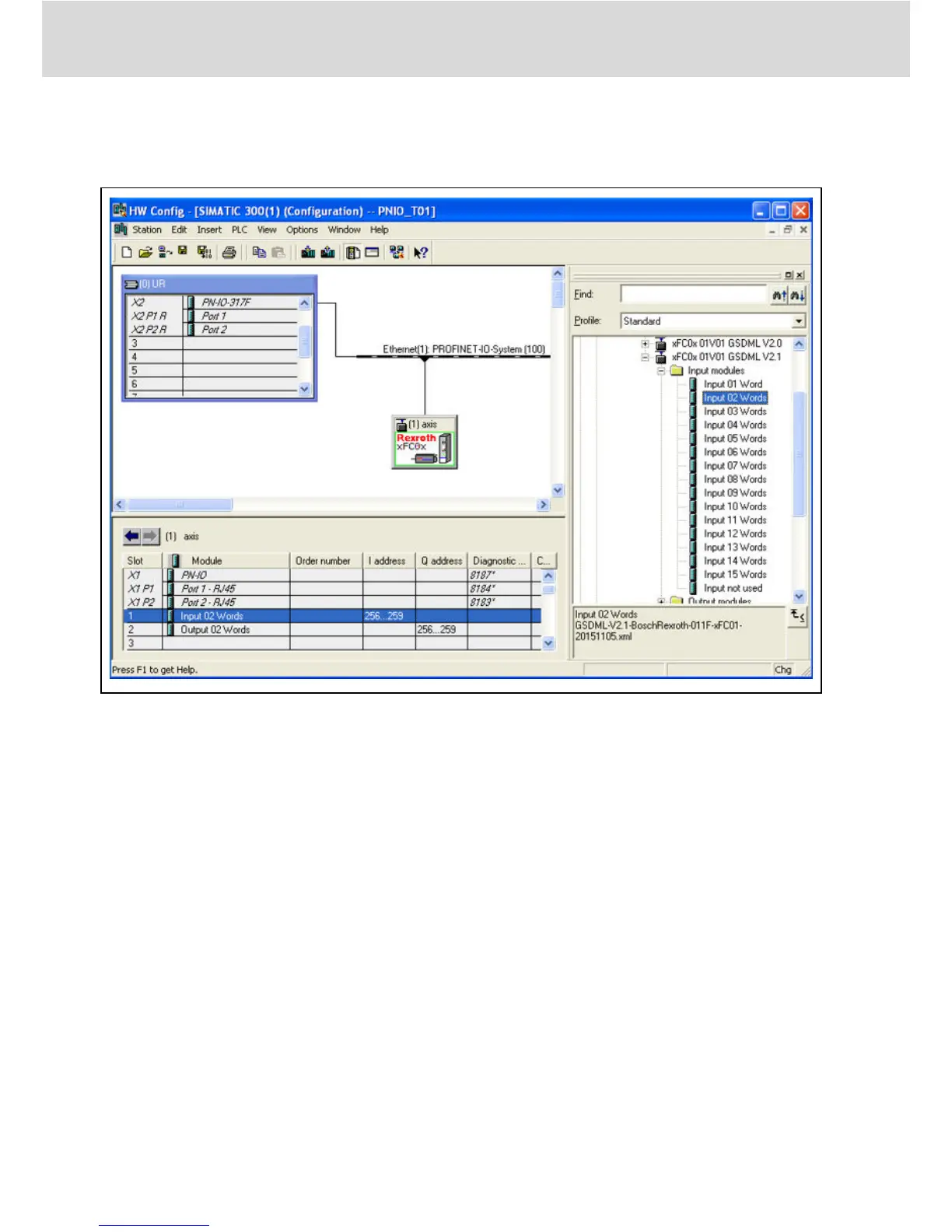

Fig. 5-3: Hardware configuration window
5.2.3 Topology
The MEP communication extension card integrates a Cut-Through-Switch that
enables the possibility for connecting several MEP communication extension
cards in a line topology as an alternative to the typical star topology.
Typically a mixed line and star topology connecting with an industrial Ethernet
switch is applied in the field.
Bosch Rexroth AG
PROFINET IO
Multi-Ethernet Card
18/61
DOK-RCON0*-XFCX610*MUL-IT02-EN-P
