Group Index Value Example
F 0…9 0x50...0x59 F0: 0x50
H 0…9 0x60...0x69 H3: 0x63
Tab. 5-2: Parameter group mapping
An offset of 0x30 must be added on the parameter sub-index to form the record
index. For example, the record index of E0.26 Acceleration Time is:
0x3000 + 0x1A + 0x30 = 0x304A
5.4 Example
A simple program fragment example that utilizes the mapped I/Q addresses is
shown as below. The process data configuration is by defaults.

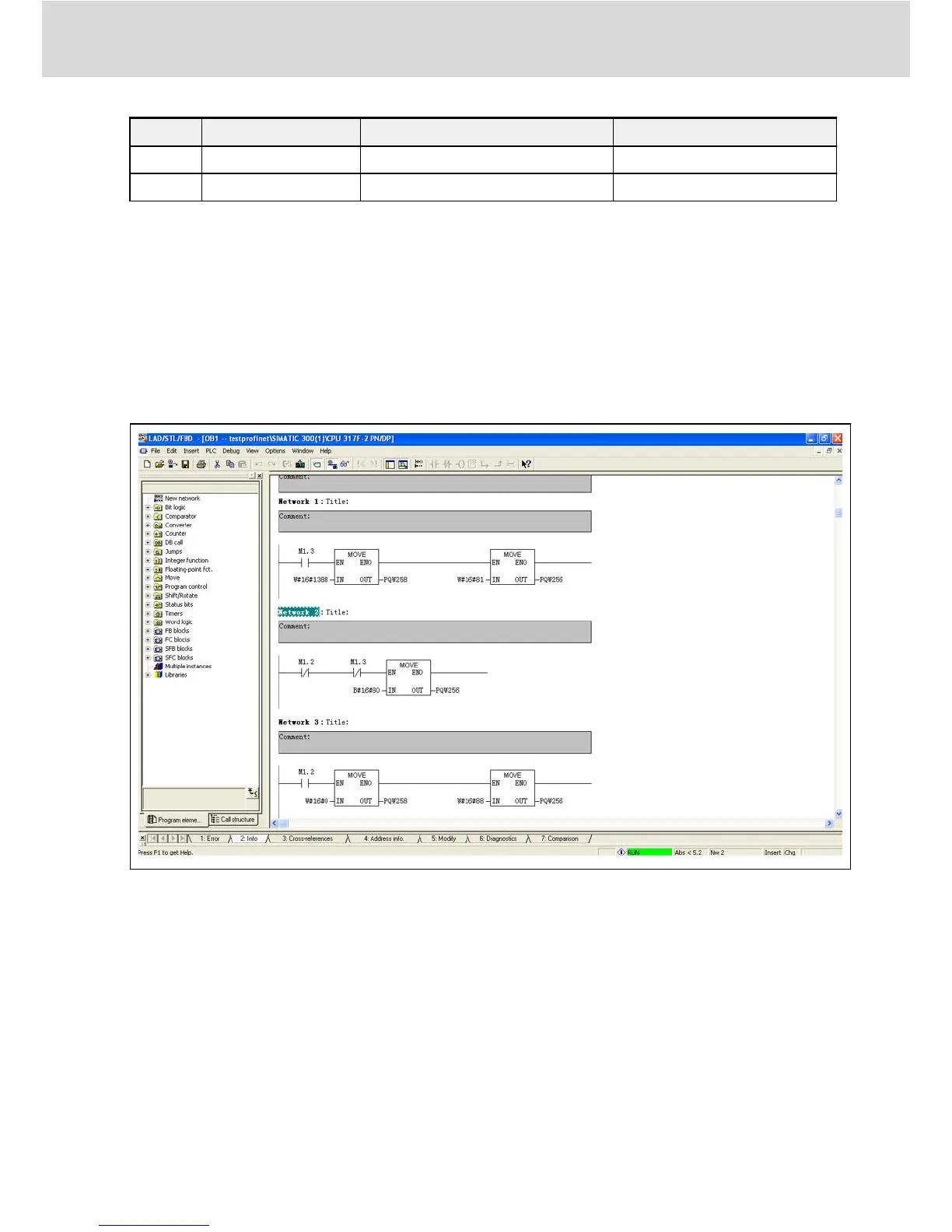

Fig. 5-6: Program example
Multi-Ethernet Card Bosch Rexroth AG
PROFINET IO
DOK-RCON0*-XFCX610*MUL-IT02-EN-P
21/61
