Two GSDML schema versions are supported. For configuration tools, which
don't support GSDML schema version 2.1, please use with version 2.0.
5.2.2 IO Device
In the configuration of project hardware, user can configure the EFC x610 as an
IO device in the PROFINET IO system. The Propertieswindow below shows the
key information of the IO device.

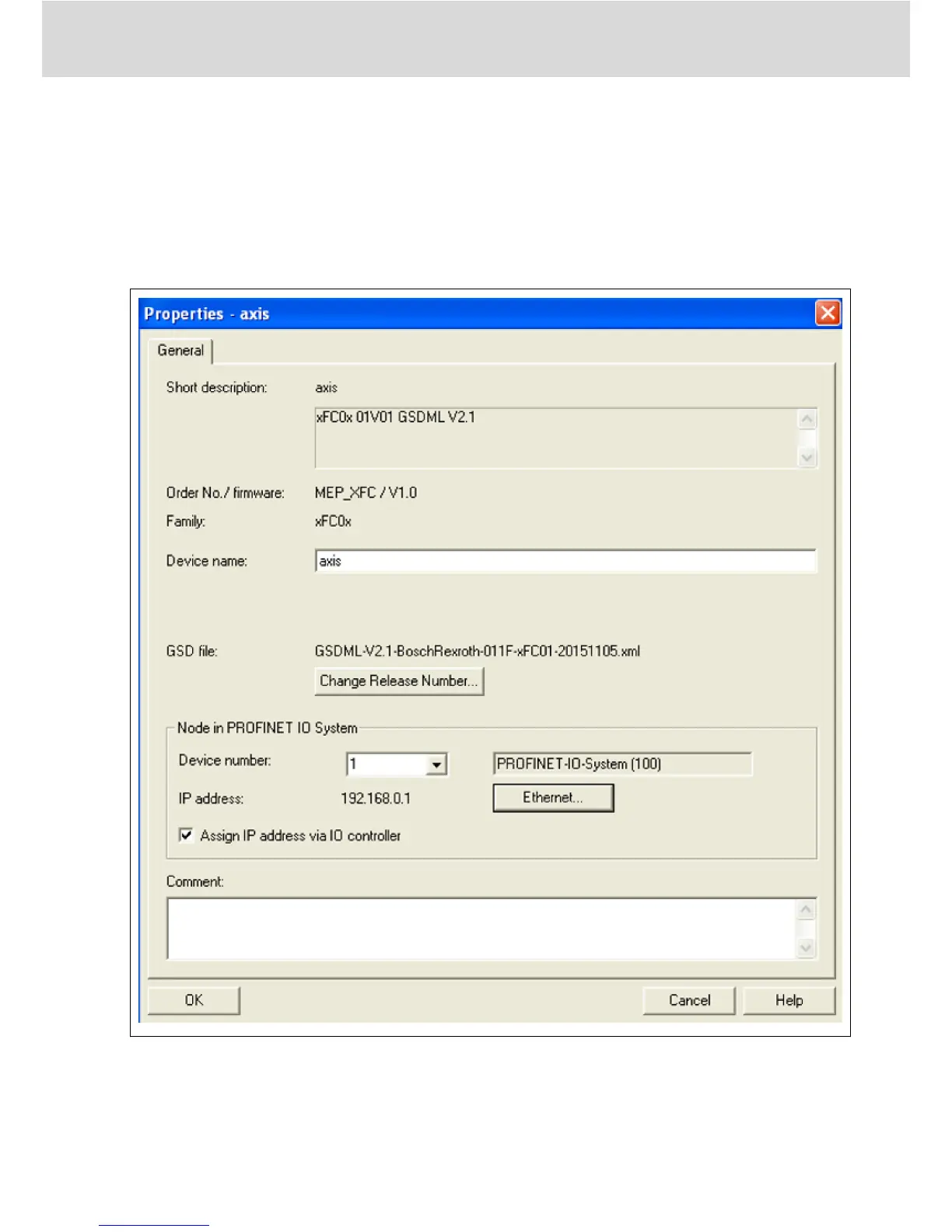

Fig. 5-2: IO device Properties window
The configured device name here must match the setting value of parameter
H3.20 MEP: Station Name (PROFINET).
Multi-Ethernet Card
Bosch Rexroth AG
PROFINET IO
DOK-RCON0*-XFCX610*MUL-IT02-EN-P
17/61
