6.4 Example
The following code fragment shows an example of explicit message: modifying
frequency converter parameter E0.26.

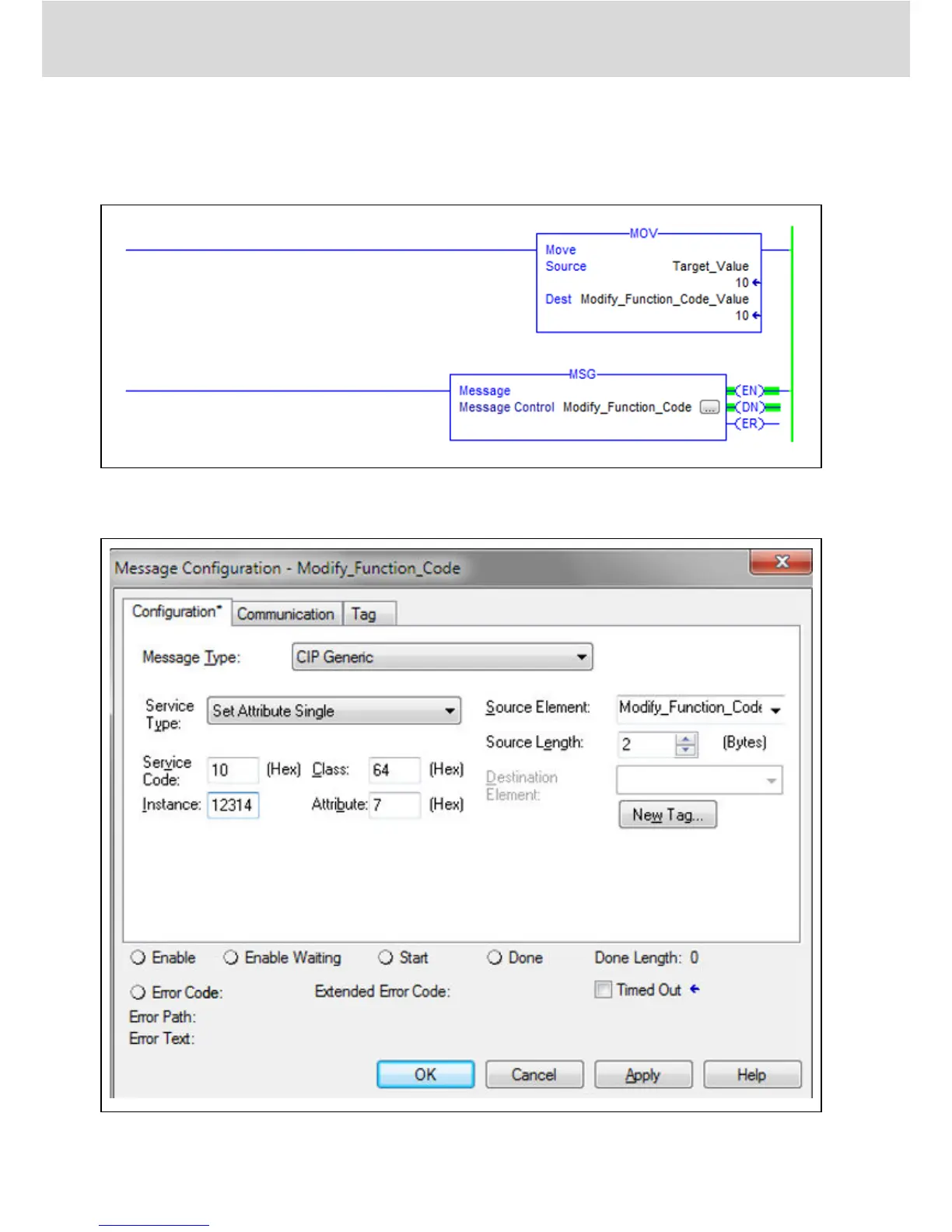

Fig. 6-10: Modify E0.26 to 1.0 s
The configuration of the message box:
Fig. 6-11: Message box configuration
Bosch Rexroth AG
EtherNet/IP
Multi-Ethernet Card
30/61
DOK-RCON0*-XFCX610*MUL-IT02-EN-P
