5.2.4 Process Data
The process data that are used for cyclic communication are configured via pa-
rameters H3.30 and H3.31.
The two parameters are list type that consist of parameter function codes. Fig-
ure below shows the default configurations.

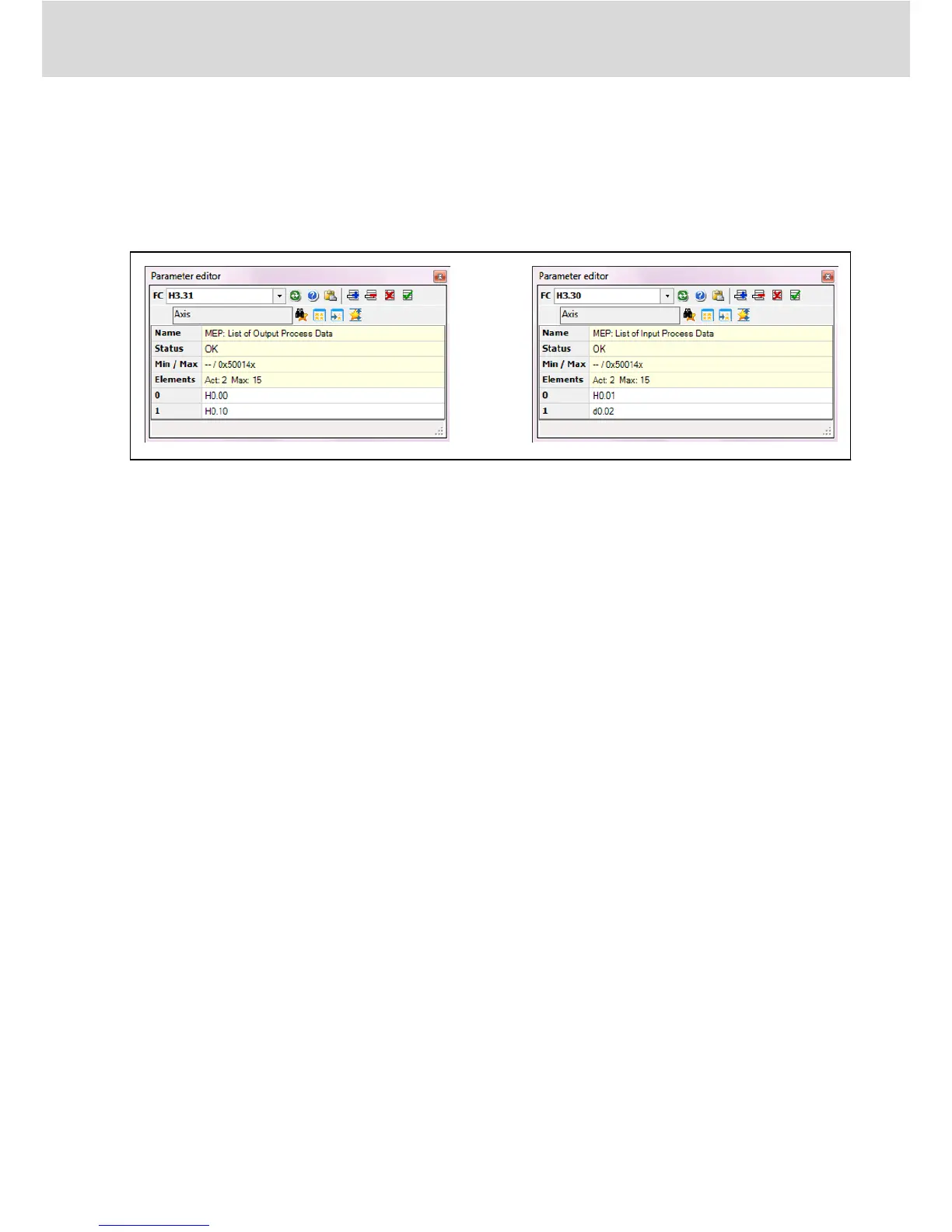

Fig. 5-4: Process data default configurations
Multi-Ethernet Card Bosch Rexroth AG
PROFINET IO
DOK-RCON0*-XFCX610*MUL-IT02-EN-P
19/61
