4 General Configuration
4.1 Protocol Selection
The parameter H3.40 is used to define the type of Industrial Ethernet protocol to
be used with MEP card. And parameter H3.41 indicates which industrial
Ethernet protocol is currently engaged. Once the request protocol is changed, a
cycle power or a reboot is needed to activate the selected protocol.
Code Name Setting range
H3.40 MEP: Industrial Ethernet Protocol Request
S3: SERCOS III
PN: PROFINET IO
EI: Ethernet/IP
EC: EtherCAT
MB: Modbus/TCP
H3.41 MEP: Industrial Ethernet Protocol Active Read-only
Tab. 4-1: Protocol selection parameters
The values of H3.40 and H3.41 are two characters representation that only ac-

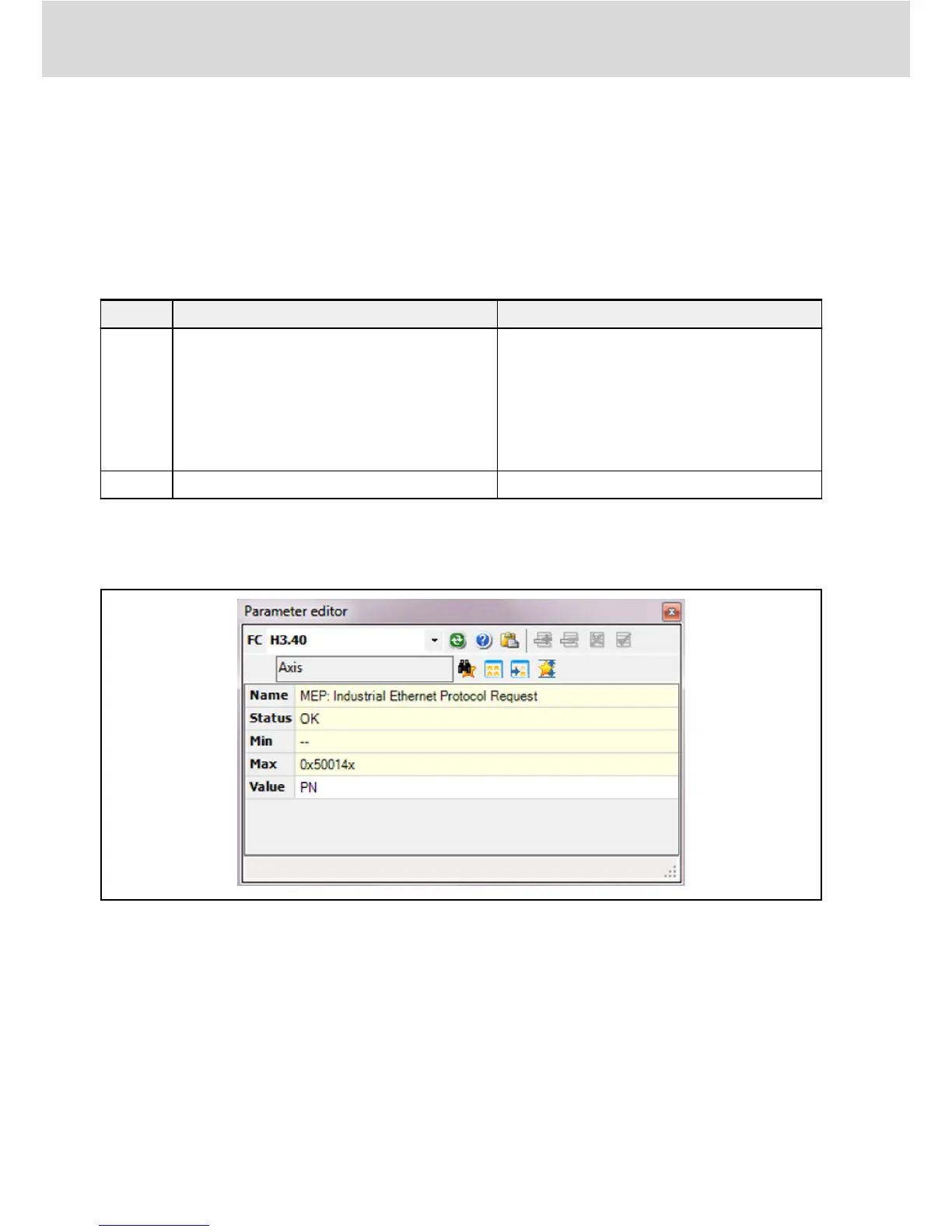

cepts upper case letter. Figure 4-1 gives an example of PROFINET IO request.
Fig. 4-1: Protocol request setting
Bosch Rexroth AG
General Configuration
Multi-Ethernet Card
8/61
DOK-RCON0*-XFCX610*MUL-IT02-EN-P
