REXROTH efc series - Hardware Installation; Hardware Description

3 Hardware Installation
3.1 Hardware Description

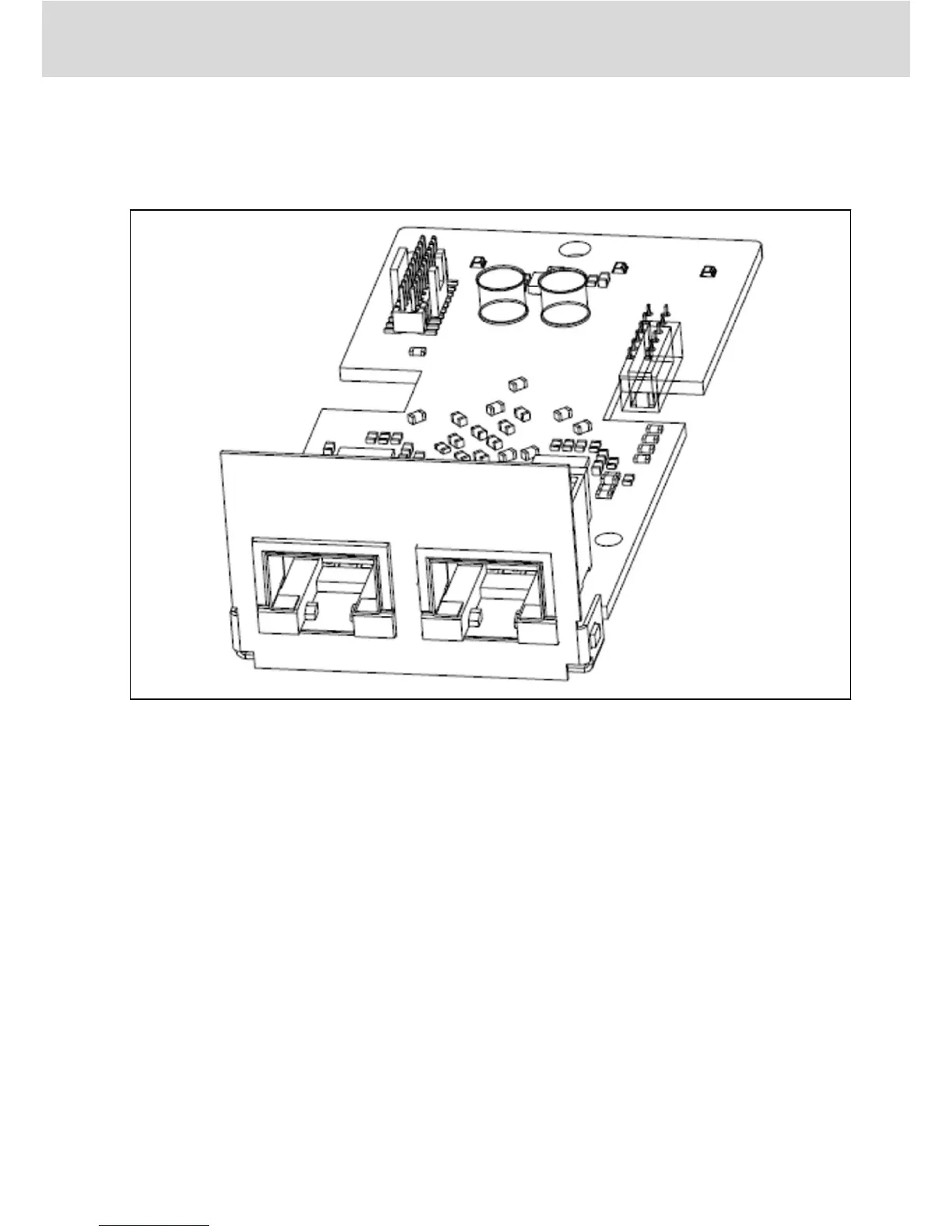

Fig. 3-1: Hardware illustration
The MEP extension card is provided with two shielded female RJ45 connectors.
Multi-Ethernet Card
Bosch Rexroth AG
Hardware Installation
DOK-RCON0*-XFCX610*MUL-IT02-EN-P
5/61
