Rexroth IndraDyn A Dimension Sheets 5-1
5 Dimension Sheets
5.1 Dimension Sheet for MAD100, without Brake
106-0425-3001-01.tif

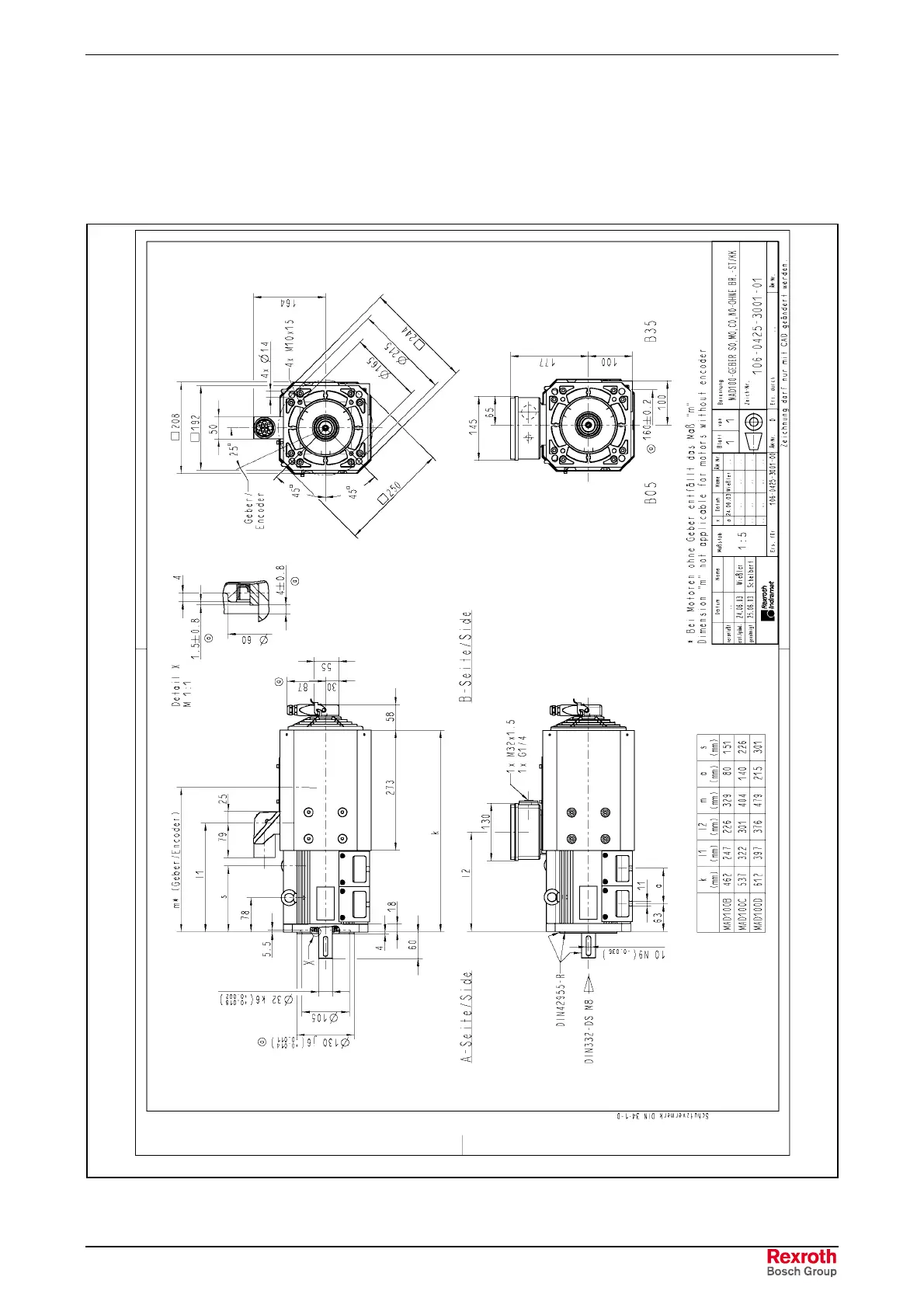

Fig. 5-1: Dimension sheet for MAD100, without brake
